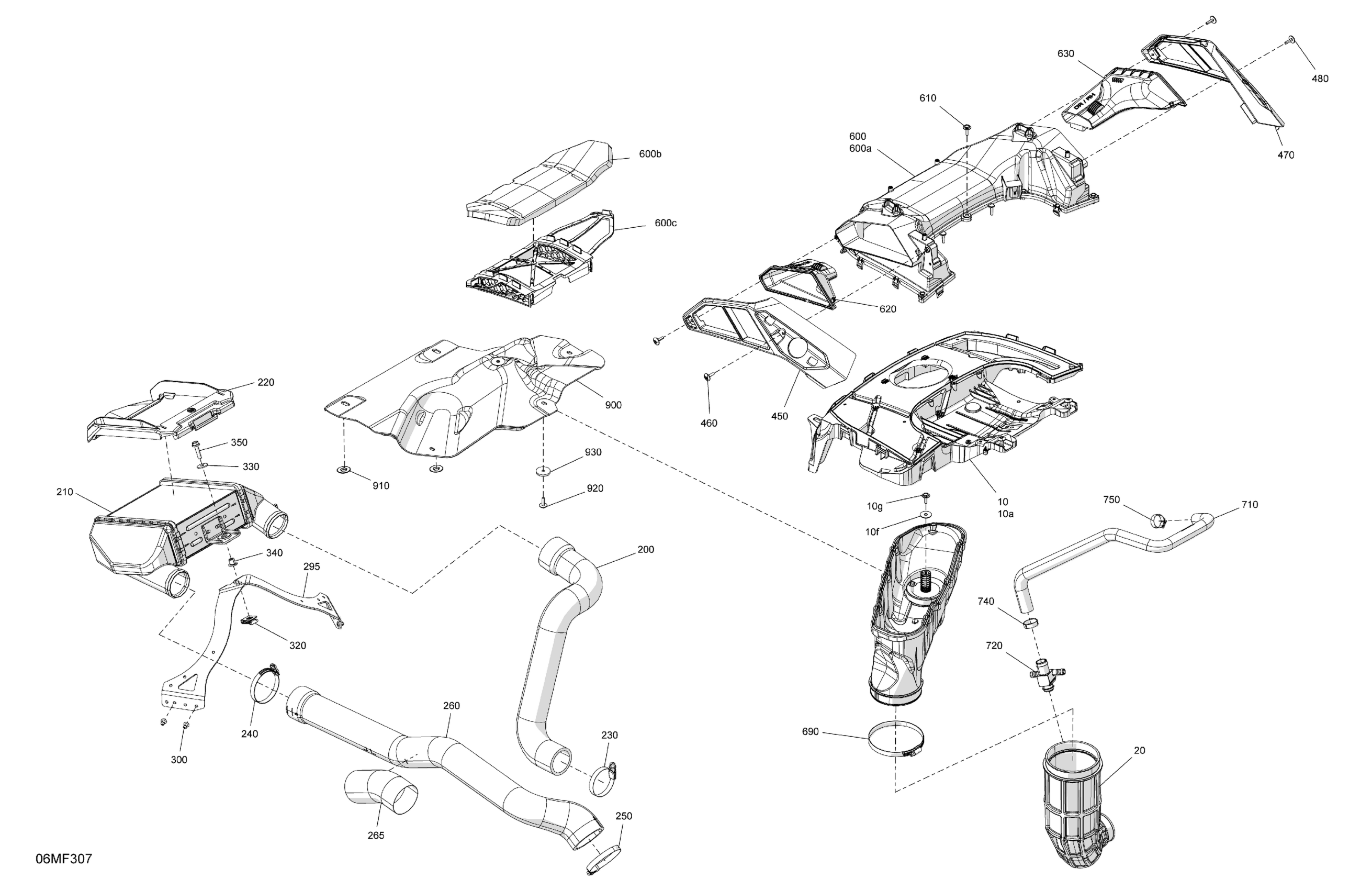

Ski-Doo Europe - EXPEDITION - SE - 900 ACE TURBO R - AYTG - Deep Black - 20X154X1.5ICSS Track, 2026 Engine - Air Intake Diagram

Description

Price

Molded Multi Purpose Plate Ass'y | Includes 10 to 10g

508001365

$179.97

10a

Molded Multi Purpose Plate

508001366

$39.97

10f

Flat Washer

224060201

$1.15

10g

Screw M4 X 16

250000725

$2.87

Intake Silencer

508001297

$51.51

200

Inlet Hose

508001319

$72.28

210

Intercooler

508001317

$419.99

220

Adapter

508001241

$19.20

230

Mounting Clamp

293650303

$3.68

240

Mounting Clamp

293650302

$3.79

250

Mounting Clamp

293650302

$3.79

260

Inlet Hose

508001318

$86.89

265

Protector Tube

508001033

$12.58

295

Rear Support

508001234

$36.12

300

Avex Rivet

390909100

$0.29

320

Panel Nut M6 X 1.0

250100208

$1.07

330

Flat Washer

250200082

$0.35

340

Bushing

293900151

$5.33

350

Hex. Flange Screw M6 X 25

207562544

$1.39

450

LH Air Filter

508001136

$32.28

460

Screw M4 X 16

250000889

$2.46

470

RH Air Filter

508001137

$40.74

480

Screw M4 X 16

250000889

$2.46

600

Upper Intake Silencer Duct Ass'y | Includes 600 to 600c

508001300

$64.58

600a

Upper Intake Silencer Duct

508001289

$46.89

600b

Acoustic Insulation

508001224

$13.52

600c

Foam Support

508001222

$36.89

610

Screw M4 X 16

250000725

$2.87

620

LH Upper Resonator

508001199

$13.65

630

RH Resonator

508001200

$13.65

690

Norma Clamp

514052924

$10.58

710

Vent Hose

508001272

$14.65

720

Molded Breather

508001278

$26.12

740

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

750

Tridon Gear Clamp

293650172

$2.68

900

Acoustic Panel

508001263

$46.12

910

Push Nut

508000853

$1.92

920

Screw M4 X 16

250000725

$2.87

930

Thermal Insulation

508001358

$1.82
