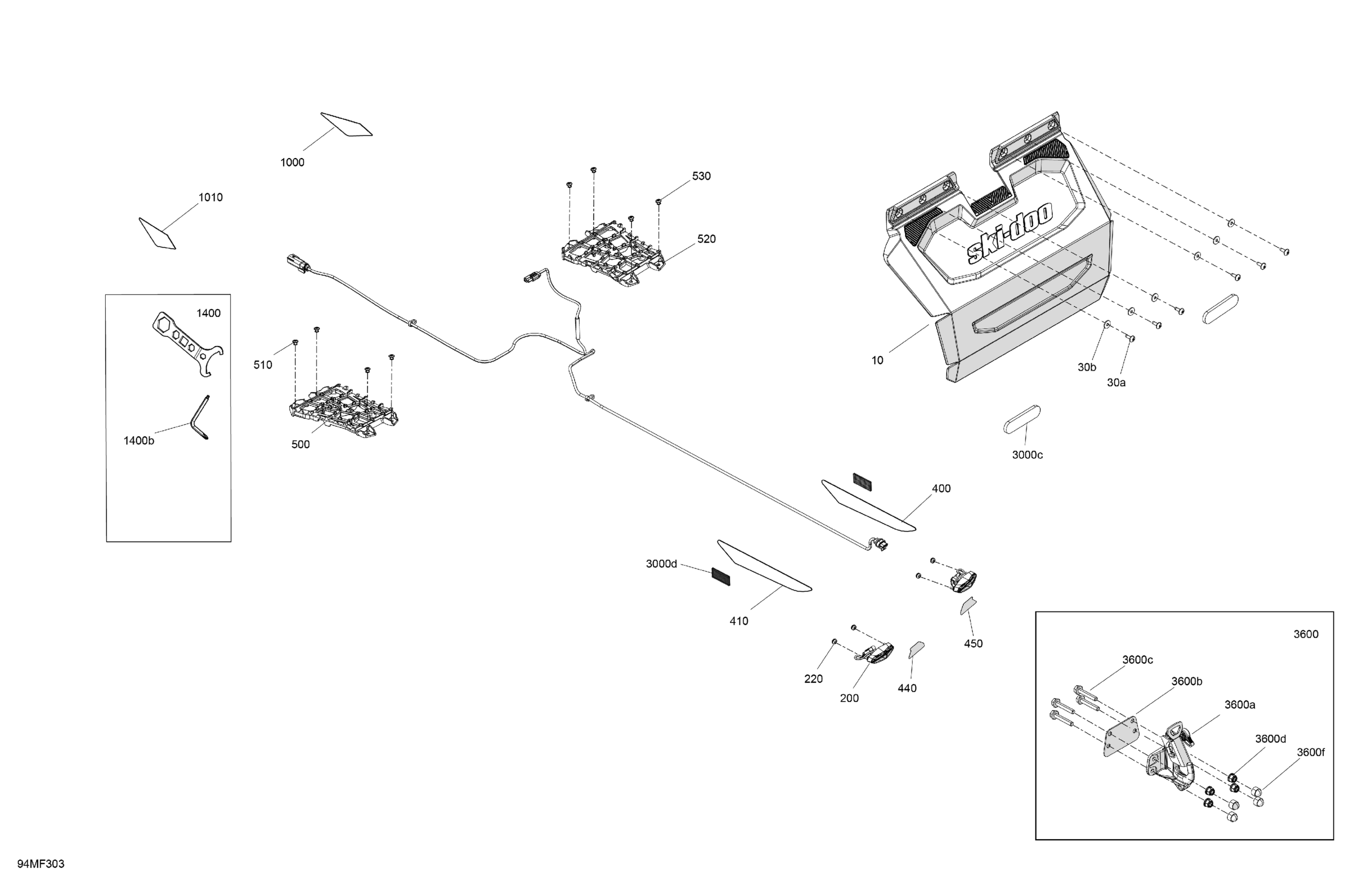

Ski-Doo Europe - EXPEDITION - LE - 900 ACE - AATD - Deep Black - 20X154X1.5CSS Track, 2026 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520001712

$106.99

30a

Forming Screw M5 x 16

250000676

$1.01

30b

Washer M5

250200025

$0.74

200

Taillight

520003071

$105.99

220

Grommet

293720101

$0.77

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

440

LH Rear Red Reflector

520001740

$4.99

450

RH Rear Red Reflector

520002016

$4.99

500

Passenger Footrest

520003338

$48.99

510

Black, Pop Rivet 3/16 X ,425

293150300

$0.72

520

Passenger Footrest

520003338

$48.99

530

Black, Pop Rivet 3/16 X ,425

293150300

$0.72

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3000c

Red, Reflector

705015551

$9.59

3000d

Amber, Reflector

520000271

$19.99

3600

J-Hitch Kit | Includes 3600 to 3600f

860202258

$98.99

3600a

Hitch Ass'y

520001826

$59.49

3600b

RH Chassis Reinforcement

511001560

$4.59

3600c

Hex. Flange Screw M8 X 45

207684544

$3.80

3600d

Hex. Flange Elastic Nut M8

233281414

$1.47

3600f

Cover | Model-T3

28056

$5.89
