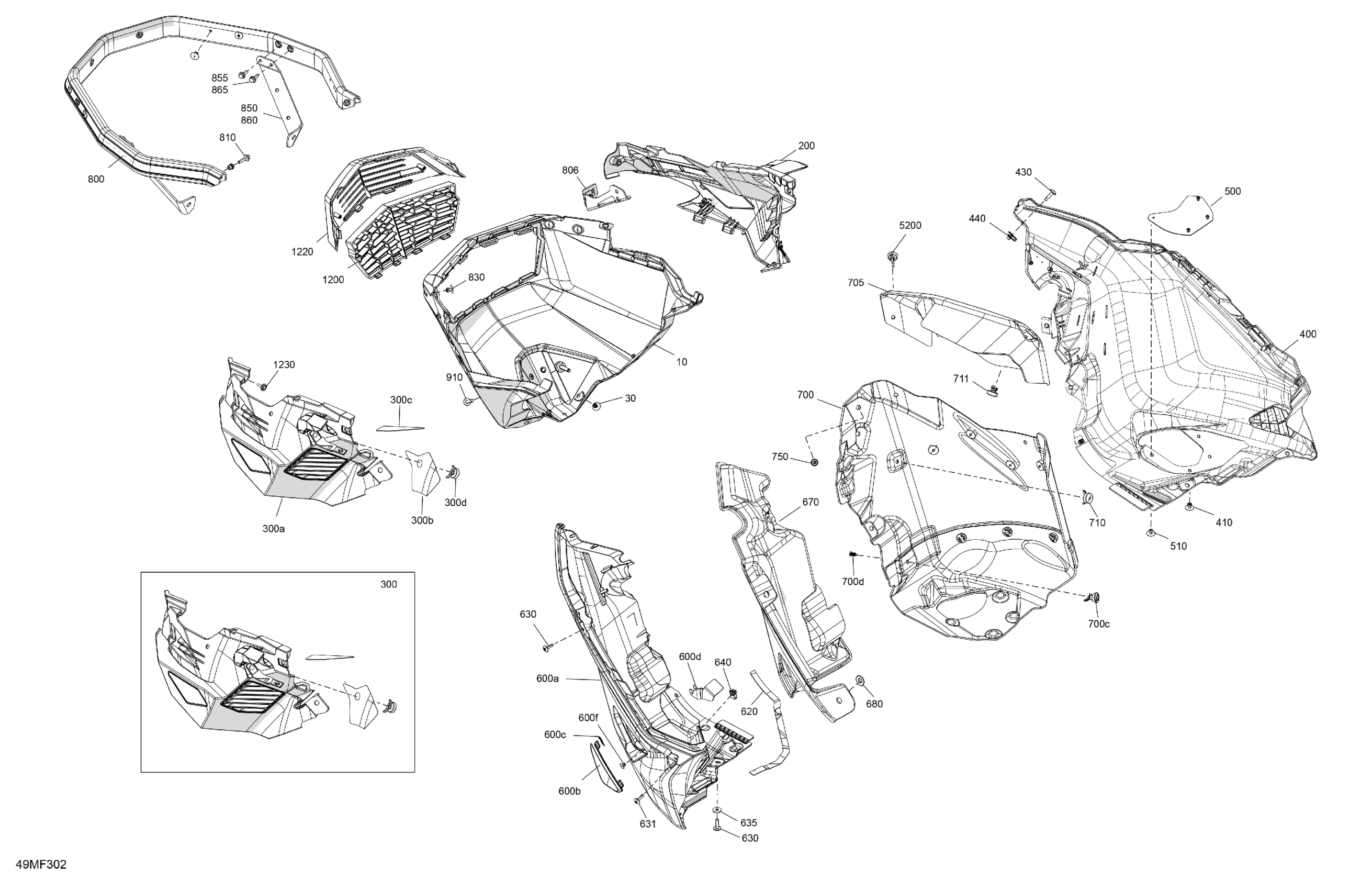

Ski-Doo Europe - EXPEDITION - LE - 900 ACE - AATC - Deep Black - 24X154X1.5CST Track, 2026 Body - Bottom Pan Diagram

Description

Price

Deep Black, Front Bottom Pan

502008645

$176.84

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

200

Deep Black, RH Bottom Pan Cap

502008264

$55.19

300

Deep Black, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008529

Unavailable

300a

Deep Black, LH Bottom Pan Cap

502008265

$55.19

300b

LH Front Heat Shield

502008487

$4.40

300c

LH Front Heat Shield

502008575

$4.03

300d

Stopper

502008752

$1.88

400

Deep Black, RH Bottom Pan

502008590

$85.79

410

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

430

Torx Truss M5 X 20

250000586

$4.15

440

Panel Nut M5 X 0.8

250000958

$4.00

500

Plate

502007868

$1.96

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

600a

Deep Black, LH Bottom Pan

502008515

$85.79

600b

Bottom Pan Door

502007676

$35.79

600c

Hairpin Cotter

269800431

$0.97

600d

Stopper

502008326

$32.81

600f

Pop Rivet 3/16"

293150103

$0.52

620

Gasket, Neoprene 2000Mm Long

219704476

$14.51

630

Screw Torx M5 X 20

250001232

$1.31

631

Torx Truss M5 X 20

250000586

$4.15

635

Washer M5

250200025

$0.70

640

Panel Nut M5 X 0.8

250000958

$4.00

670

LH Lower Acoustic Panel

502008683

$41.01

680

Push Nut

508000853

$1.87

700

RH Lower Acoustic Panel Ass'y | Includes 700 to 700d

502008741

$105.94

700c

Stopper

502008753

$1.78

700d

Dart

293730062

$1.87

705

Acoustic Panel

502008511

$308.93

710

Stopper

502008752

$1.88

711

Stopper

502008752

$1.88

750

Oval Head Torx Screw K60 X 16

250000546

$2.00

800

Deep Black, Front Bumper

502008831

$155.94

806

Horn Bracket

502008424

$17.13

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

830

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

850

RH Bumper Support

502008104

Unavailable

855

Hex. Flange Screw M6 X 16

207661644

$0.70

860

LH Bumper Support

502008105

Unavailable

865

Hex. Flange Screw M6 X 16

207661644

$0.70

910

Torx Screw M6 X 25

250000758

$2.00

1200

Lower Prefilter Grille

502007979

$26.09

1220

Upper Grille Prefilter

502008736

$26.84

1230

Screw M4 X 16

250000725

$3.30

5200

Stopper

502008753

$1.78
