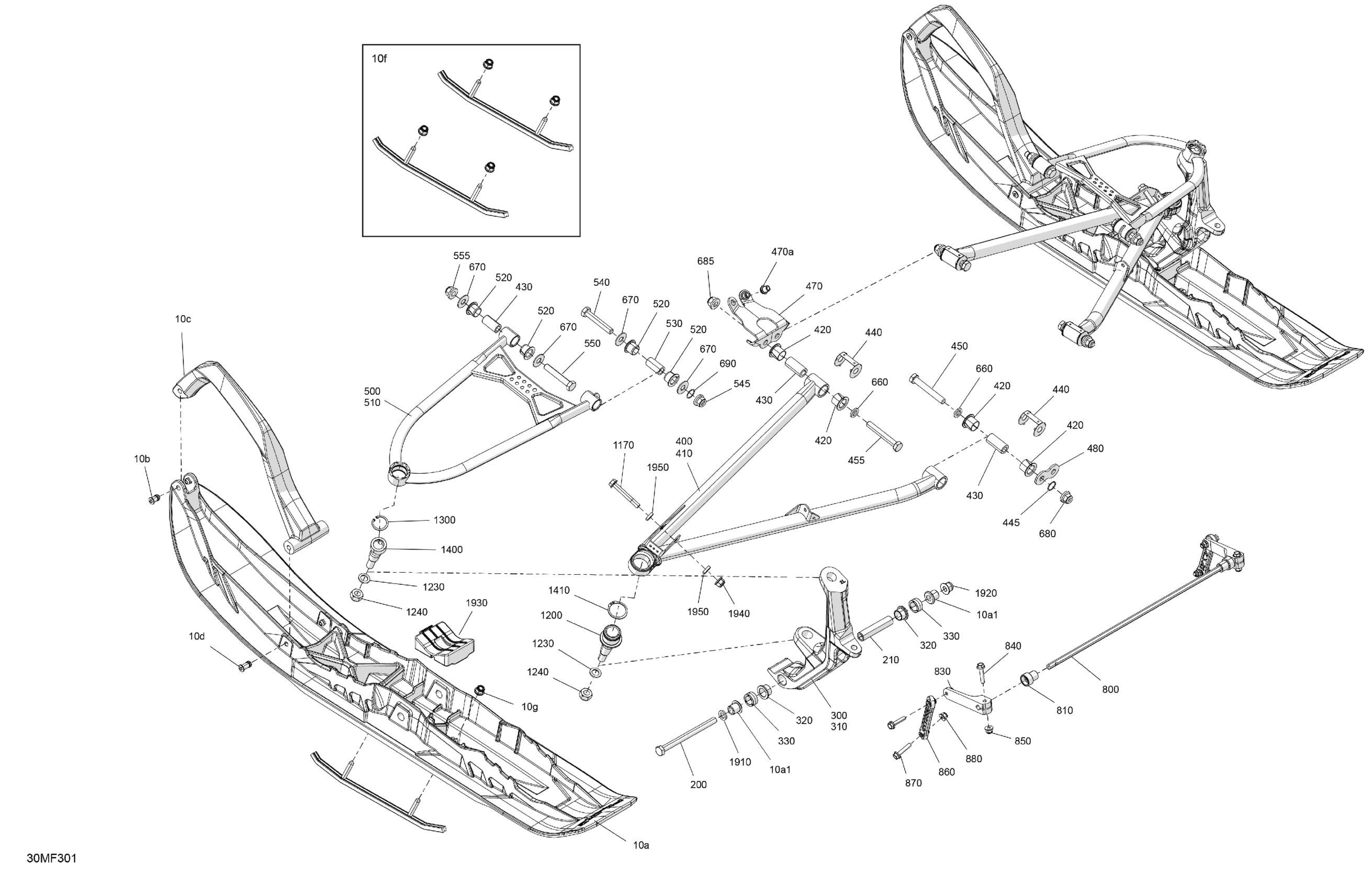

Ski-Doo Europe - EXPEDITION - LE - 900 ACE - AATC - Deep Black - 24X154X1.5CST Track, 2026 Suspension - Front Diagram

Description

Price

10a

Deep Black, Ski Pilot 7.4 | Includes 10a to 10a1

505074736

$186.49

10a1

Ski Bushing

505071781

$16.18

10b

Rivet Ski Handle Short

505075902

$5.95

10c

Black, Handle

505072976

$35.99

10d

Rivet Ski Handle Long

505075906

$6.78

10f

Carbide Runner Square Kit This part replaces 860202518.

860203079

$95.99

10g

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Ski Axle

505073691

$14.22

300

Deep Black, LH Ski Leg +2

505076078

$234.99

310

Deep Black, RH Ski Leg +2

505076079

$234.99

320

Leg Bushing

505072690

$12.49

330

Spacer

505074949

$2.19

400

LH Lower Arm 39

505075152

$204.99

410

RH Lower Arm 39

505075153

$204.99

420

Bushing

505072208

$3.28

430

Bushing

505075323

$4.02

440

Wear Plate

505072634

$6.29

445

O-Ring

505072448

$2.32

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

470

Wear Plate | Includes 470 to 470a

505074320

$15.99

470a

Insert

293450275

$12.99

480

Plate

505073844

$2.29

500

LH Upper Suspension Arm 39 T

505075103

$154.99

510

RH Upper Suspension Arm 39 T

505075104

$154.99

520

Bushing

505072250

$3.28

530

Bushing

505075322

$4.02

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 60

250001023

$2.11

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

800

Black, Stabilizer Bar

505075686

$65.99

810

Bushing

505072064

$2.32

830

Stabilisator Lever

505073731

$18.49

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

850

Hex. Flange Elastic Nut M6

233261466

$2.00

860

Sway Bar Double Joint Link

505072204

$21.99

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

880

Hex. Flange Elastic Nut M6

233261466

$2.00

1170

Hex. Flange Screw M8 X 58

250000824

$2.11

1200

Ball Joint

505074133

$53.99

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1300

Circlip

293370070

$8.99

1400

Upper Ball Joint

505072913

$72.99

1410

Snap Ring

293370098

$3.17

1910

Washer

503192496

$0.77

1920

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

1930

Ski Stopper

505072594

$18.49

1940

Elastic Flange Nut M8

233281466

$1.01

1950

Spacer

505073892

$2.29
