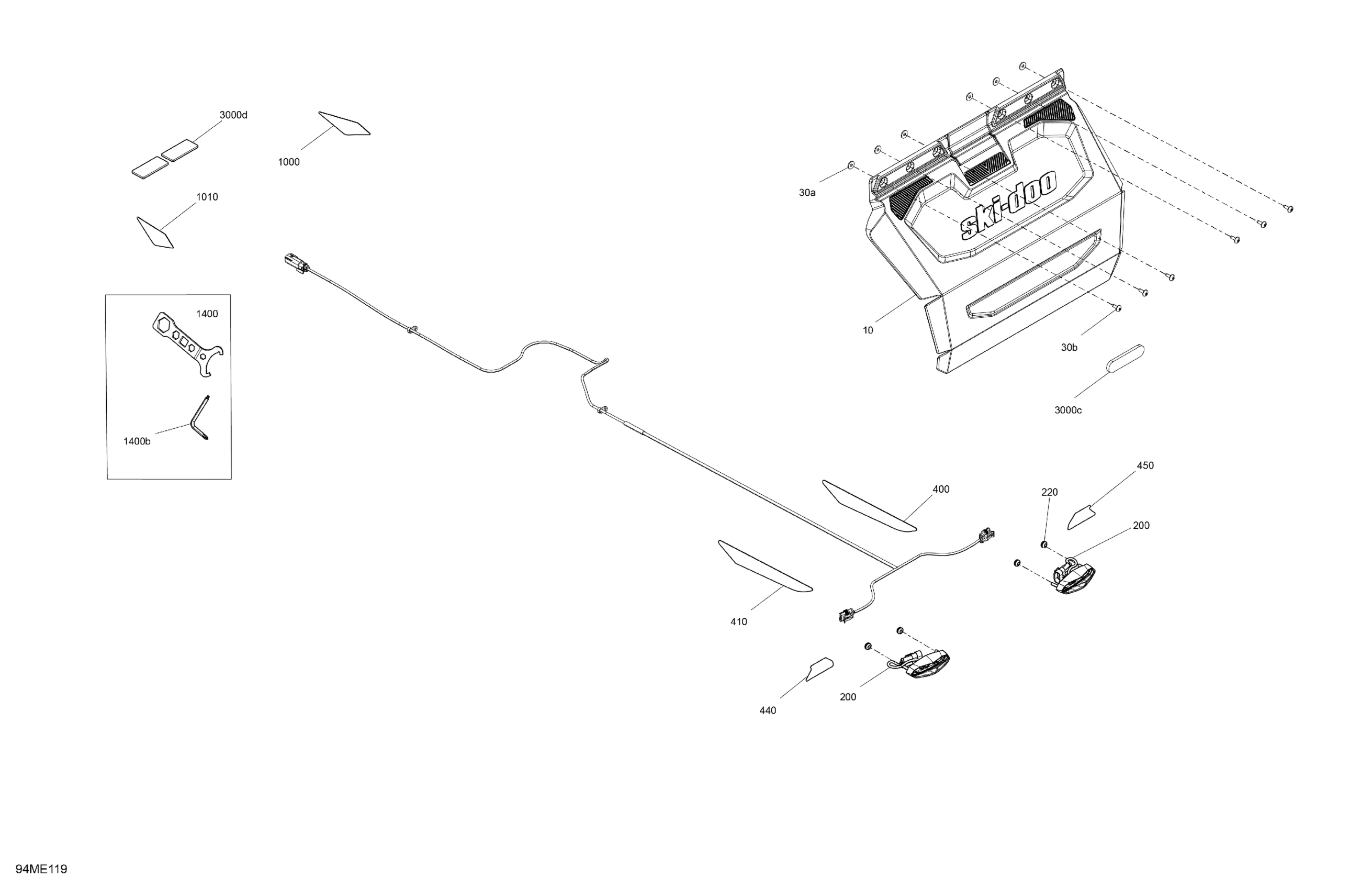

Ski-Doo Europe - EXPEDITION - 900 ACE TURBO R - Xtreme - APSC - Flare Yellow HG - 154X20X1.8CST8 Track - 2025 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520002056

$106.99

30a

Washer M5

250200025

$0.74

30b

Forming Screw M5 x 16

250000676

$1.01

200

Taillight

520003071

$105.99

220

Grommet

293720101

$0.77

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

440

LH Rear Red Reflector

520001740

$4.99

450

RH Rear Red Reflector

520002016

$4.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3000c

Red, Reflector

705015551

$9.59

3000d

Amber, Reflector

520002680

$20.99
