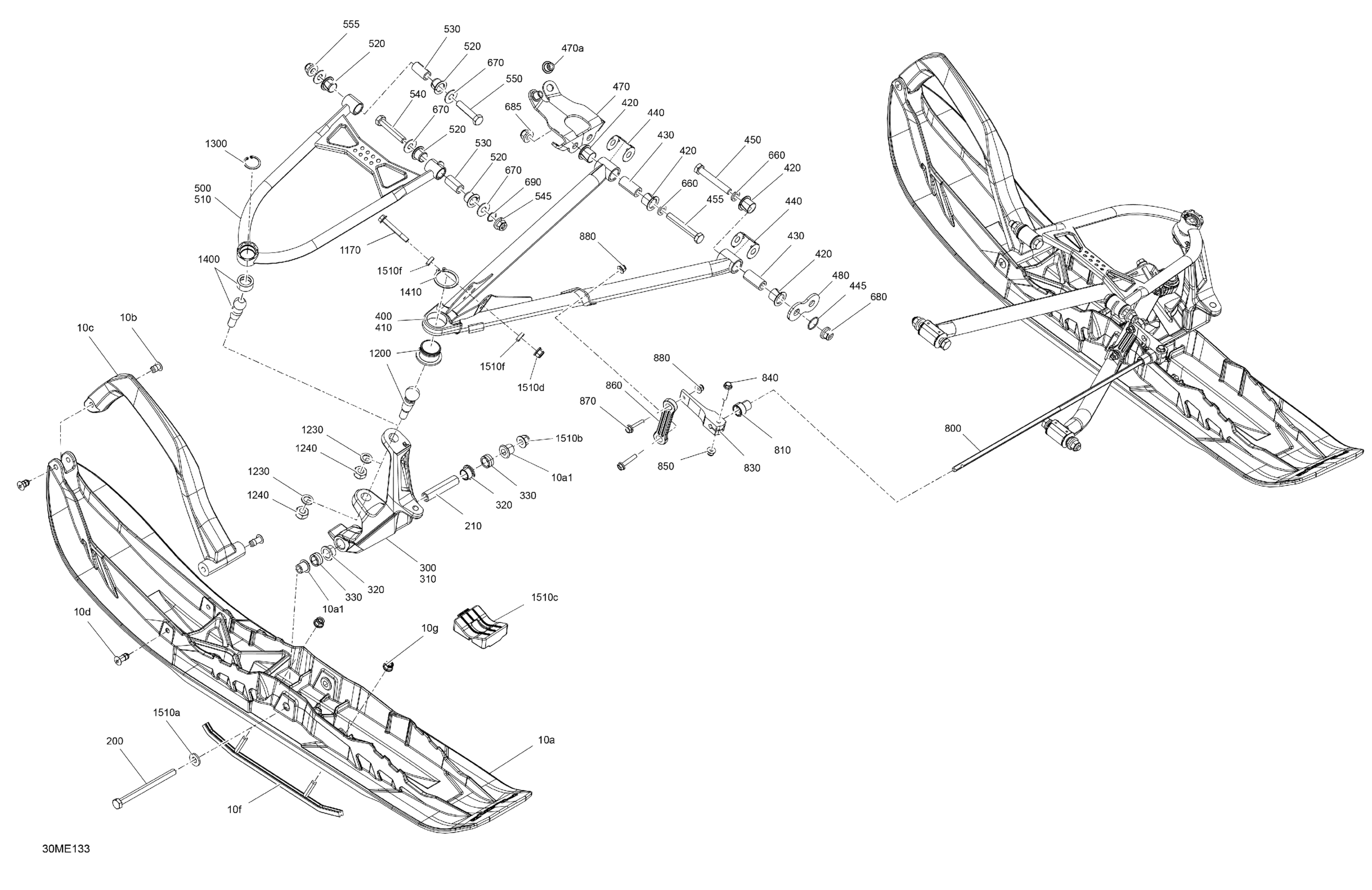

Ski-Doo Europe - EXPEDITION - 900 ACE TURBO R - SE - AYSH - Dusty Navy Satin - 154X20X1.5ICST Track - 2025 Suspension - Front Diagram

Description

Price

10a

Deep Black, Ski Pilot 7.4 | Includes 10a to 10a1

505074736

$189.99

10a1

Ski Bushing

505071781

$15.35

10b

Retainer 17mm long

505071812

$4.43

10c

Dusty Navy, Ski Handle

505075811

$34.58

10d

Retainer 23mm Long

505072133

$5.03

10f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

10g

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Ski Axle

505073691

$12.58

300

Liquid Titan, LH Ski Leg +6

505075248

$264.58

310

Liquid TItan, RH Ski Leg +6

505075249

$264.58

320

Leg Bushing

505072690

Unavailable

330

Spacer

505074949

$2.03

400

LH Lower Arm 39

505075152

$193.82

410

RH Lower Arm 39

505075153

$193.82

420

Bushing

505072208

$3.14

430

Bushing

505075323

$3.82

440

Wear Plate

505072634

$4.45

445

O-Ring

505072448

Unavailable

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

470

Wear Plate | Includes 470 to 470a

505074320

$13.80

470a

Insert

293450275

$9.89

480

Plate

505073844

$2.75

500

LH Upper Suspension Arm 39 T

505075103

$143.05

510

RH Upper Suspension Arm 39 T

505075104

$143.05

520

Bushing

505072250

$3.14

530

Bushing

505075322

$3.82

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

800

Black, Stabilizer Bar

505075686

$67.99

810

Bushing

505072064

$2.22

830

Stabilisator Lever

505073731

$15.35

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$19.20

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1170

Hex. Flange Screw M8 X 58

250000824

$1.74

1200

Ball Joint

505074133

$51.51

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$7.02

1400

Upper Ball Joint

505072913

$69.97

1410

Snap Ring

293370098

$3.11

1510a

Washer

503192496

$0.75

1510b

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

1510c

Ski Stopper

505072594

$17.66

1510d

Elastic Flange Nut M8

233281466

$0.83

1510f

Spacer

505073892

$2.17
