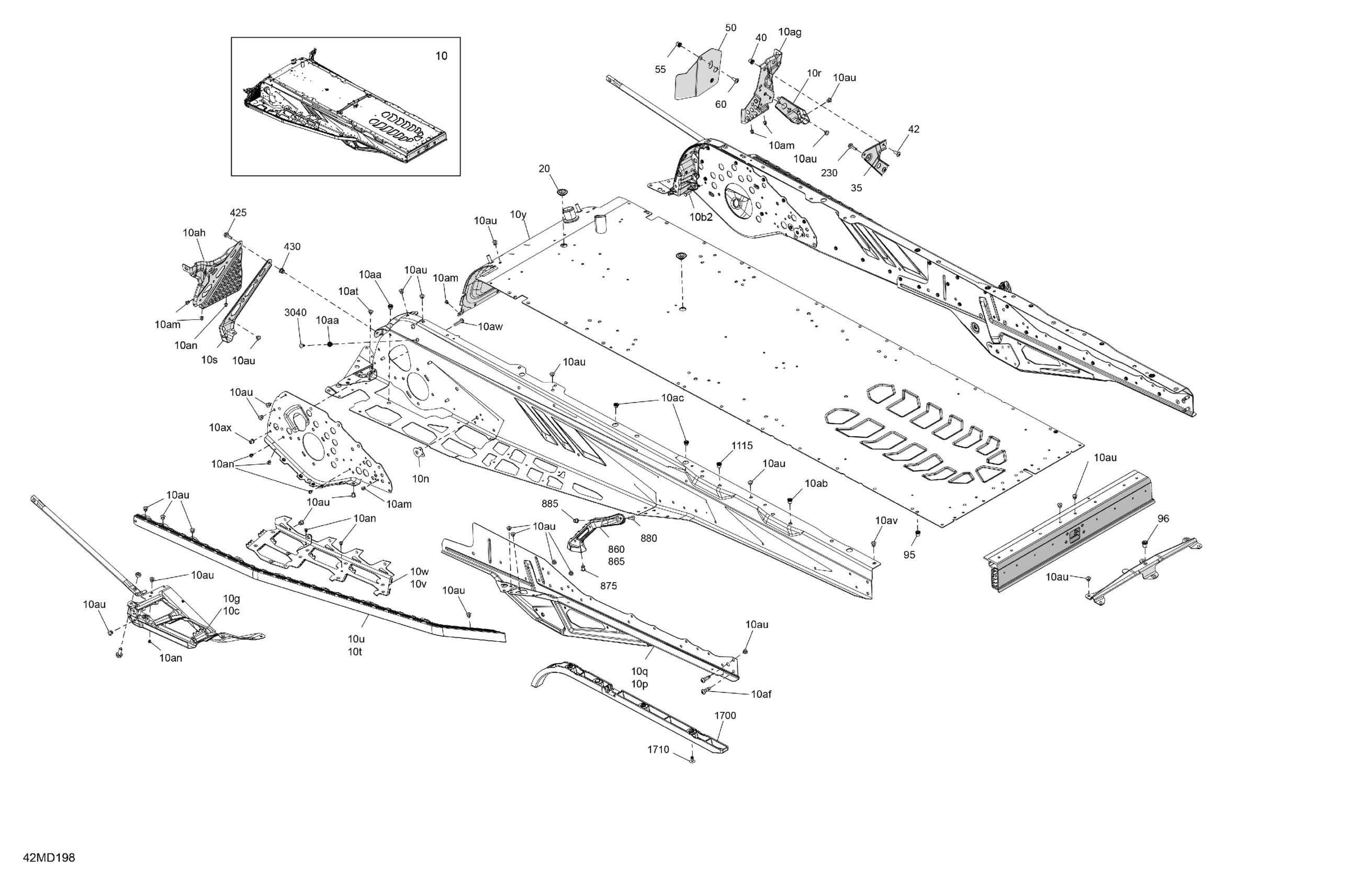

Ski-Doo Europe - EXPEDITION 900 ACE Turbo R - SE - AYRN - Deep Black - 154X20X1.5CST Track, 2024 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10ax

415130750

$3,392.28

10b2

Clinch Stud M6 X 20

250300027

$1.92

10c

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10g

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10n

Front Suspension Arm Reinforcement

518335959

$3.85

10p

RH Rear Suspension Support

518333792

$102.28

10q

LH Rear Suspension Support

518333791

$102.28

10r

RH Footrest Reinforcement

518329789

$18.43

10s

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10t

RH Roller

518329648

$180.74

10u

LH Roller

518328452

$180.74

10v

Central Rear Tunnel Reinforcement

518334842

$33.05

10w

LH Central Reinforcement Tunnel

518334843

$33.05

10y

Radiator Tunnel Ass'y 154

518332622

$693.05

10aa

Clinch Nut M6 Hexsert

605636003

$4.12

10ab

Insert

293450275

$9.89

10ac

Clinch Nut M6 Hexsert

605636003

$4.12

10af

Torx Button Head Screw M8 X 25

250001151

$1.91

10ag

RH Footrest

518331822

$23.05

10ah

LH Footrest

518332978

$40.74

10am

Avex Rivet

390909100

$0.29

10an

Avex Rivet

390909200

$0.29

10at

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10au

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10av

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10aw

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

10ax

Collar Huck Magna-Grip 6.4

293150149

$0.37

Black, Plug

293730052

$6.37

RH Stirrup Reinforcement

518331727

$18.43

Insert

293450275

$9.89

Torx Head Screw M6 X 16

250000717

$1.74

Heat Shield

518331823

$7.42

Insert

293450275

$9.89

Torx Head Screw M6 X 16

250000717

$1.74

Insert

293450275

$9.89

Insert

293450275

$9.89

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

860

Deep Black LH Rear Footrest Reinforcement

518330858

$16.89

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$16.89

875

Rivet Ornit 6,5 X 16.5

293150267

$1.94

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

885

Collar Huck Magna-Grip 6.4

293150149

$0.37

1115

Insert

293450275

$9.89

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92
