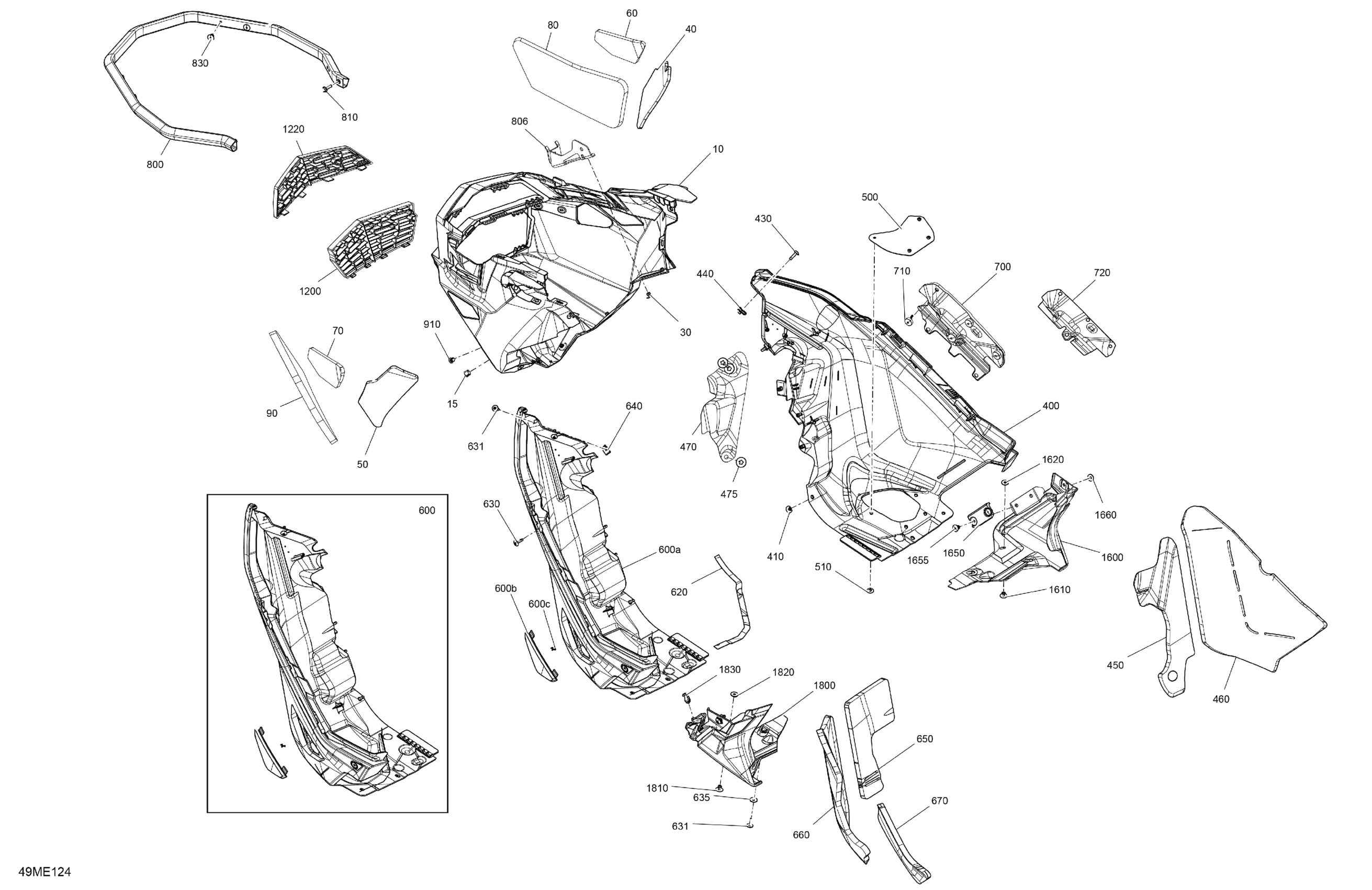

Ski-Doo Europe - EXPEDITION - 900 ACE - SPORT - KDSC - Neo Yellow - 154X16X1.5CH Track - 2025 Body - Bottom Pan Diagram

Description

Price

Front Bottom Pan

502008638

$184.99

Plug

502008550

$2.49

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

RH Upper Bottom Pan Foam

502007788

$18.99

LH Upper Bottom Pan Foam

502007789

$18.99

RH Front Central Bottom Pan Foam

502008308

$9.59

LH Front Central Bottom Pan Foam

502008309

$13.99

Bonded Foam

502008355

$19.49

Bonded Foam

502008356

$7.89

400

Deep Black, RH Bottom Pan

502008663

$139.99

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Front Bottom Pan Foam

502007831

$11.99

460

RH Rear Bottom Pan Foam

502008170

$16.49

470

Heat Shield

502007895

$19.99

475

Push Nut

508000853

$2.09

500

Plate

502007868

$2.19

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

600

Deep Black, LH Bottom Pan Ass'y | Includes 600 to 600c

502008507

$134.99

600a

Deep Black, LH Bottom Pan

502008512

$99.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

LH Front Bottom Pan Foam

502008334

$11.99

670

LH Rear Bottom Pan Foam

502008173

$2.29

700

Heat Shield

502008087

$7.09

710

Stopper

502008752

$2.09

720

Reflective Sheet

502008156

$4.79

800

Front Bumper

502007754

$174.49

806

Horn Bracket

502008380

Unavailable

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

910

Panel Fastener

518321954

$7.69

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

1600

RH Bottom Pan Panel

502007871

$56.99

1610

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1620

Washer

517124300

$0.19

1650

Stopper

502007757

$4.69

1655

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1660

Washer

517124300

$0.19

1800

LH Panel

502007872

$56.99

1810

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1820

Washer

517124300

$0.19

1830

Tuflok Plastic Rivet

293150230

$1.47
