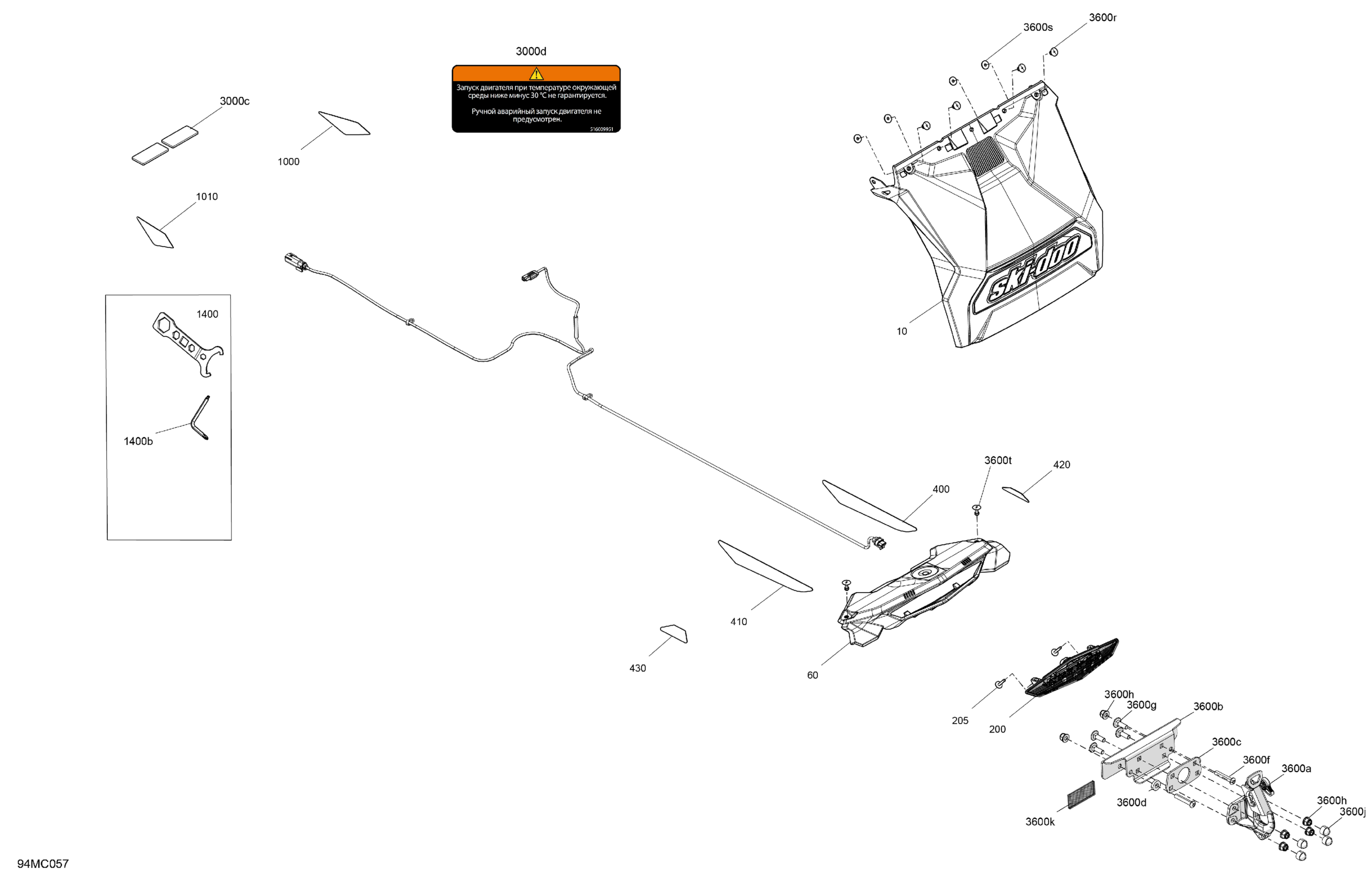

Ski-Doo Europe - EXPEDITION 900 ACE - SPORT - KDRB - Neo Yellow - 154X16X1.5CH Track, 2024 Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001863

$137.49

Light Fairing

520001487

$20.99

200

Tail Light

520002710

$78.49

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

420

Amber, LH Rear Reflector

520001862

$4.99

430

Amber, LH Rear Reflector

520001861

$4.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3000c

Amber, Reflector

520002680

$20.99

3000d

Warning Decal, Security

516009951

Unavailable

3600a

Hitch Ass'y

520001826

$59.49

3600b

Hitch Support

520001632

Unavailable

3600c

Hitch Fastening Plate

520001243

Unavailable

3600d

Sleeve

520001288

Unavailable

3600f

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

3600g

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

3600h

Hex. Flange Elastic Nut M8

233281414

$1.47

3600j

Cover | Model-T3

28056

$5.89

3600k

Red Reflector

520001820

$20.99

3600n

Packing Density BRP.COM | Not Shown

293740040

Unavailable

3600r

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3600s

Washer

517124300

$0.19

3600t

Pop Rivet 3/16"

293150100

$1.09
