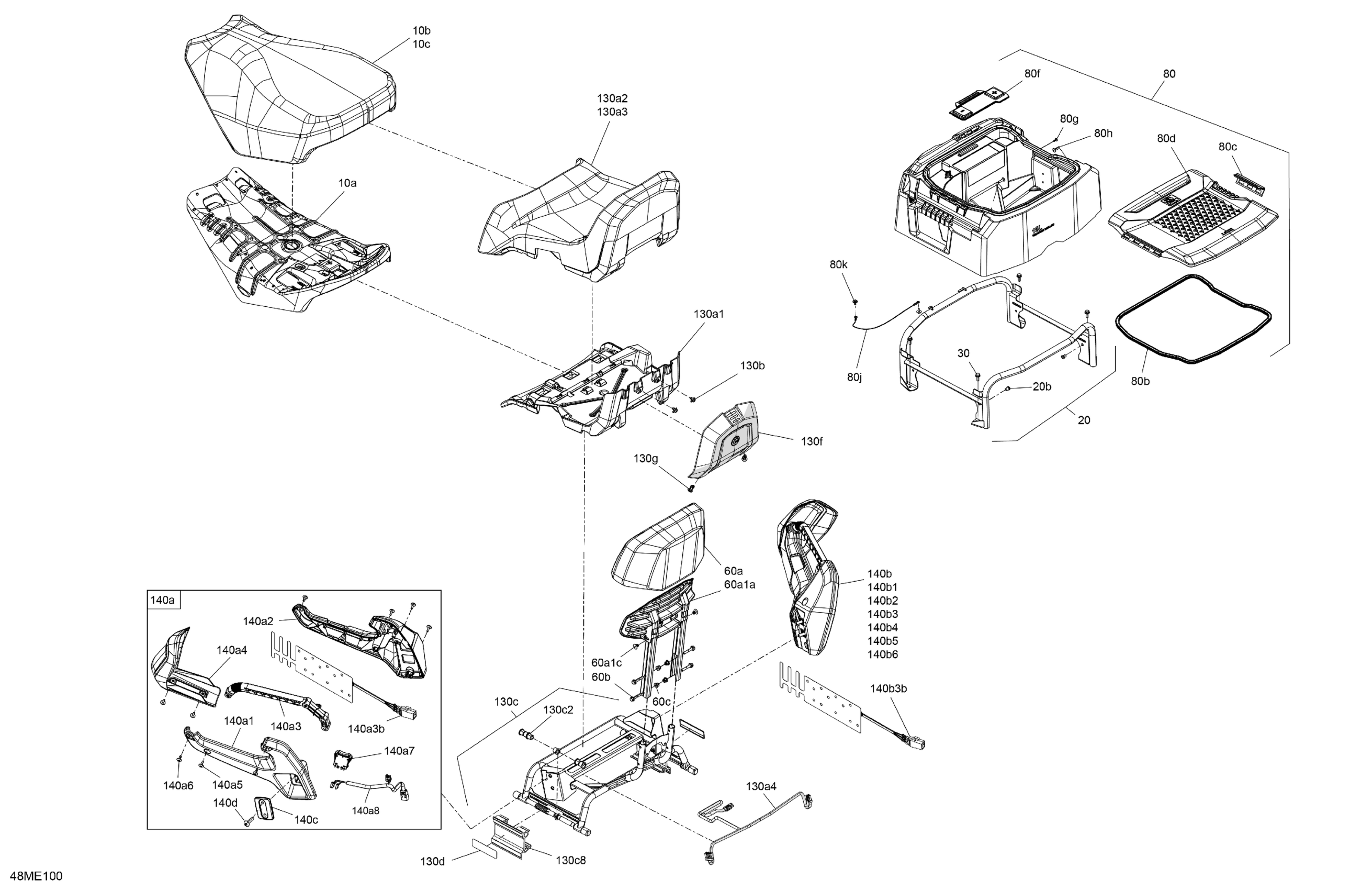

Ski-Doo Europe - EXPEDITION - 900 ACE - LE - AASA - Deep Black - 154X20X1.5CST Track - 2025 Body - Seat Diagram

#

Description
Price

10a

Driver Seat Base

510007355

$66.39

10b

Driver Seat Foam

510007168

$339.99

10c

Driver Seat Cover

510007620

$194.99

20

Seat Support Ass'y | Includes 20 to 20b

510007010

$88.99

20b

Insert M5 X 0.8

293450268

$1.90

30

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

60a

Passenger Backrest | Includes 60a to 60a1c

510008015

Unavailable

60a1a

Backrest Support

510007000

Unavailable

60a1c

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

60b

Hex. Flange Screw M6 X 35

207663544

$0.85

60c

Elastic Flange Nut M6 X 1.0

233261416

$2.00

80

Storage Box Ass'y | Includes 80 to 80k

510007166

$298.48

80b

Seal, 1PC = 3M

293830188

$36.54

80c

Latch

269502449

$3.99

80d

Box Cover

511001274

$36.54

80f

Access Cover

510006789

$7.58

80g

Torx-Truss Screw K40 X 10

250001034

$0.93

80h

Torx Screw M5 X 20

250000724

$1.60

80j

Retaining Cable

293750092

$9.66

80k

Plastite Screw M4 X 10

250000805

$2.00

130a1

Passender Seat Base

510006885

$66.39

130a2

Passenger Seat Foam

510007172

Unavailable

130a3

Passenger Seat Cover

510007634

$194.99

130a4

Seat wiring Harness

515178588

$50.72

130b

Avdel Rivet

293150027

$2.30

130c

Passenger Chassis Module Ass'y | Includes 130c to 130c8

510007155

$382.81

130c2

Cushion

506152520

$12.00

130c8

Seat Latch

510006994

$16.39

130d

Warning Label

516009911

Unavailable

130f

Rear Seat Trim

510007867

$11.84

130g

Tuflok Plastic Rivet

293150230

$1.39

140a

LH Passenger Heated Hand Hold Ass'y | Includes 140a to 140a8

510006526

$296.99

140a1

LH Ext. Passenger Hand Hold

510006492

$64.15

140a2

LH Int. Passenger Hand Hold

510006527

$64.15

140a3

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$97.73

140a3b

Heated Element

515178576

Unavailable

140a4

LH Passenger Handle Deflector

510006495

$26.84

140a5

Screw M4 X 16

250000889

$2.82

140a6

Torx-Truss M/S M5 X 14

250000941

$2.00

140a7

Rocker Switch

515178505

$26.09

140a8

Heated Grip Wiring Harness

515178464

$26.84

140b

RH Heated Passenger Hand Hold Ass'y | Includes 140b to 140b6

510006485

$296.99

140b1

RH Ext. Passenger Hand Hold

510006486

$64.15

140b2

RH Int. Passenger Hand Hold

510006487

$64.15

140b3

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$97.73

140b3b

Heated Element

515178576

Unavailable

140b4

RH Passenger Handle Deflector

510006489

$26.84

140b5

Screw M4 X 16

250000889

$2.82

140b6

Torx-Truss M/S M5 X 14

250000941

$2.00

140c

Passenger Handle Trim

510006602

$11.36

140d

Torx Truss M/S M8 x 35

250000753

$1.04
