Description

Price

10

Front Bottom Pan

502008638

$184.99

15

Plug

502008550

$2.49

30

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Front Central Bottom Pan Foam

502008308

$9.59

70

LH Front Central Bottom Pan Foam

502008309

$13.99

80

Bonded Foam

502008355

$19.49

90

Bonded Foam

502008356

$7.89

400

Deep Black, RH Bottom Pan

502008663

$139.99

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Front Bottom Pan Foam

502007831

$11.99

460

RH Rear Bottom Pan Foam

502008170

$16.49

470

Heat Shield

502007895

$19.99

475

Push Nut

508000853

$2.09

500

Plate

502007868

$2.19

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

600

Deep Black, LH Bottom Pan Ass'y | Includes 600 to 600c

502008507

$134.99

600a

Deep Black, LH Bottom Pan

502008512

$99.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

LH Front Bottom Pan Foam

502008334

$11.99

670

LH Rear Bottom Pan Foam

502008173

$2.29

700

Heat Shield

502008087

$7.09

710

Stopper

502008752

$2.09

720

Reflective Sheet

502008156

$4.79

800

Front Bumper | Includes 800 to 800b

502007869

$164.49

800b

Bumper Trim

502007880

$29.99

806

Horn Bracket

502008380

Unavailable

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

850

RH Bumper Reinforcement

502007762

$13.49

855

Hex. Flange Screw M6 X 16

207661644

$0.74

860

LH Bumper Reinforcement

502007763

$13.49

865

Hex. Flange Screw M6 X 16

207661644

$0.74

910

Torx Screw M6 X 25

250000758

$2.11

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

1600

Deep Black, RH Bottom Pan Panel

502008023

$53.99

1610

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1620

Washer

517124300

$0.19

1650

Stopper

502007757

$4.69

1655

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1660

Washer

517124300

$0.19

1800

Deep Black, LH Bottom Pan Panel

502007717

$53.99

1810

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1820

Washer

517124300

$0.19

1830

Tuflok Plastic Rivet

293150230

$1.47

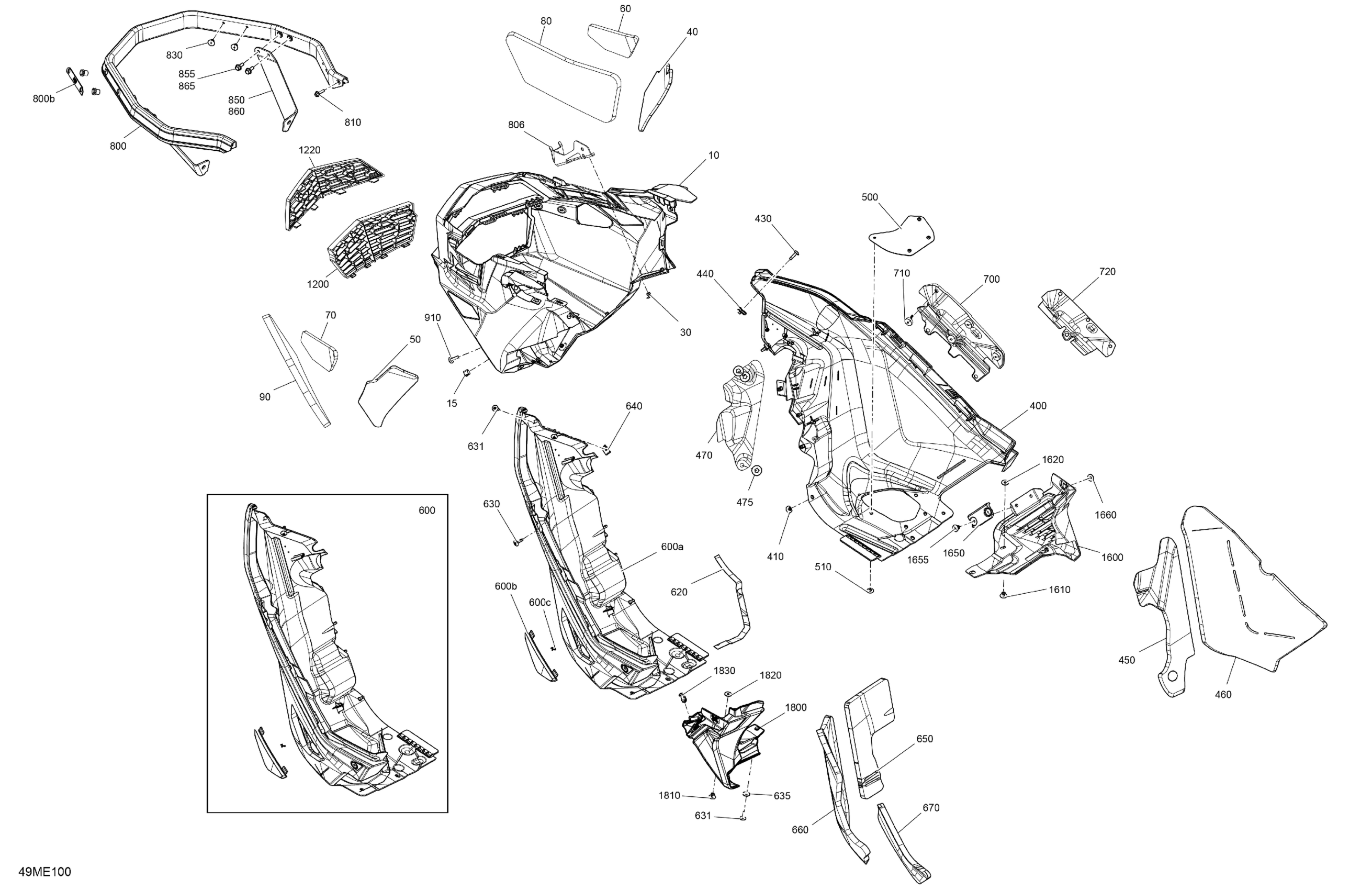

Ski-Doo Europe - EXPEDITION - 900 ACE - LE - AASA - Deep Black - 154X20X1.5CST Track - 2025 07- Body - Bottom Pan Diagram

Front Bottom Pan

Plug

Black, Pop Rivet 3/16 X ,550

RH Upper Bottom Pan Foam

LH Upper Bottom Pan Foam

RH Front Central Bottom Pan Foam

LH Front Central Bottom Pan Foam

Bonded Foam

Bonded Foam

Deep Black, RH Bottom Pan

Black, Pop Rivet 3/16 X ,550

Torx Truss M5 X 20

Panel Nut M5 X 0.8

RH Front Bottom Pan Foam

RH Rear Bottom Pan Foam

Heat Shield

Push Nut

Plate

Black, Pop Rivet 3/16 X ,425

Deep Black, LH Bottom Pan Ass'y | Includes 600 to 600c

Deep Black, LH Bottom Pan

Bottom Pan Door

Hairpin Cotter

Gasket, Neoprene 2000Mm Long

Screw Torx M5 X 20

Torx Truss M5 X 20

Washer M5

Panel Nut M5 X 0.8

LH Bottom Pan Upper Foam

LH Front Bottom Pan Foam

LH Rear Bottom Pan Foam

Heat Shield

Stopper

Reflective Sheet

Front Bumper | Includes 800 to 800b

Bumper Trim

Horn Bracket

Hex. Flange Screw M5 X 20, Scotch Grip

Black, Pop Rivet 3/16 X ,550

RH Bumper Reinforcement

Hex. Flange Screw M6 X 16

LH Bumper Reinforcement

Hex. Flange Screw M6 X 16

Torx Screw M6 X 25

Lower Prefilter Grille

Upper Prefilter Grille

Deep Black, RH Bottom Pan Panel

Black, Pop Rivet 3/16 X ,550

Washer

Stopper

Black, Pop Rivet 3/16 X ,550

Washer

Deep Black, LH Bottom Pan Panel

Black, Pop Rivet 3/16 X ,550

Washer

Tuflok Plastic Rivet
