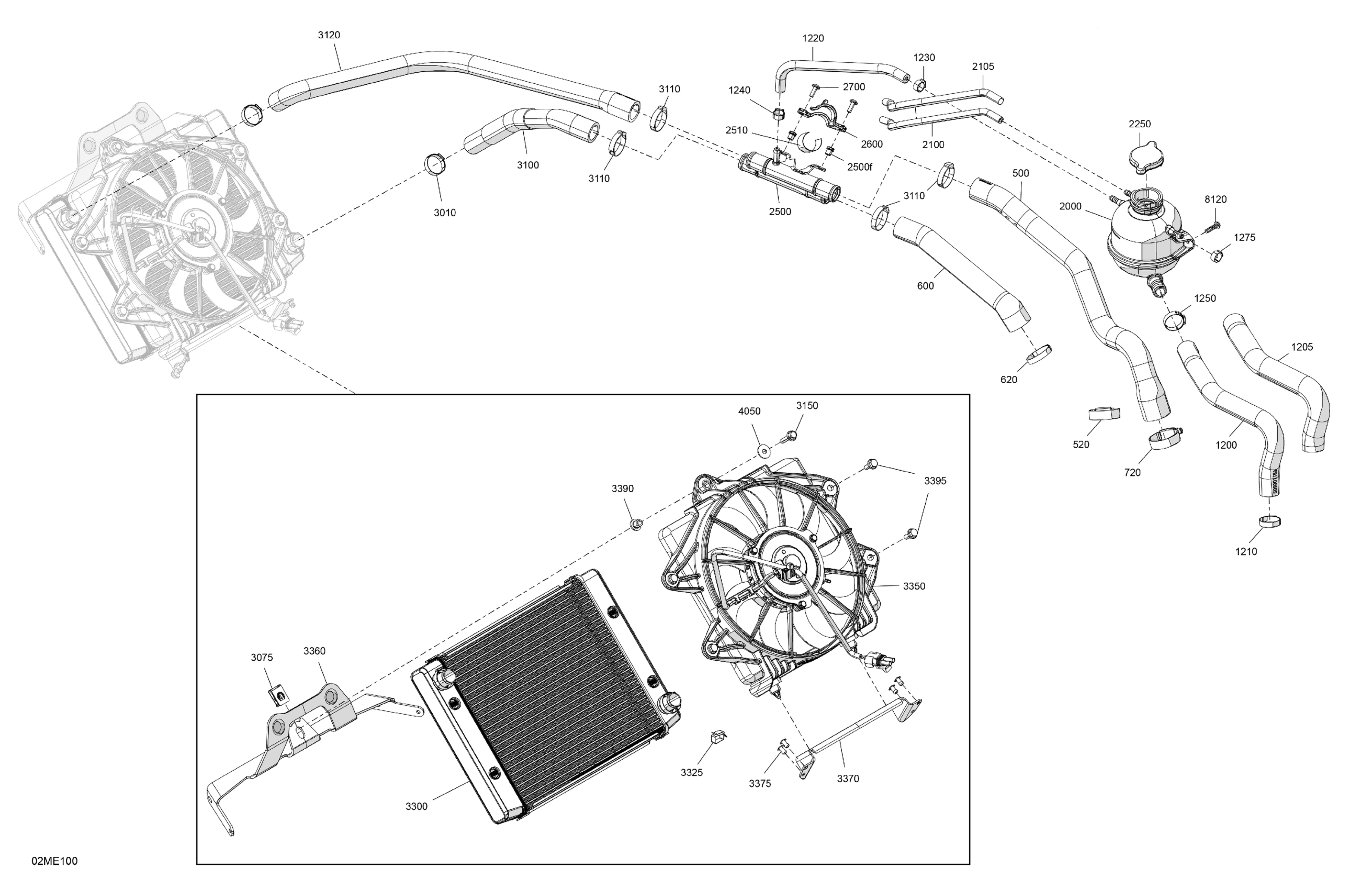

Ski-Doo Europe - EXPEDITION - 900 ACE - LE - AASA - Deep Black - 154X20X1.5CST Track - 2025 Engine - Cooling Diagram

Description

Price

500

Radiator Hose

509001449

$15.88

520

Aba Gear Clamp, 26-38 MM

509000443

$12.72

600

Engine Outlet Hose

509001013

$18.49

620

Crimp Clamp

293650333

$4.44

720

Aba Gear Clamp, 26-38 MM

509000443

$12.72

1200

Hose

509001453

$14.88

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1210

Crimp Clamp

293650099

$4.29

1220

Hose

509001454

$23.99

1230

Oetiker Clamp

293650046

$2.89

1240

Oetiker Clamp

293650046

$2.89

1250

Oetiker Clamp

509001041

$2.09

1275

Oetiker Clamp

293650046

$2.89

2000

Cooling Tank

509001033

$91.99

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2105

Protector Tube | Not shown

503195447

$13.49

2250

Radiator Pressure Cap

509000180

$20.49

2500

Coolant Pipe | Includes 2500 to 2500f

509001030

$25.99

2500f

Insert M5 X 0.8

293450268

$2.09

2510

Protector

512061214

$2.11

2600

Clamp

509001379

$4.23

2700

Torx Screw M5 X 14

250000742

$1.47

3010

Crimp Clamp

293650099

$4.29

3075

Panel Nut M6 X 1.0

250100208

$1.46

3100

Radiator Hose

509001451

$13.82

3110

Crimp Clamp

293650331

$4.44

3120

Radiator Hose

509001452

$14.88

3150

Hex. Flange Screw M6 X 25

207562544

$1.69

3300

Front Radiator This part replaces 509001465.

509001057

$174.99

3325

Clip

710010204

$1.67

3350

Fan Ass'y

509001302

$234.99

3360

Central Radiator Support

509001204

$19.49

3370

Lower Radiator Support

509001024

$4.12

3375

Avex Rivet

390909100

$0.30

3390

Bushing

293900151

$7.66

3395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

4050

Flat Washer

250200082

$0.42

8120

Hex. Flange PT Screw K50 X 20

241152040

$2.11
