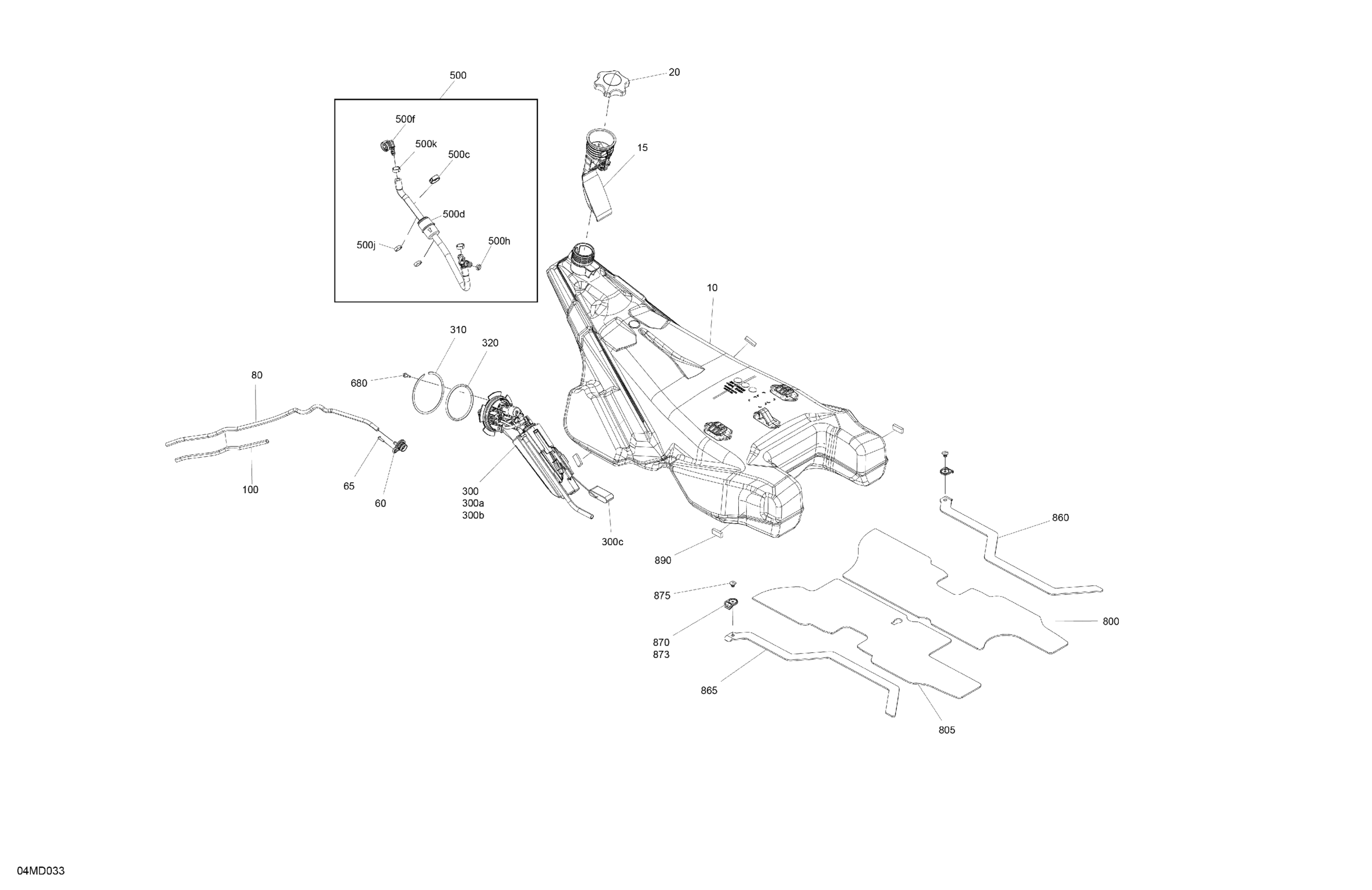

Ski-Doo Europe - EXPEDITION 900 ACE - LE - AARC - Deep Black - 154X20X1.5CST Track, 2024 02- Engine - Fuel Diagram

Description

Price

Fuel Tank

513034100

$274.99

Tube Ass'y

513033959

$28.99

Fuel Tank Cap

513033942

$26.99

Check Valve

513033849

$36.99

Truss Torx Screw K40 X 16

250000918

$2.11

Hose 5.7MM - 630MM

219704539

Unavailable

100

Protector Tube | Not shown

503195447

$13.49

300

Fuel Pump Ass'y | Includes 300 to 300c

513034083

$259.99

300a

Canister

415130507

$85.99

300b

Filter

415130508

$41.49

300c

Fuel Level Sensor

415130727

$149.99

310

Circlip

513034097

$14.23

320

O-Ring

513033862

$23.99

500

Hose Ass'y | Includes 500 to 500k

513034122

$73.99

500c

Ring

513033910

$7.99

500d

Fuel Filter

513034047

$21.99

500f

Elbow Fitting 90°

293710105

$14.22

500h

O-Ring

513033668

$10.99

500j

Crimp Clamp, 15.3-706R

293650047

$3.29

500k

Crimp Clamp

293650053

$3.09

680

Hex. Flange Screw M5 X 16

250000911

$0.85

800

RH Insulated Foam

513034052

$12.49

805

LH Insulated Foam

513034053

$12.49

860

RH Foam

513033981

$4.69

865

LH Foam

513033982

$4.69

870

Retainer Plate

513033917

$0.57

873

Retainer Plate

513033917

$0.57

875

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

890

Tank Guard

513034038

$4.39
