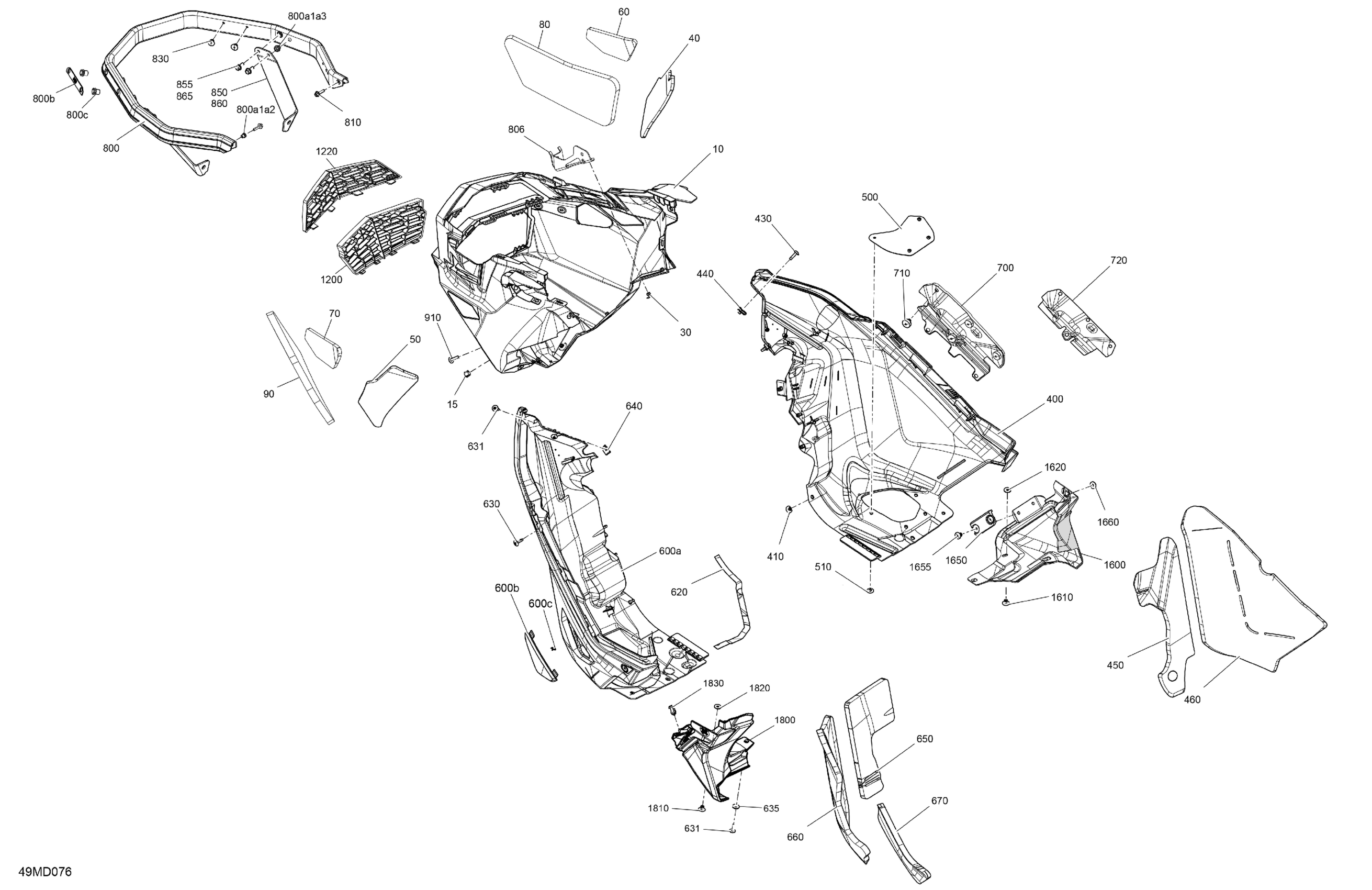

Ski-Doo Europe - EXPEDITION 850 E-TEC - Xtreme - ADRC - Neo Mint - 154X20X1.8CST8 Track, 2024 Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502008638

$184.99

15

Plug

502008550

$2.49

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Front Central Bottom Pan Foam

502008308

$9.59

70

LH Front Central Bottom Pan Foam

502008309

$13.99

80

Bonded Foam

502008355

$19.49

90

Bonded Foam

502008356

$7.89

400

Deep Black, RH Bottom Pan

502008663

$139.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Front Bottom Pan Foam

502007831

$11.99

460

RH Rear Bottom Pan Foam

502008170

$16.49

500

Plate

502007868

$2.19

510

Pop Rivet 3/16"

293150103

$0.55

600a

Deep Black, LH Bottom Pan

502008512

$99.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

LH Front Bottom Pan Foam

502008334

$11.99

670

LH Rear Bottom Pan Foam

502008173

$2.29

700

Heat Shield

502008087

$7.09

710

Stopper

502008610

$2.09

720

Reflective Sheet

502008156

$4.79

800

Orange Crush, Front Bumper | Includes 800 to 800c

502008376

$126.99

800a1a2

Insert M5 X 0.8

293450268

$2.09

800a1a3

Insert

293450398

$4.99

800b

Bumper Trim

502007880

$29.99

800c

Insert

293450398

$4.99

806

Horn Bracket

502008380

Unavailable

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

850

RH Bumper Reinforcement

502007762

$13.49

855

Hex. Flange Screw M6 X 16

207661644

$0.74

860

LH Bumper Reinforcement

502007763

$13.49

865

Hex. Flange Screw M6 X 16

207661644

$0.74

910

Torx Screw M6 X 25

250000758

$2.11

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

1600

Deep Black, RH Bottom Pan Panel

502007716

$53.99

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1620

Washer

517124300

$0.19

1650

Stopper

502007757

$4.69

1655

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1660

Washer

517124300

$0.19

1800

Deep Black, LH Bottom Pan Panel

502007717

$53.99

1810

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1820

Washer

517124300

$0.19

1830

Tuflok Plastic Rivet

293150230

$1.47
