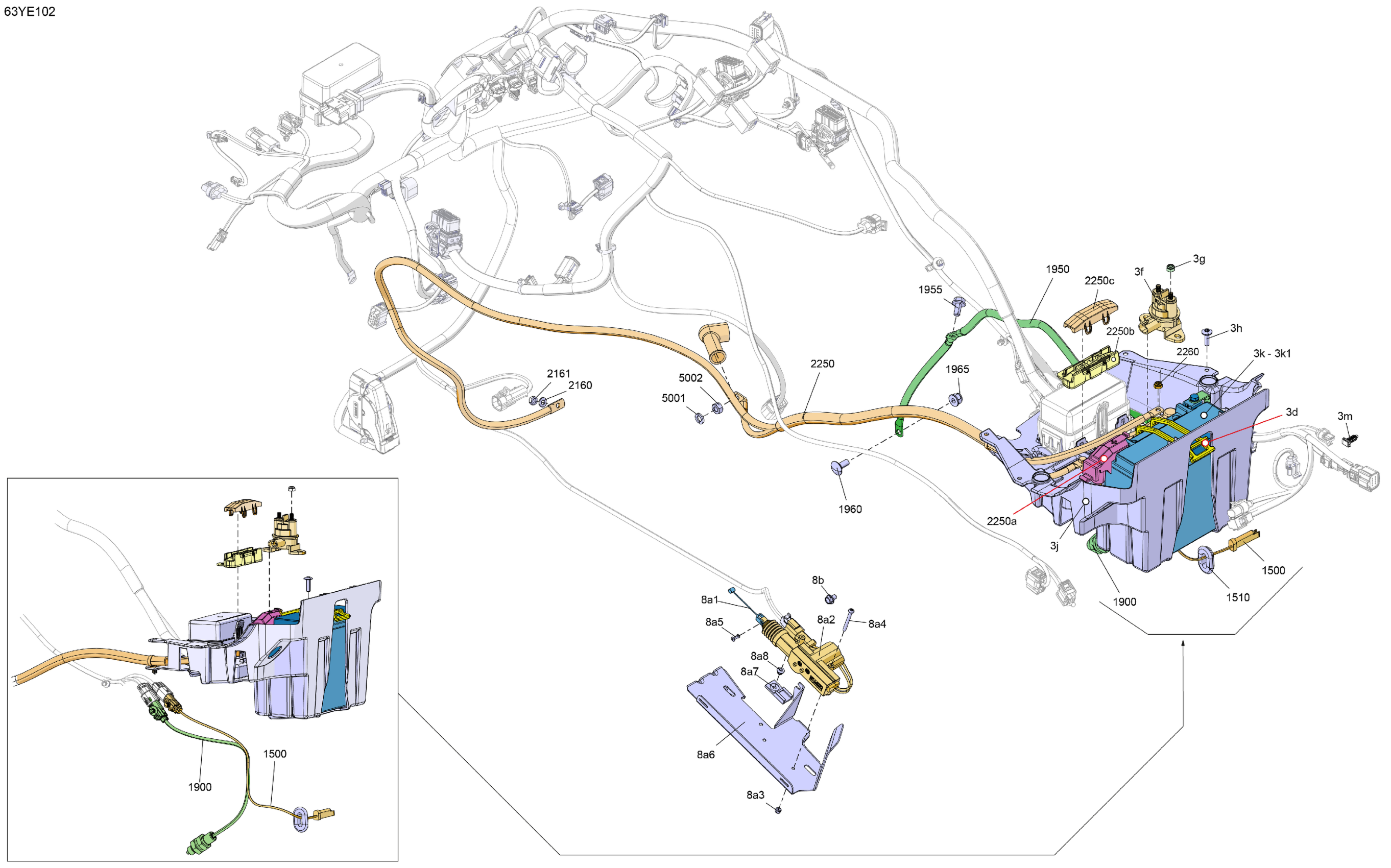

Can-Am Europe - CANYON XT - J2SB - Sterling Silver Satin, 2025 Electric - Rear Electric Diagram

Description

Price

Battery Cover | Not Shown

710011194

$31.99

Latch

520000528

$7.69

Starter Relay

278003012

$42.49

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Screw M6 X 20

250000722

$1.68

Battery Support

710008943

$22.49

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$146.94

3k1

Battery Bolt Kit

715500541

$3.29

Connector Holder

710002033

$3.39

8a1

Reverse Cable

710002889

$31.99

8a2

Actuator

710011269

$64.99

8a3

Elastic Stop Nut M4

232541414

$0.58

8a4

Socket Head Screw M4 X 40

205444056

$2.11

8a5

Pop Rivet 5/32

390403000

$0.40

8a6

Actuator Support

710010657

$20.99

8a7

Clip

270000141

$11.49

8a8

Pop Rivet 3/16 X ,425

293150293

$0.35

Hex. Flange Screw M6 X 12

210261250

$1.90

1500

Passenger Footpeg Position Sensor

705601717

$29.99

1510

Oval Grommet

517307638

$1.69

1900

Brake Switch | Not Shown

710009604

$49.99

1950

Negative Battery Cable

710008953

$46.99

1955

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

1960

Carriage Bolt M8 X 20

207782046

$1.90

1965

Elastic Flange Nut M8

233281464

$1.01

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561414

$0.55

2250

Battery Wiring Harness | Includes 2250 to 2250c

710008673

$99.99

2250a

Cap

710008983

$11.99

2250b

Fuse Holder Support

710008098

$23.99

2250c

Fuse Holder Cover

710008154

$43.49

2260

Hex. Elastic Stop Nut M6

232561600

$1.15

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72
