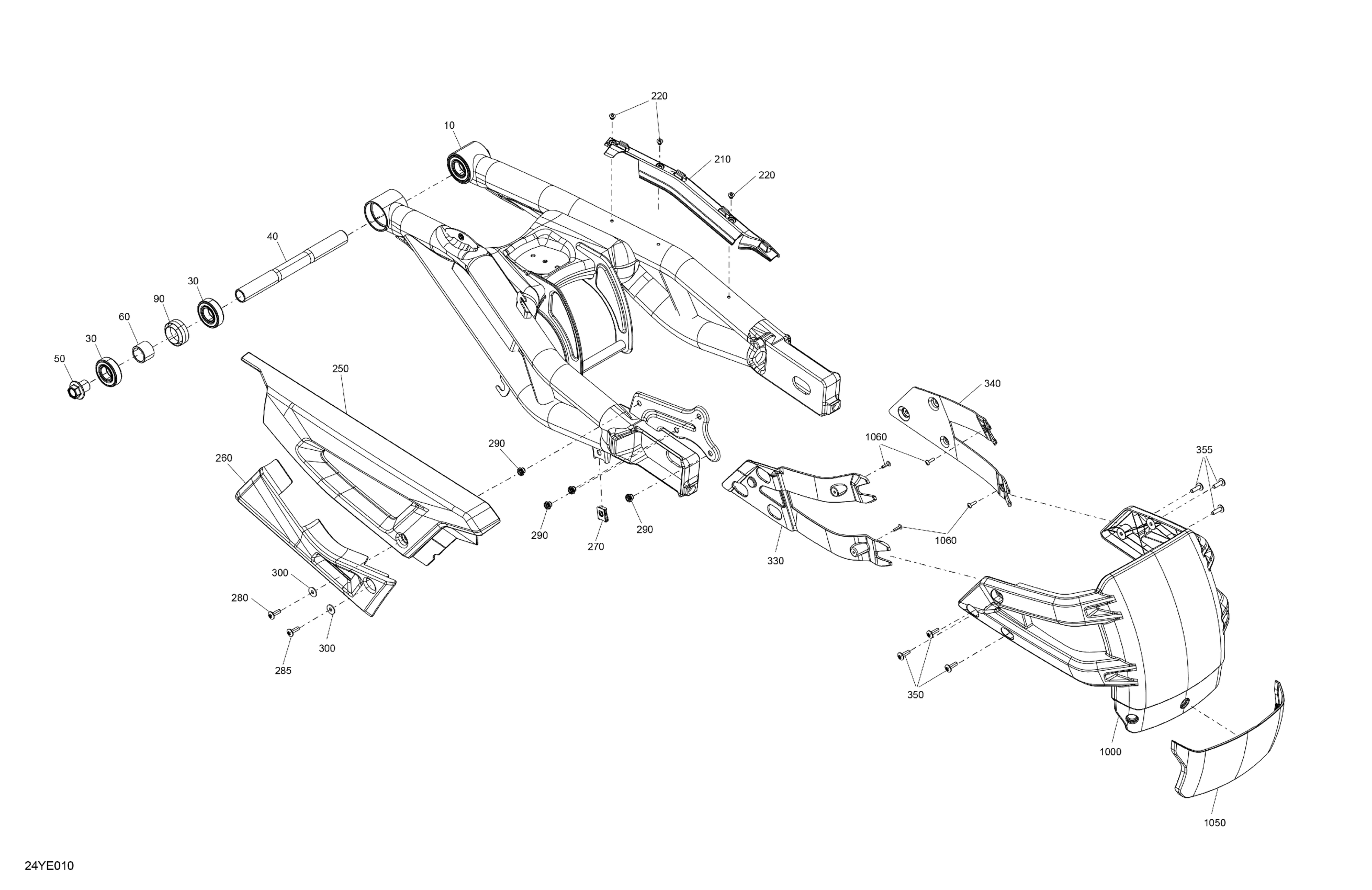

Can-Am Europe - CANYON XT - J2SB - Sterling Silver Satin, 2025 Suspension - Rear Diagram

Description

Price

Swing Arm

706005749

$466.49

Ball Bearing

293350153

$12.65

Swing Arm Axle

706001182

$93.99

Bolt M20

706001579

$16.87

Spacer

706001152

$9.49

Sleeve

706001366

$1.26

210

Fairlead

706005747

$15.49

220

Rivet 3/16"

293150102

$0.70

250

Upper Belt Guard Trim

705017539

$53.99

260

Lower Belt Guard Trim

705017540

$45.99

270

Panel Nut M6 X 1.0

250100208

$1.46

280

Torx Truss Screw M6 X 20

250000350

$5.29

285

Torx Truss Screw M6 X 20

250000350

$5.29

290

Insert Half Hex Body M6 x 1.0

250100199

$3.19

300

Stainless Steel Flat Washer

234062670

$2.11

305

Stainless Steel Flat Washer

234062670

$2.11

330

LH Rear Fender Support

706006034

$114.99

340

RH Rear Fender Support

706006035

$114.99

350

Torx Truss Screw M6 X 20

250000350

$5.29

355

Torx Truss Screw M6 X 20

250000350

$5.29

1000

Rear Fender

705017541

$204.99

1050

Rea Fender Trim

705017592

$204.99

1060

Torx-Truss Pt K40 X 16

250000759

$2.11
