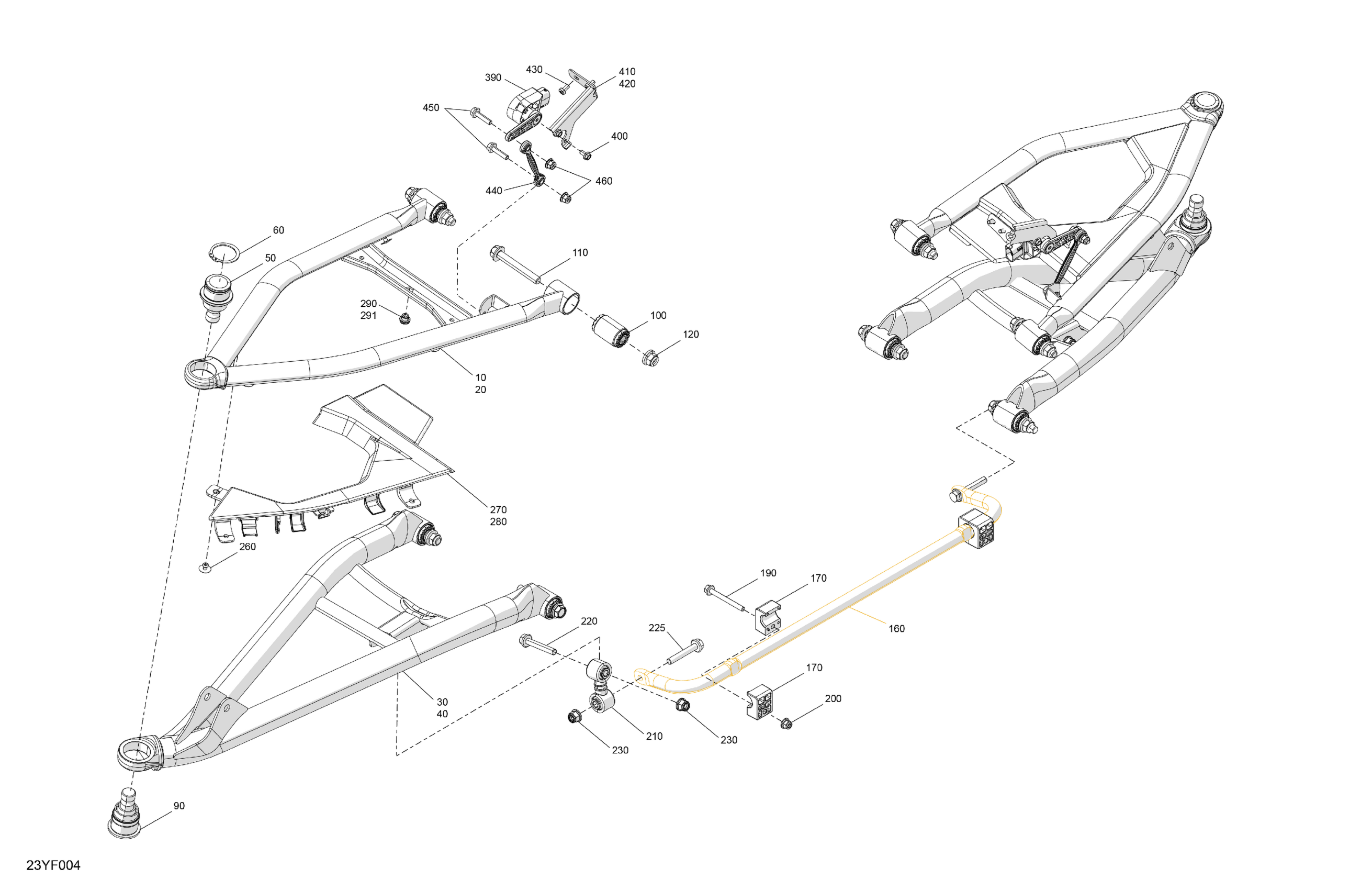

Can-Am Europe - CANYON - REDROCK - J3TB - Moss Green, 2026 Suspension - Front Diagram

Carbon Black, LH Upper Suspension Arm

706206016

$159.00

Carbon Black, RH Upper Suspension Arm

706206017

$159.00

Carbon Black, LH Lower Suspension Arm

706206018

$159.00

Carbon Black, RH Lower Suspension Arm

706206019

$159.00

Ball Joint

706202507

$59.97

Circlip

293370035

$2.55

Ball Joint

706202508

$42.00

Suspension Arm Bushing

706205028

$14.00

Hex. Flange Screw M10 X 70

207607056

$3.38

Flange Elastic Nut M10

233201466

$2.63

Sway Bar

706202800

$91.00

Stabilizer Bushing

706201391

$9.00

Hex. Flange Screw M6 X 60

250000778

$3.61

Hex. Flange Elastic Nut M6

233261466

$1.66

Stabilizer Bar Link

706005023

$21.00

Hex.Flange Screw M8 X 50

207684554

$5.00

Hex.Flange Screw M8 X 50

207684554

$5.00

Elastic Flange Nut M8

233281464

$0.83

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

LH Front Suspension Arm Trim

706205311

$23.00

RH Front Suspension Arm Trim

706205312

$23.00

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Suspension Sensor

710004740

$147.66

Hex. Flange Screw M5x10

207551056

$1.57

LH Sensor Support

706005085

$19.00

RH Sensor Support

706005086

$19.00

Pan Screw Forming, 7500C

250000690

$2.06

Tie Rod

706202505

$24.00

Hex. Flange Screw M6 X 25

207662554

$1.48

Hex. Flange Elastic Nut M6

233261494

$1.26
