Description

Price

75

Rear Disc Brake

705602409

$244.99

80

Hex. Flange Screw M10 X 25

250001054

$14.21

90

Rear Caliper | Includes 90 to 90d

705600989

$497.99

90a

Brake Pad Kit

219800239

$79.49

90b

Spring/Pin/Clip Kit

219800240

$35.99

90c

Rear Cable Support Kit

219800241

$41.49

90d

Rear Dust Cover

219800242

$32.99

100

Rear Brake Caliper Support

705602196

$56.99

110

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

130

Caliper Trim Cap

705601400

$10.43

132

Torx Screw 24 X 0.5

250000821

$1.90

135

Caliper Trim Cap

705601406

$10.43

170

Tandem Cylinder Master

705600722

$369.99

180

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

230

Bellow

705600716

$12.10

240

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

500

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

500b

Diaphragm Cover Ass'y

219800350

$17.59

500c

Diaphragm Cover Ass'y

219800350

$17.59

500d

Oil Level Sensor

705601073

$54.99

500g

Spindle Lock

705601294

$15.81

500h

Push Nut | Not shown

211100002

$2.19

501

Connector Holder

710002033

$3.39

502

Stopper Spring

705209087

$6.03

510

Formed Hose

705601236

$17.49

530

Crimp Clamp, 15.3-706R

293650047

$3.29

540

Hose Support

709000571

$4.65

740

Parking Brake Cable

707003603

$66.99

750

Grommet

705602360

$7.41

755

Open Clamp

515175507

$1.89

760

Hexagonal Head Screw

210262050

$2.11

780

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$89.99

780b

Ball Bearing

705601974

$7.49

781

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

782

Bushing

293900087

$7.90

783

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.27

6a

Grommet

293720084

$6.09

6b

Speed Sensor

710006982

$83.99

6c

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

6d

Shim

710002023

$2.85

6f

Sensor Wheel

705601372

$46.99

6g

Socket Head Screw M5 X 10

205851036

$6.77

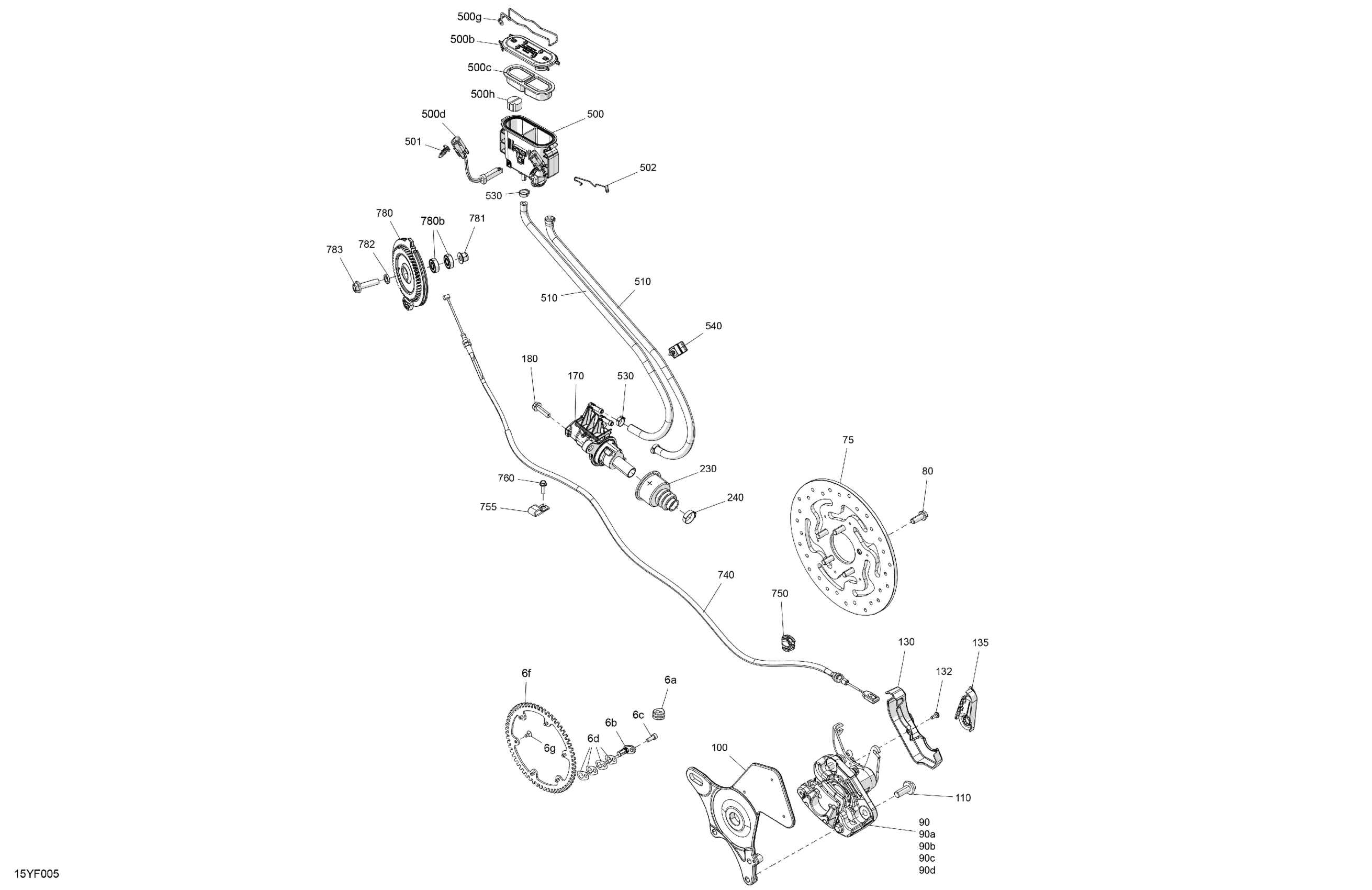

Can-Am Europe - CANYON - REDROCK - J3TB - Moss Green, 2026 Mechanic - Rear Brake Diagram

Rear Disc Brake

Hex. Flange Screw M10 X 25

Rear Caliper | Includes 90 to 90d

Brake Pad Kit

Spring/Pin/Clip Kit

Rear Cable Support Kit

Rear Dust Cover

Rear Brake Caliper Support

Hex. Flange Screw M12 X 30, Scotch Grip

Caliper Trim Cap

Torx Screw 24 X 0.5

Caliper Trim Cap

Tandem Cylinder Master

Hex. Flange Screw M8 X 30, Scotch Grip

Bellow

Oeticker Gear Clamp, 25.6-706R

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

Diaphragm Cover Ass'y

Diaphragm Cover Ass'y

Oil Level Sensor

Spindle Lock

Push Nut | Not shown

Connector Holder

Stopper Spring

Formed Hose

Crimp Clamp, 15.3-706R

Hose Support

Parking Brake Cable

Grommet

Open Clamp

Hexagonal Head Screw

Pulley Cable Ass'y | Includes 780 to 780b

Ball Bearing

Hex. Flange Elastic M10 x 1.5

Bushing

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

Grommet

Speed Sensor

Socket Head Screw M6 X 16, Scotch Grip

Shim

Sensor Wheel

Socket Head Screw M5 X 10
