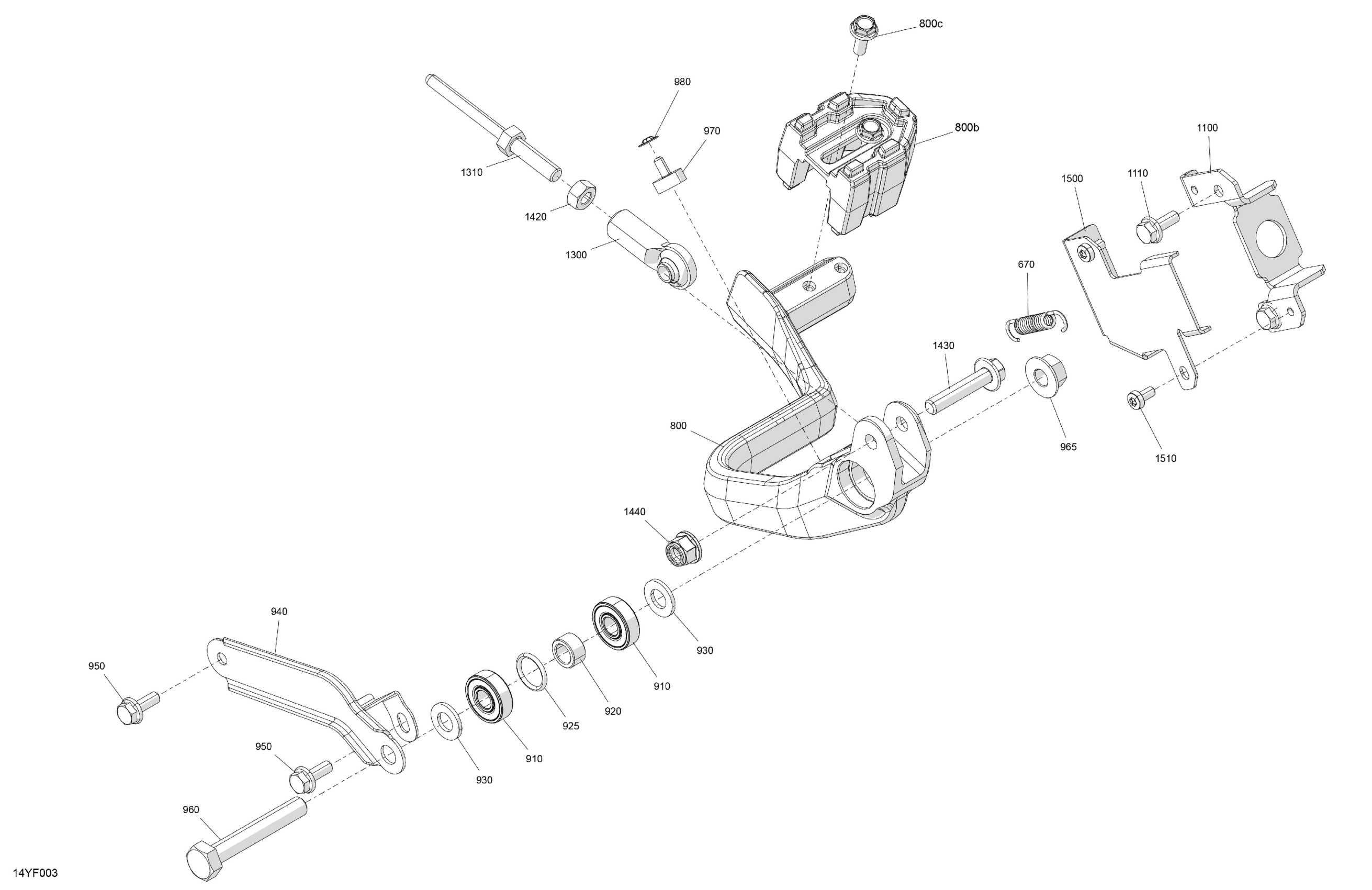

Can-Am Europe - CANYON - REDROCK - J3TB - Moss Green, 2026 Mechanic - Brake Pedal Diagram

Description

Price

670

Compression Spring

705602243

$3.00

800

Brake Pedal Ass'y | Includes 800 to 800c

705602321

$105.00

800b

Pedal Tip

705602245

$20.00

800c

Hex.Flange Screw M6 X 16

250001362

$2.00

910

Ball Bearing

705601974

$7.03

920

Spacer

705602003

$7.00

925

O-Ring

293300191

$1.00

930

Washer

503183800

$3.20

940

Stopper Support

705602256

$50.00

950

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

960

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

965

Hex. Flange Nut M10

233101414

$4.10

970

Rubber Stopper

708003414

$4.00

980

Push Nut

250100034

$1.11

1100

Switch Support

705602358

$18.00

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

1300

ROD END - Call your local BRP dealership

705601506

$15.00

1310

Piston Rod

705600468

$23.00

1420

Hex. Nut M8

232081414

$0.60

1430

Hex Flange Screw M8 X 40

207684056

$1.22

1440

Elastic Flange Nut M8

233281466

$0.83

1500

Heat Shield

705602357

$19.00

1510

Pan Screw Forming, 7500C

250000690

$2.06
