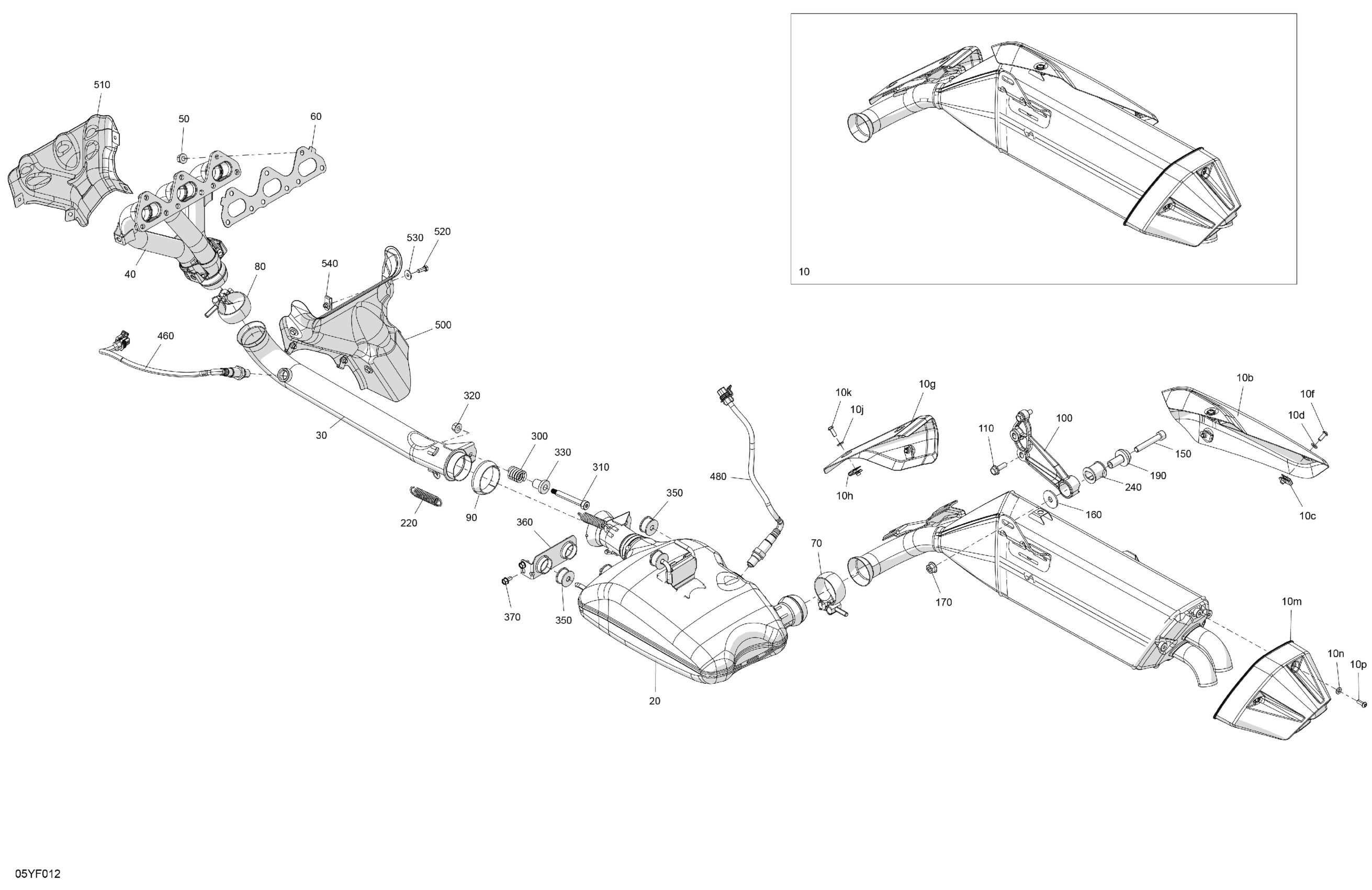

Can-Am Europe - CANYON - REDROCK - J3TB - Moss Green, 2026 Engine - Exhaust Diagram

Carbon Black, Secondary Exhaust Muffler -Tx Ass'y | Includes 10 to 10p

707603696

$953.99

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.49

Panel Nut M6 X 1.0

250100198

$2.11

Black, Flat Washer 6 mm

234061670

$1.25

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

Carbon Black, Muffler Trim

707603616

$26.99

Panel Nut M6 X 1.0

250100198

$2.11

Black, Flat Washer 6 mm

234061670

$1.25

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.49

Black, Flat Washer 6 mm

234061670

$1.25

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

Primary Exhaust Muffler

707604008

$1.00

Exhaust Pipe Out Weld

707604009

$338.99

Exhaust Manifold

707603565

$769.99

Hex. Flange Nut M8

233081416

$1.15

Exhaust Seal

707601985

$7.94

Exhaust Clamp

707600980

$24.99

Exhaust Clamp

707600980

$24.99

Exhaust Gasket

514054174

$28.49

Exhaust Support

707603445

$46.49

Hex. Flange Screw M8 X 25

207682544

$1.35

Socket Screw M10 X 60

244006060

$3.59

Washer 10 mm

506150000

$2.74

Hex. Flange Nut M10

233101600

$5.29

Black Bushing | Includes 240d to 240d2

707601657

$17.59

Spring

415107100

$6.35

Anti-Vibration Rubber

293830162

$13.22

Spring

707600682

$6.35

Screw Socket Head Shoulder M10 X 65

250001363

$8.79

Hex. Flange Nut M8

233081416

$1.15

Bushing

707601254

$11.49

Anti-Vibration Rubber

707600702

$8.57

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

Hex. Flange Screw M6 X 12

210261250

$1.90

Oxygen Sensor

707600872

$144.99

Oxygen Sensor

707600872

$144.99

Heat Shield interior

707603641

$53.99

Heat Shield Exterior

707603642

$53.99

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

Flat Washer M6, Stainless

234062600

$0.77

Panel Nut M6 X 1.0

250100198

$2.11
