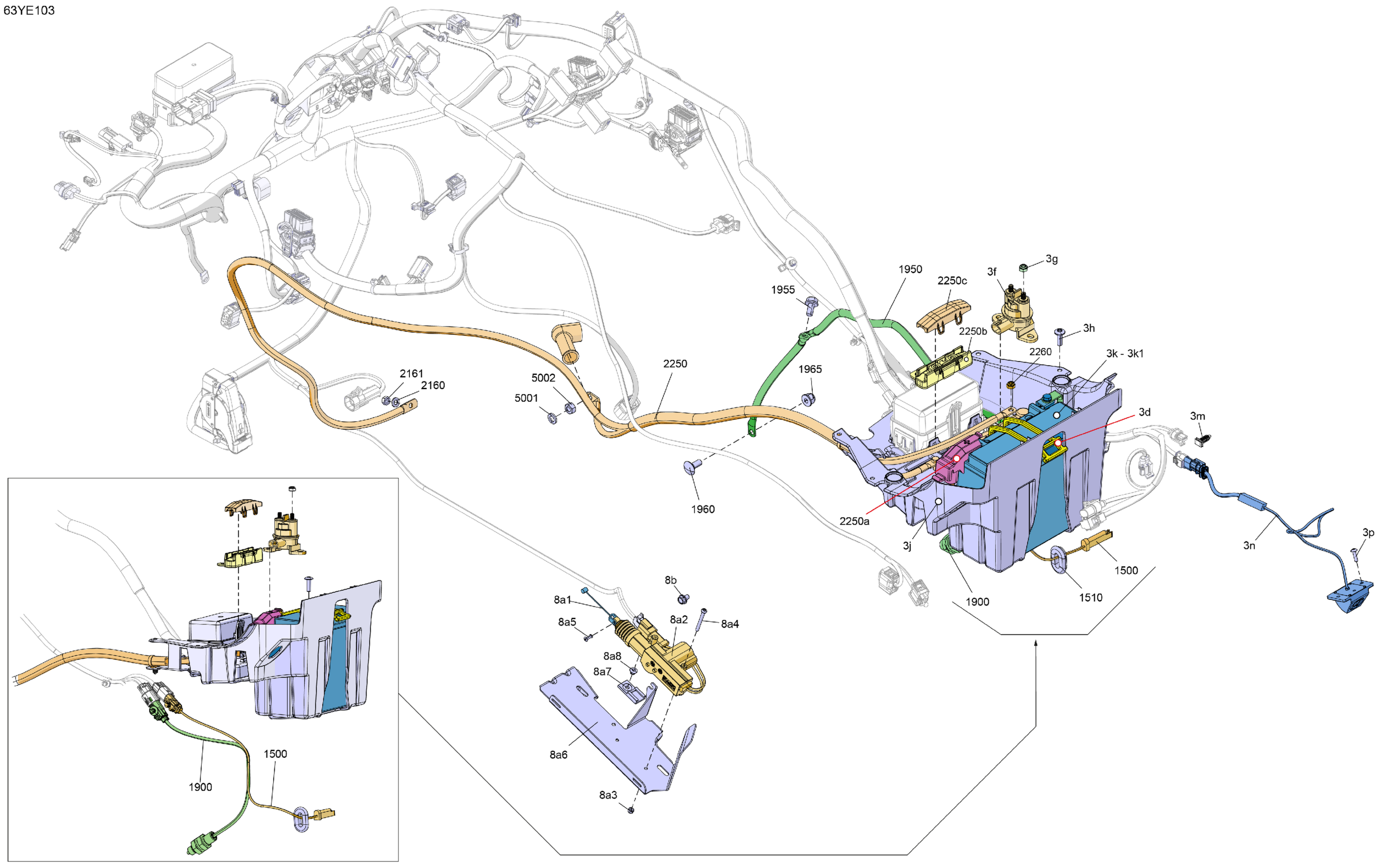

Can-Am Europe - CANYON REDROCK - J3SB - Moss Green, 2025 Electric - Rear Electric Diagram

#

Description
Price

3a

Battery Cover | Not Shown

710011194

$32.00

3d

Latch

520000528

$6.60

3f

Starter Relay

278003012

$35.07

3g

Hex. Elastic Stop Nut M6

232561600

$0.92

3h

Torx Screw M6 X 20

250000722

$1.34

3j

Battery Support

710008943

$22.00

3k

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$101.37

3k1

Battery Bolt Kit

715500541

$3.39

3m

Connector Holder

710002033

$3.22

3n

Camera

710010502

$320.00

3p

Torx-Truss Pt K40 X 16

250000759

$1.74

8a1

Reverse Cable

710002889

$32.00

8a2

Actuator

710011269

$65.00

8a3

Elastic Stop Nut M4

232541414

$0.48

8a4

Socket Head Screw M4 X 40

205444056

$1.74

8a5

Pop Rivet 5/32

390403000

$0.34

8a6

Actuator Support

710010657

$21.00

8a7

Clip

270000141

$8.33

8a8

Pop Rivet 3/16 X ,425

293150293

$0.26

8b

Hex. Flange Screw M6 X 12

210261250

$1.56

1500

Passenger Footpeg Position Sensor

705601717

$30.00

1510

Oval Grommet

517307638

$2.00

1900

Brake Switch | Not Shown

710009604

$50.00

1950

Negative Battery Cable

710008953

$47.00

1955

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

1960

Carriage Bolt M8 X 20

207782046

$2.00

1965

Elastic Flange Nut M8

233281464

$0.83

2160

Stainless Flat Washer M6

234061600

$0.25

2161

Elastic Stop Nut M6

232561414

$1.55

2250

Battery Wiring Harness | Includes 2250 to 2250c

710008673

$100.00

2250a

Cap

710008983

$12.00

2250b

Fuse Holder Support

710008098

$24.00

2250c

Fuse Holder Cover

710008154

$43.00

2260

Hex. Elastic Stop Nut M6

232561600

$0.92

5001

Lock Washer 8 mm, Stainless

234181601

$0.46

5002

Hex. Nut M8

232081414

$0.60
