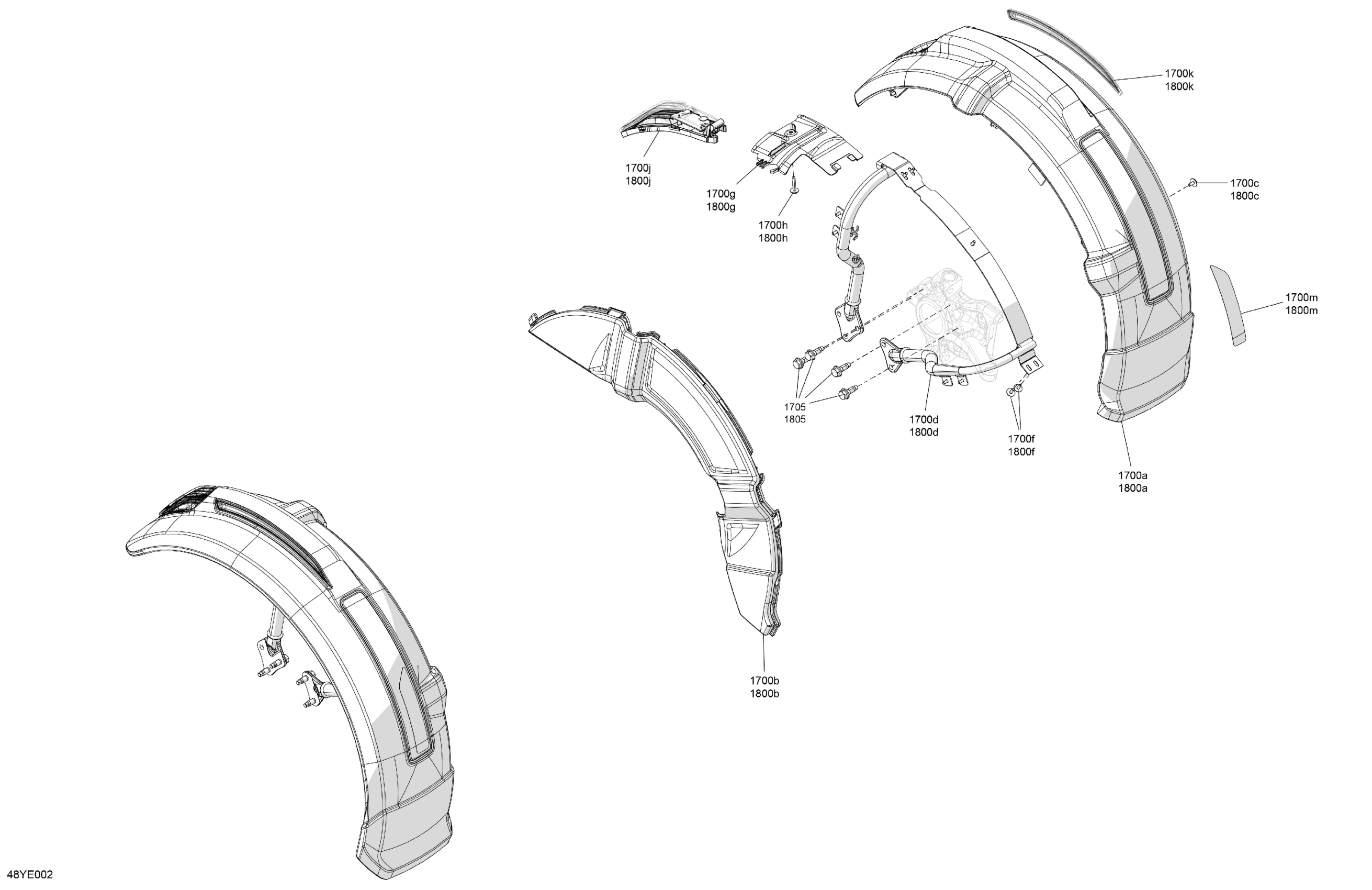

Can-Am Europe - CANYON REDROCK - J3SB - Moss Green, 2025 Body - Fender Kit Diagram

Description

Price

1700a

LH Front Fender

705017633

$205.00

1700b

LH Int Fender

705017634

$55.00

1700c

Plastite Screw M4 X 10

250000805

$1.74

1700d

LH Front Fender Support Ass'y

705017626

$89.00

1700f

Plastite Screw M4 X 10

250000805

$1.74

1700g

LH Connector Guard

705017823

$2.00

1700h

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

1700j

LH Front Position Light

710007008

$120.00

1700k

Yellow, LH Reflector

705012404

$18.00

1700m

Red, LH Reflective Strip

705019442

$5.00

1705

Hexagonal Screw M8X25 Dog Point

250000773

$2.00

1800a

Front Fender

705017635

$140.00

1800b

RH Int Fender

705017636

$56.00

1800c

Plastite Screw M4 X 10

250000805

$1.74

1800d

RH Front Fender Support Ass'y

705017627

$89.00

1800f

Plastite Screw M4 X 10

250000805

$1.74

1800g

RH Connector Guard

705017824

$2.00

1800h

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

1800j

RH Front Position Light

710007009

$120.00

1800k

Yellow, RH Reflector

705012405

$18.00

1800m

Red, RH Reflective Strip

705019443

$5.00

1805

Hexagonal Screw M8X25 Dog Point

250000773

$2.00
