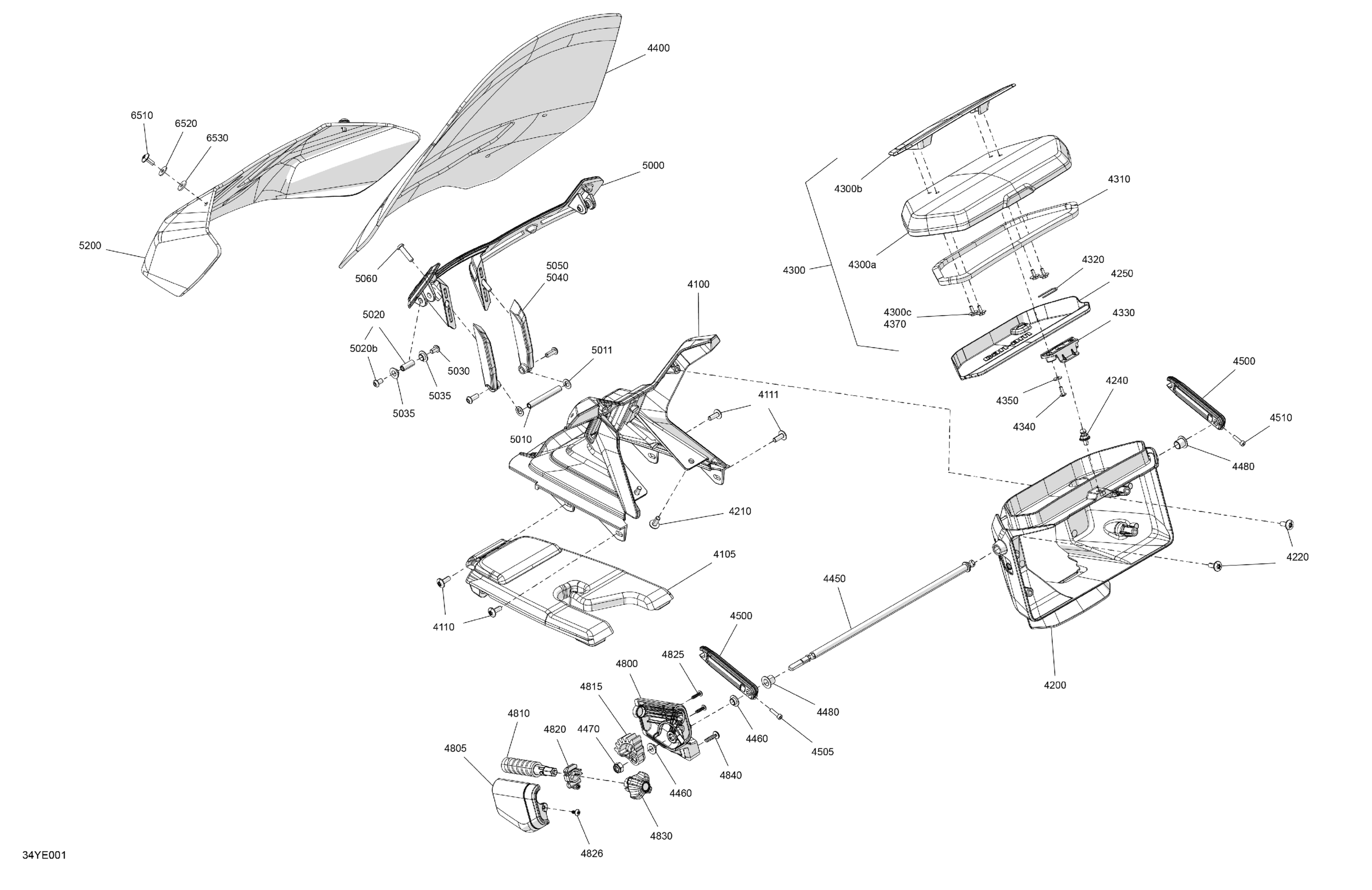

Can-Am Europe - CANYON REDROCK - J3SB - Moss Green, 2025 Body - Console - Windshield Diagram

#

Description
Price

4100

Lower Windshield Support

708400783

$130.00

4105

Thermal Insulation

708401003

$24.00

4110

Torx Head Screw M6 X 16

250000717

$1.74

4111

Torx Head Screw M6 X 16

250000717

$1.74

4200

Windshield Support

708400789

$130.00

4210

Torx Head Screw M6 X 16

250000717

$1.74

4220

Torx Head Screw M6 X 16

250000717

$1.74

4240

Ball Stud

705019173

$19.00

4250

Box Liner

293830250

$15.00

4300

Upper Box Cover Ass'y | Includes 4300 to 4300c

708401019

$38.00

4300a

Upper Box Cover

708400683

$38.00

4300b

Central Air Deflector

708401012

Unavailable

4300c

Plastite Screw M4 X 10

250000805

$1.74

4310

Gasket

293830244

$6.00

4320

Spring

705006661

$3.00

4330

Cover Striker

708400931

$8.00

4340

Torx Truss PT K40 x 12

250001131

$1.74

4350

Washer-Flat Din*9021B A2 Black Oxi

250200155

$1.00

4370

Plastite Screw M4 X 10

250000805

$1.74

4400

Windshield

708400630

$400.00

4450

Link Rod

708400632

$48.00

4460

Sleeve

705003267

$9.00

4470

Elastic Stop Nut

232581434

$1.64

4480

Coupling Sleeve

705019174

$9.00

4500

Pivot Arm

708400791

$84.00

4505

Black, Socket Head Screw M4 X 16

250001011

$1.45

4510

Black, Socket Head Screw M4 X 16

250001011

$1.45

4800

Pinion Housing

708400845

$16.00

4805

Sprocket Cover

708400851

$12.00

4810

Worm Screw

708400637

$91.00

4815

Sprocket Wheel

708400652

$91.00

4820

Bracket

708400852

$8.00

4825

Hex. Flange Screw K40 X 16

250001123

$2.06

4826

Torx-Truss Screw K40 X 10

250001034

$0.81

4830

Adjustment Button

708400841

$5.00

4840

Torx Screw Truss Head K50X20 T20

250000760

$1.74

5000

LH Upper Windshield Support

708400785

$215.00

5010

AXE DE PIVOT *PIVOT PIN

705009565

$48.00

5011

Anti Friction Washer

517309702

$1.00

5020

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

5020b

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

5030

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

5035

Sleeve

705003267

$9.00

5040

LH Central Windshield Support

708400912

$44.00

5050

RH Central Windshield Support

708400914

$44.00

5060

Screw Button Head Torx S.Grip M6 X

250001332

$5.00

5200

Lower Windshield Deflector

708400629

$230.00

6510

Torx-Truss M/S M5 X 14

250000941

$2.06

6520

Stainless Steel Flat Washer M5

234052670

$0.83

6530

Rubber Washer

293830190

$2.00
