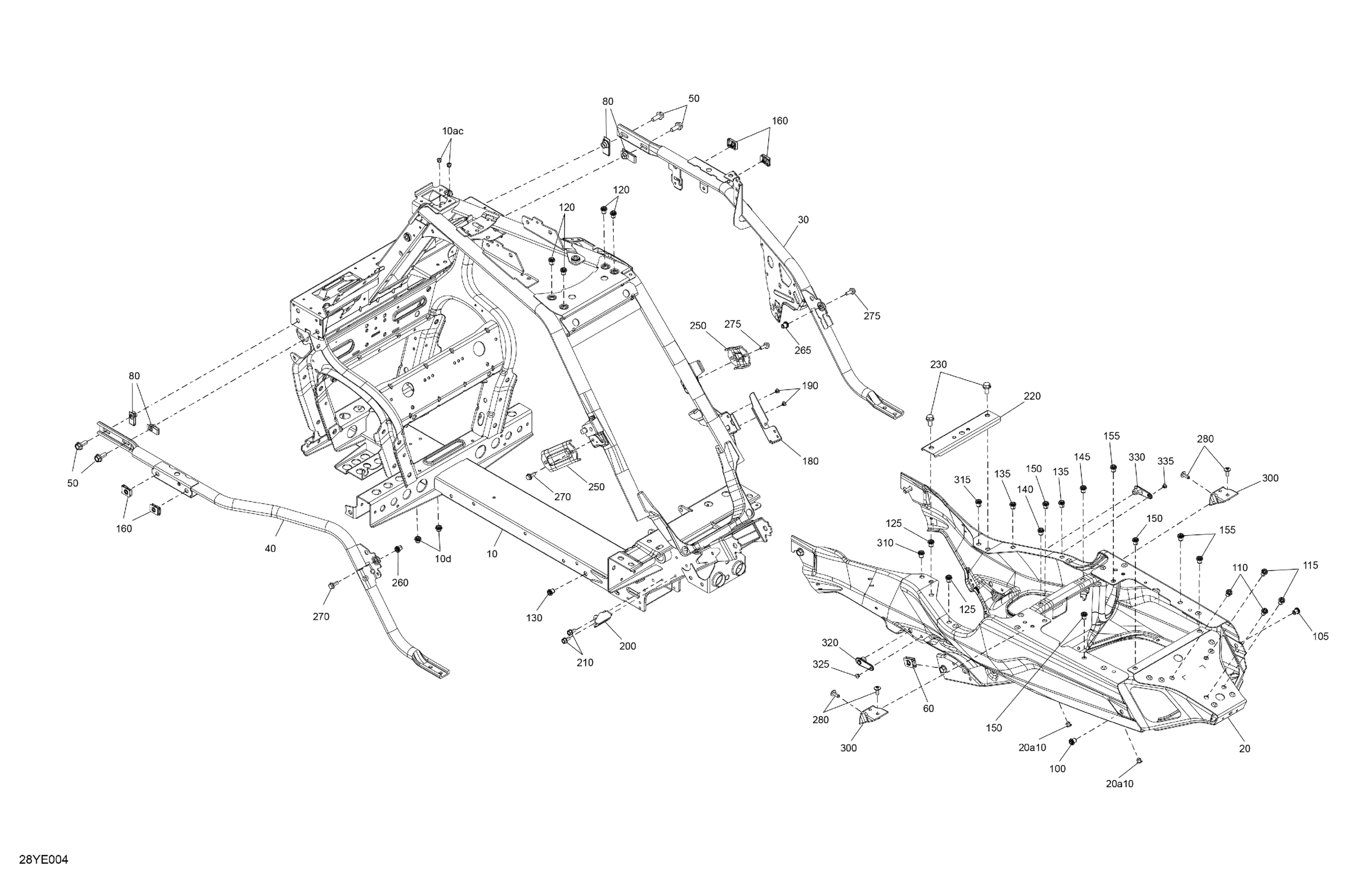

Can-Am Europe - CANYON REDROCK - J3SB - Moss Green, 2025 Frame - System Diagram

#

Description
Price

10

Chassis | Includes 10 to 10at

705210619

$1,780.00

10d

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10ac

Pop Rivet 3/16 X ,425

293150293

$0.26

10at

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

20

Rear Chassis Module | Includes 20 to 20a10

705210731

$560.00

20a10

Rivet Ornit 6,5 X 12.5

293150265

$1.94

30

RH Side Member | Includes 30 to 30a7

705210985

$205.00

30a7

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

40

LH Side Member | Includes 40 to 40a5

705210986

$205.00

40a5

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

50

Hex Screw Washer Head M8 X 20

207582054

$2.61

60

Panel Nut M8 X 1.25

250100069

$4.00

80

Panel Nut M8 X 1.25

250100118

$1.63

100

Insert Half Hex Body M6 x 1.0

250100199

$2.54

105

Insert Half Hex Body M6 x 1.0

250100199

$2.54

110

Insert Half Hex Body M6 x 1.0

250100199

$2.54

115

Insert Half Hex Body M6 x 1.0

250100199

$2.54

120

Insert Half Hex Body M6 x 1.0

250100199

$2.54

125

Insert Half Hex Body M6 x 1.0

250100199

$2.54

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Insert Half Hex Body M6 x 1.0

250100199

$2.54

140

Insert Half Hex Body M6 x 1.0

250100199

$2.54

145

Insert Half Hex Body M6 x 1.0

250100199

$2.54

150

Insert Half Hex Body M6 x 1.0

250100199

$2.54

155

Insert Half Hex Body M6 x 1.0

250100199

$2.54

160

Panel Nut M6 X 1.0

250100208

$1.07

180

RH Connector Support

705212613

$18.00

190

Pop Rivet 3/16"

390402400

$0.25

200

Suspension Stopper

705211305

$29.00

210

Hex. Flange Screw M6 X 12

210261250

$1.56

220

Front Upper Cross Member Ass'y

705211638

$29.00

230

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

250

Chassis Reinforcement

705018558

$17.00

260

Insert Half Hex Body M6 x 1.0

250100199

$2.54

265

Insert Half Hex Body M6 x 1.0

250100199

$2.54

270

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

275

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

280

Torx Head Screw M6 X 16

250000717

$1.74

300

Machined Module Support

705602275

$17.00

310

Insert Half Hex Body M6 x 1.0

250100199

$2.54

315

Insert Half Hex Body M6 x 1.0

250100199

$2.54

320

Machined Anchorage Support

705602322

$18.00

325

Pop Rivet 3/16"

390402400

$0.25

330

Machined Anchorage Support

705602322

$18.00

335

Pop Rivet 3/16"

390402400

$0.25
