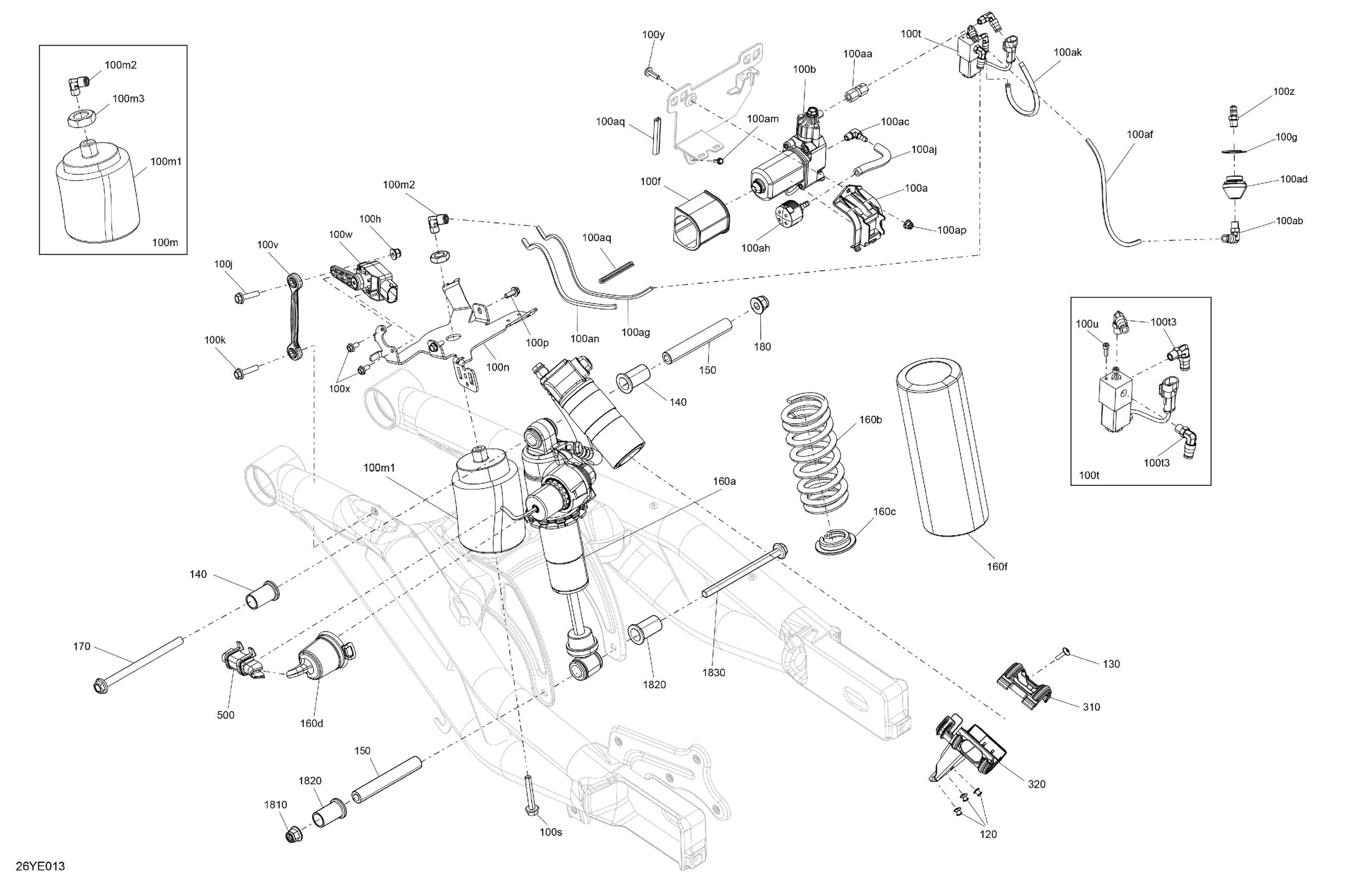

Can-Am Europe - CANYON REDROCK - J3SB - Moss Green, 2025 Suspension - Rear Shock Diagram

#

Description
Price

100a

Ext Compressor Support

706005318

$4.19

100b

Compressor

706005694

$459.99

100d

Hose 4.32Mm 3000Mm Long

219704415

$50.72

100f

Compressor Isolator

706000631

$12.82

100g

Circlip

293370123

$2.69

100h

Hex. Flange Elastic Nut M6

233261494

$1.45

100j

Hex. Flange Screw M6 X 25

207662554

$1.43

100k

Hex. Flange Screw M6 X 25

207662554

$1.43

100m

Air Damper Kit

219800175

$291.49

100m1

Air Damper Kit

219800175

$291.49

100m2

Elbow 90°

706001018

$28.99

100m3

Jam Nut M20

250100119

$4.13

100n

Shock Absorber Anchorage

706005195

$25.99

100p

Hex. Flange Screw M6 X 16

210261650

$1.40

100s

Hex. Flange Screw M8 X 50

207685044

$1.60

100t

Pressure Manifold Ass'y | Includes 100t to 100t3

706006098

$299.99

100t3

Elbow 90°

706000928

$25.34

100u

Socket Head Screw M4 X 12

205041254

$1.96

100v

Tie Rod

706202505

$23.99

100w

Suspension Sensor

710004740

$143.25

100x

Hex. Flange Screw M5x10

207551056

$1.81

100y

Torx Screw M6 X 20

250000712

$2.00

100z

Air Valve

706002797

$14.90

100aa

Ckeck Valve

706000831

$38.99

100ab

Elbow 90°

706000928

$25.34

100ac

Pipe Elbow Fitting

293700060

$28.49

100ad

Pneumatic Connector

706004028

$19.49

100af

Hose 4.32Mm 3000Mm Long

219704415

$50.72

100ag

Hose 4.32Mm 3000Mm Long

219704415

$50.72

100ah

Air Filter

706005941

$18.49

100aj

Hose 1/2 ID

706006038

$19.99

100ak

Hose 4.32Mm 3000Mm Long

219704415

$50.72

100am

Hex. Flange Screw M6 X 12

210261250

$1.79

100an

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

100ap

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

100aq

Trim - 70 mm

219704620

Unavailable

120

Pop Rivet 3/16 X ,425

293150293

$0.30

130

Screw Type K-50 X20

250001155

$4.76

140

Spacer

706000410

$13.99

150

Shock Absorber Shaft

706000409

$49.99

160a

Rear Shock Absorber

706005024

$1,027.99

160b

Compression Spring

706005716

$49.99

160c

Spring Stopper

706205929

$12.99

160d

Rear Shock Absorber Guard

706005637

$11.64

160f

Soft Shock Absorber Guard

705017969

$45.99

170

Hex.Flange Screw M10 X 150

230605034

$6.77

180

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

310

Shock Absorber Tank Support

706005315

$4.19

320

Rear Shock Absorber Tank Support

706005821

$4.69

500

Connector Guard

706006159

$13.49

1810

Hex. Flange Elastic Nut M10

233201434

$1.87

1820

Spacer

706000410

$13.99

1830

Hex. Flange Screw M10 X 140

230604034

$6.77
