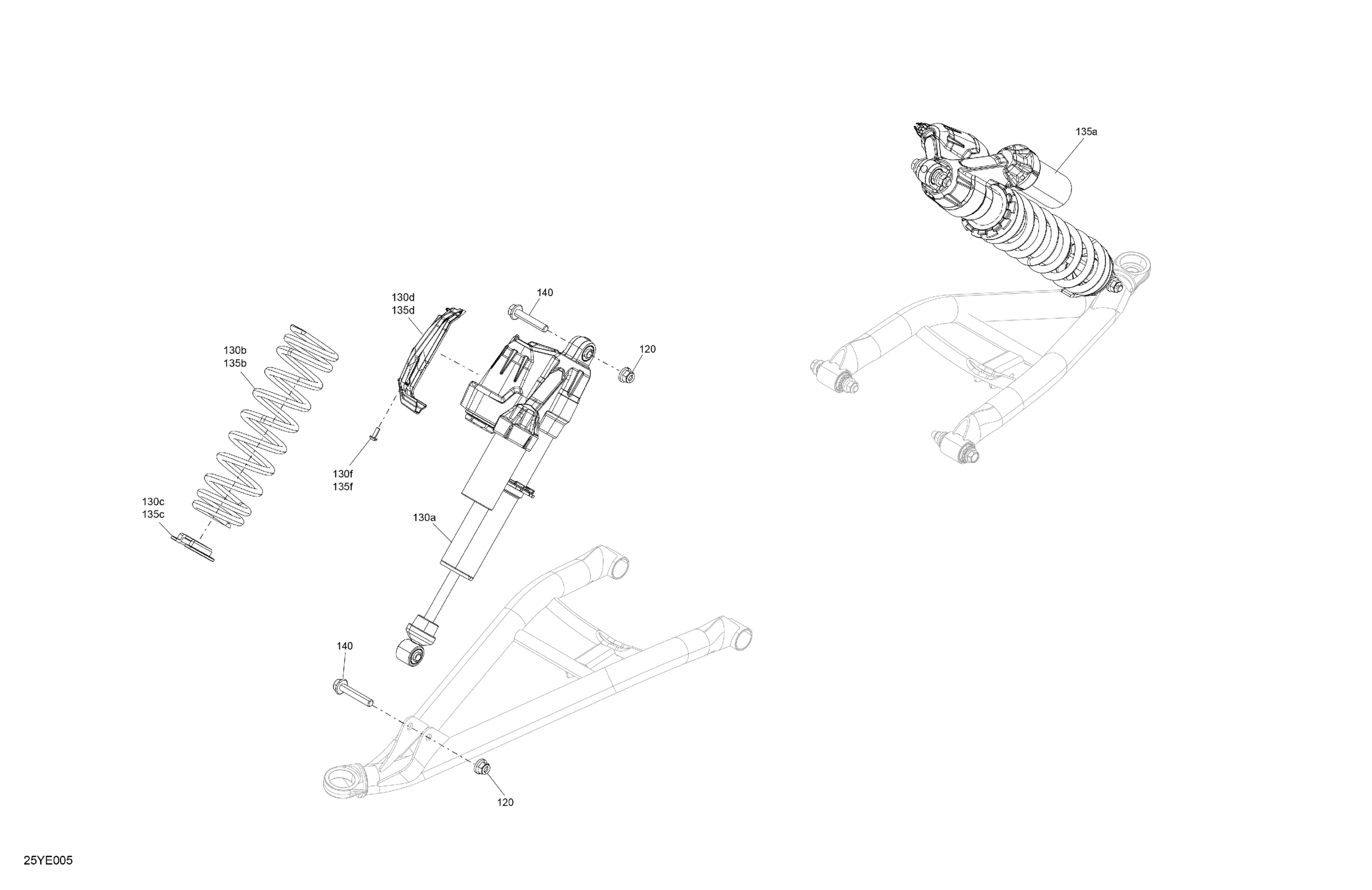

Can-Am Europe - CANYON REDROCK - J3SB - Moss Green, 2025 Suspension - Front Shocks Diagram

Description

Price

120

Flange Elastic Nut M10

233201466

$3.17

130a

LH Front Shock Absorber

706005035

$1,027.99

130b

Compression Spring

706005615

$64.49

130c

Spring Stopper

706205929

$12.99

130d

Connector Guard

706205893

$11.64

130f

Torx Screw M5 X 14

250000742

$1.47

135a

RH Front Shock Absorber

706004863

$1,027.99

135b

Compression Spring

706005615

$64.49

135c

Spring Stopper

706205929

$12.99

135d

Connector Guard

706205893

$11.64

135f

Torx Screw M5 X 14

250000742

$1.47

140

Hex. Flange Screw M10 X 55

207605554

$7.62
