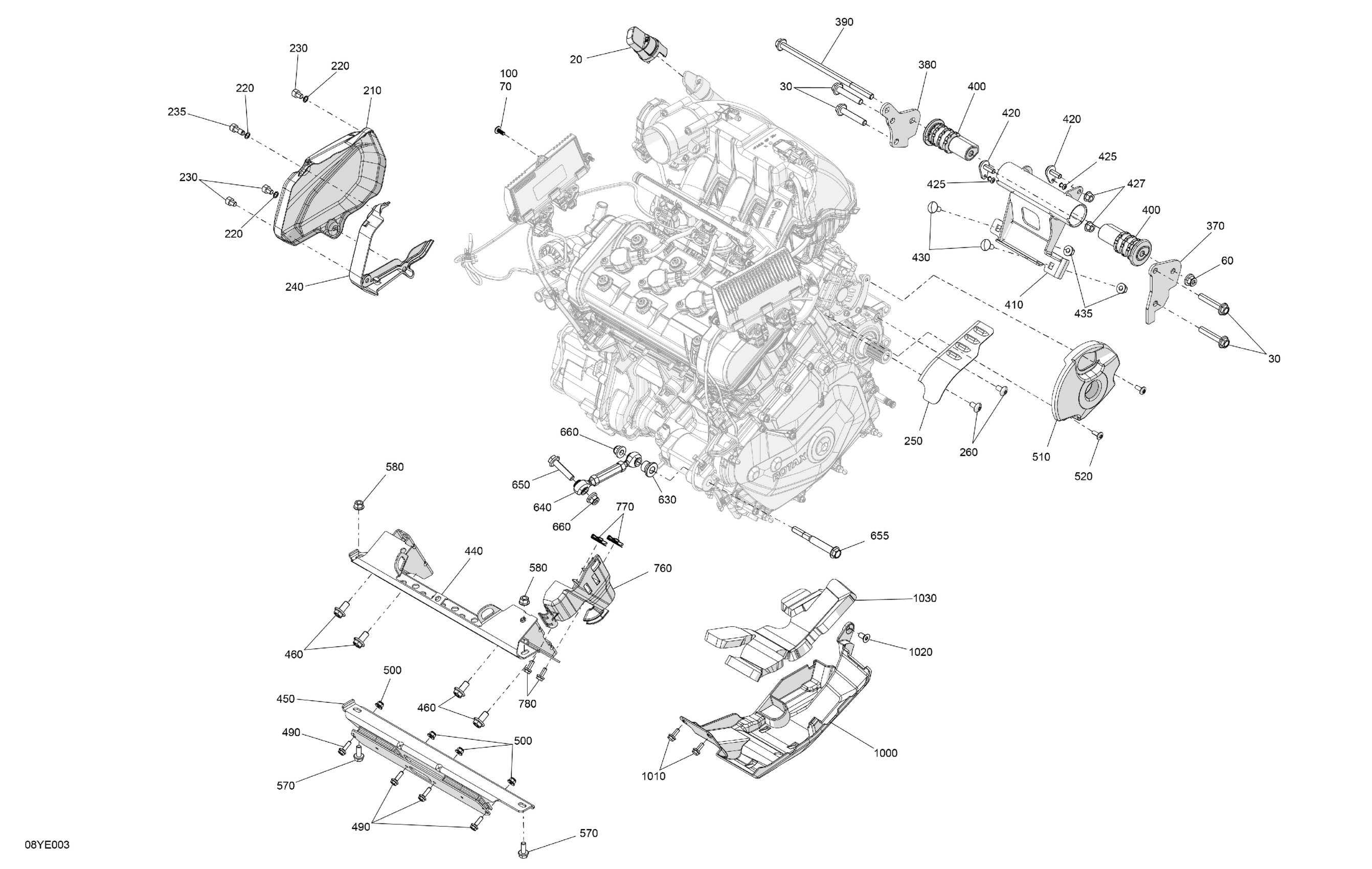

Can-Am Europe - CANYON REDROCK - J3SB - Moss Green, 2025 Engine - System Diagram

Adapter

707003685

$20.00

Hex. Flange Screw M10 X 55, Scotch Grip

207505544

$4.00

Flange Elastic Nut M10

233201466

$2.63

Oval Head Torx Screw K60 X 16

250000546

$1.74

Oval Head Torx Screw K60 X 16

250000546

$1.74

Cover

707601741

$106.00

Flate Washer M8, Aluminum

250200160

$2.00

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.07

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.28

Wire Cover

707001628

$14.00

Pulley Cover

707003651

$26.00

Torx Truss Screw M8 X 16

250000746

$2.78

LH Engine Support

707001293

$22.00

RH Engine Mount

707003556

$22.00

Hex. Flange Screw M10 X 220

250000507

$8.00

Vibration Damper

707003044

$90.00

Frame Extension

707000877

$95.00

Attach

707001292

$19.00

Pop Rivet 3/16 X ,551

293150301

$0.64

Hex. Flange Nut M8

233081416

$1.63

Carriage Bolt M8 X 20

207782046

$2.00

Hex. Flange Nut M8

233081416

$1.63

Front Engine Support

707001561

$105.00

Rubber Mount

707000876

$135.00

Hex Flange Screw M10 X 20

207502044

$4.28

Hex. Flange Screw M6 X 20

207662054

$0.83

Hex. Flange Elastic Nut M6

233261466

$1.66

Generator Cover

705018455

$46.00

Torx Truss M8 X 16

250000881

$1.74

Hex. Flange Screw M8 X 20

207682046

$1.82

Hex. Flange Nut M8

233081416

$1.63

Spacer

707001736

$27.00

Connecting Rod

707001918

$64.00

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$7.00

Hex. Flange Screw M10 X 100

250001099

$12.00

Flange Elastic Nut M10

233201466

$2.63

SUPPORT_CONNECTOR

707003755

$15.00

Panel Nut M6 X 1.0

250100208

$1.07

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Skid Plate

707001930

$30.00

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

Acoustic Insulation

707003260

$17.00
