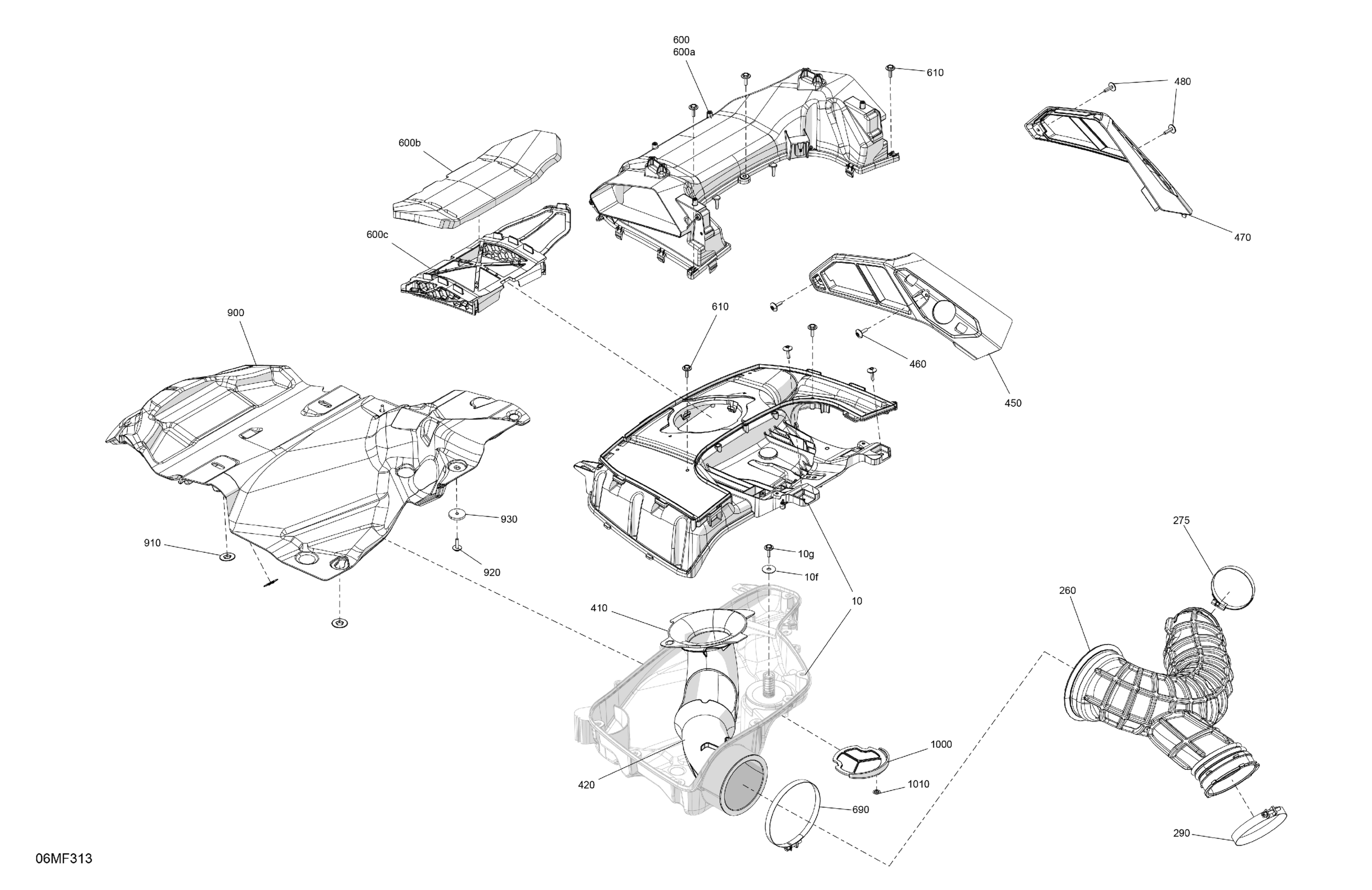

Ski-Doo Europe - BACKCOUNTRY - X-RS - 850 E-TEC Turbo R - UZT2 - Scandi Blue - 15X146X1.5S Track, 2026 Engine - Air Intake Diagram

Description

Price

Secondary Intake Silencer Ass'y | Includes 10 to 10g

508001363

$163.82

10f

Flat Washer

224060201

$1.15

10g

Screw M4 X 16

250000725

$2.87

260

Soft Manifold Hose

508001334

$83.05

275

Norma Gear Clamp

293650118

$9.74

290

Gemi Clamp

293650152

$14.57

410

Resonator Hose IN

508001132

$29.20

420

Resonator Hose OUT

508001131

$29.20

450

LH Air Filter

508001136

$32.28

460

Screw M4 X 16

250000889

$2.46

470

RH Air Filter

508001137

$40.74

480

Screw M4 X 16

250000889

$2.46

600

Upper Intake Silencer Duct Ass'y | Includes 600 to 600c

508001300

$64.58

600a

Upper Intake Silencer Duct

508001289

$46.89

600b

Acoustic Insulation

508001224

$13.52

600c

Foam Support

508001222

$36.89

610

Screw M4 X 16

250000725

$2.87

690

Gemi Clamp

293650247

$6.26

900

Acoustic Panel

508001198

$42.28

910

Push Nut

508000853

$1.92

920

Screw M4 X 16

250000725

$2.87

930

Thermal Insulation

508001358

$1.82

1000

Pop Off Filter

508000815

$6.83

1010

Push Nut

250001189

$1.11
