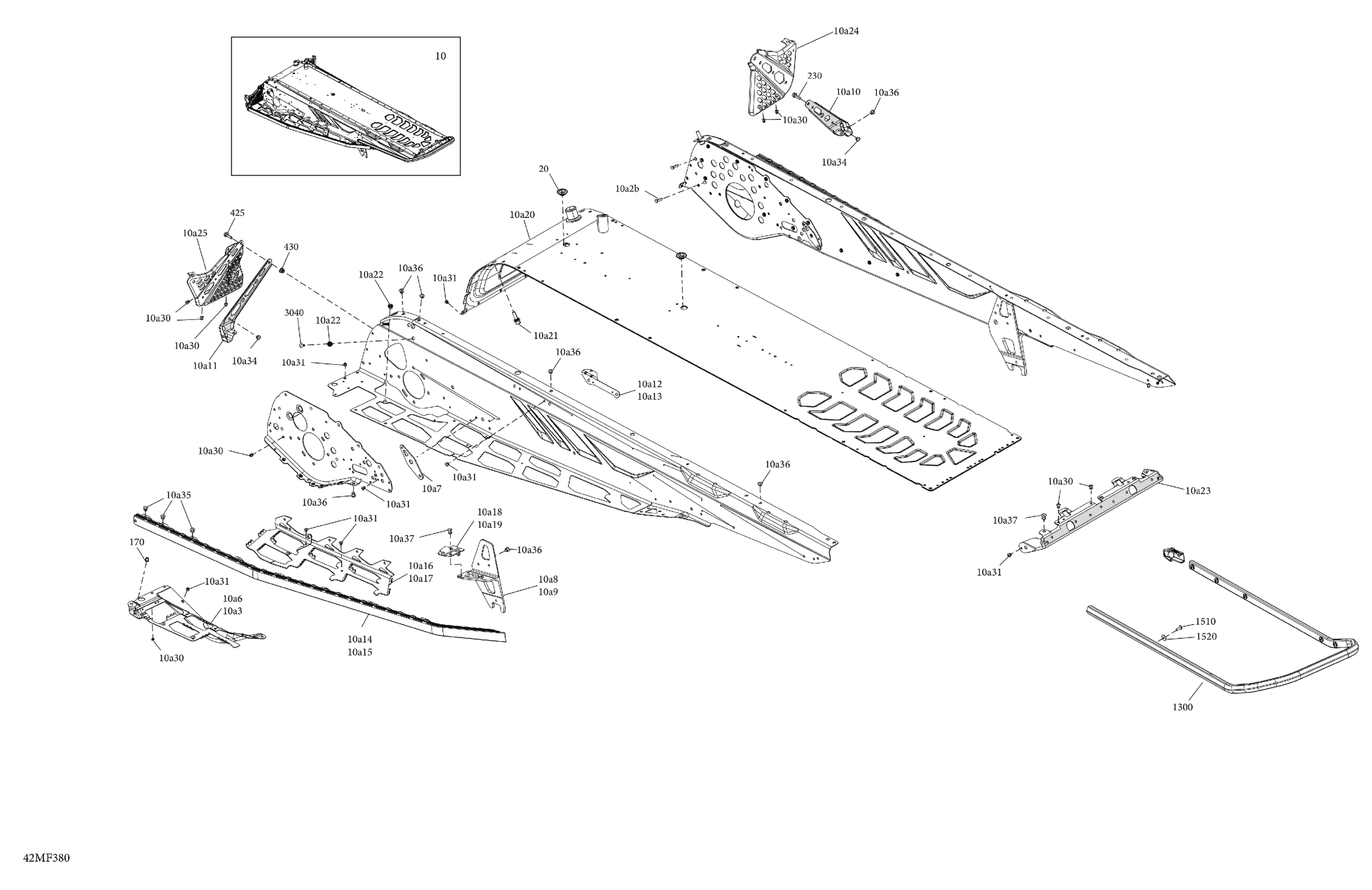

Ski-Doo Europe - BACKCOUNTRY - SPORT - 600 EFI - UBTB - Neo Yellow - 16X146X2.0P Track, 2026 06- Frame - System - Rear Section Diagram

Description

Price

Full Moon, Chassis Tunnel Moduel 146

415131041

Unavailable

10a2b

Clinch Stud M6 X 20

250300027

$2.09

10a3

RH Footrest Reinforcement

518332578

$88.99

10a6

LH Footrest Reinforcement

518332577

$88.99

10a7

Front Suspension Arm Reinforcement

518335959

$4.19

10a8

LH Suspension Support

518336663

$45.99

10a9

RH Suspension Support

518336664

$45.99

10a10

Stirrup Reinforcement

518334507

$21.99

10a11

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a12

LH Member Fixation Plate

518330299

$18.99

10a13

RH Under Chassis Reinforcement

518331745

$19.99

10a14

RH Roller

518328451

$194.99

10a15

LH Roller

518328452

$194.99

10a16

RH Footrest Reinforcement

518336064

$35.99

10a17

LH Footrest Reinforcement

518336063

$35.99

10a18

LH Reinforcement Plate

518329088

$3.39

10a19

RH Reinforcement Plate

518329089

$4.59

10a20

Radiator Tunnel 146

518335127

$739.99

10a21

Protruding Stud M8 x 22

250300652

$4.44

10a22

Clinch Nut M6 Hexsert

605636003

$4.23

10a23

Rear Cap

518328990

$22.49

10a24

RH Footrest

518333006

$40.99

10a25

LH Footrest

518333858

$40.99

10a30

Avex Rivet

390909100

$0.30

10a31

Avex Rivet

390909200

$0.30

10a34

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a35

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a36

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10a37

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper 146

518329553

$169.49

3040

Dart

293730079

$2.09

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37
