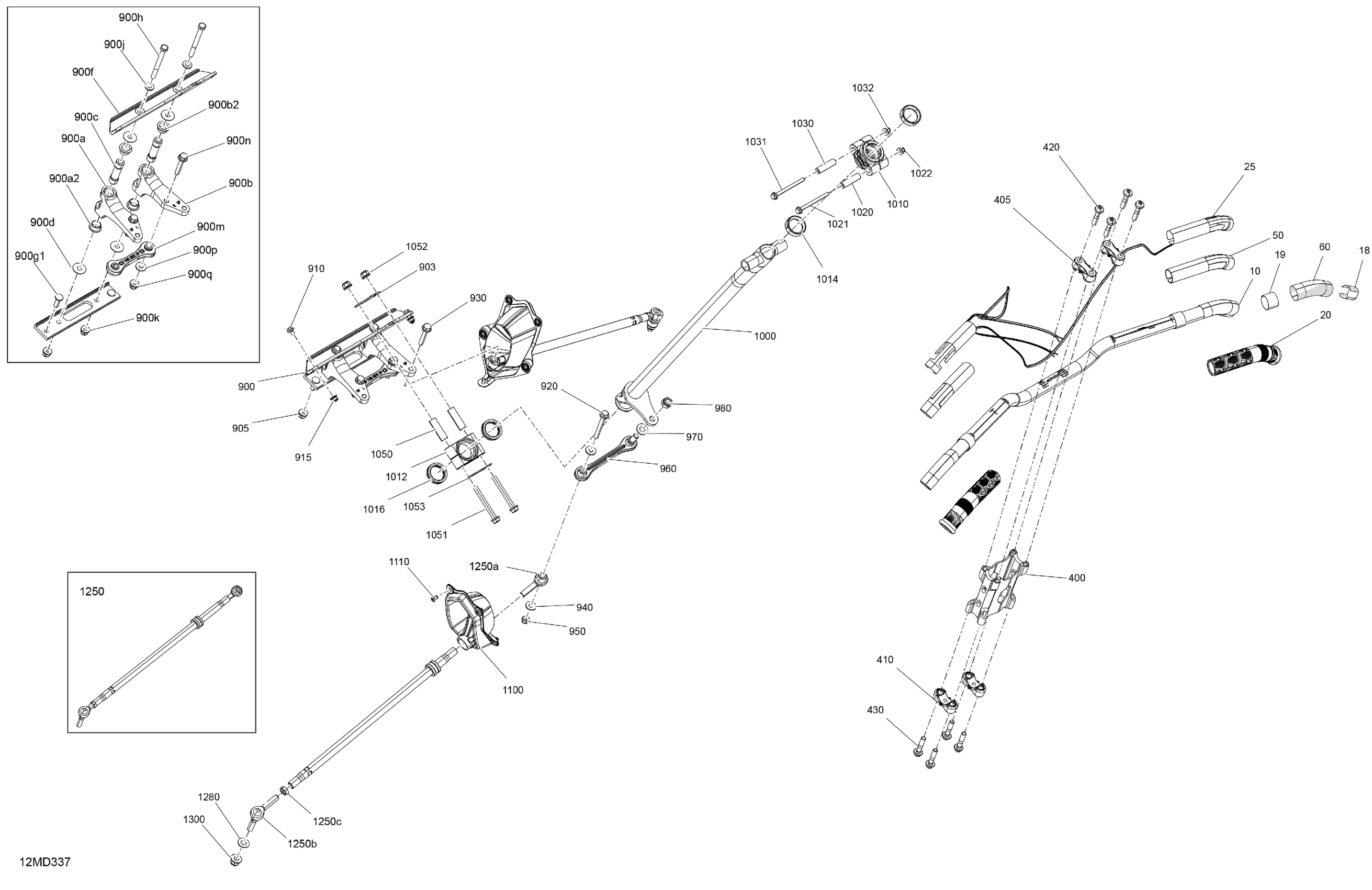

Ski-Doo Europe - BACKCOUNTRY 850 E-TEC - X-RS - UYRW - Neo Mint - 146X16X2.0P Track, 2024 03- Mechanic - Steering Diagram

#

Description
Price

10

Orange Crush, Handlebar

506153220

$121.99

18

Tape

293740005

Unavailable

19

Tape

293740005

Unavailable

20

Grip 148mm

506152560

$16.88

25

Heated Film

506152856

$48.99

50

Thermal Insulation

506153176

$6.09

60

Tape

293740005

Unavailable

400

Riser Kit 120

860201427

$60.49

405

Steering Support

506152894

$14.49

410

Steering Support

506152894

$14.49

420

Button Head Torx Screw M8 X 38

250000904

$2.11

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

900

Steering Arm Ass'y | Includes 900 to 900q

506153366

$239.99

900a

LH Swivel Arm Ass. | Includes 900a to 900a2

506153197

$42.99

900a2

Bushing

503194671

$7.13

900b

RH Swivel Arm | Includes 900b to 900b2

506152790

$42.99

900b2

Bushing

503194671

$7.13

900c

Swivel Pivot

506152792

$28.99

900d

Washer

503191800

$2.11

900f

Steering Support

506153198

$12.99

900g1

Clinch Stud

250300038

$4.29

900h

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

900j

Washer

503192494

$3.17

900k

Elastic Flange Nut M8

233281466

$1.01

900m

Ball Joint

506152755

$51.99

900n

Hex. Flange Screw M6 X 45

250001028

$1.26

900p

Washer

506151245

$0.93

900q

Elastic Flange Nut M8

233281466

$1.01

903

Steering Stopper

506153157

$5.99

905

Hex. Elastic Flange Nut M8

233281416

$1.48

910

Hex. Flange Screw M6 X 20

207662044

$2.00

915

Elastic Flange Nut M6 X 1.0

233261416

$2.11

920

Hex. Flange Screw M8 X 70

207687044

$7.41

930

Hex. Flange Screw M8 X 50

207685044

$1.69

940

Washer

506151245

$0.93

950

Hex. Elastic Flange Nut M8

233281416

$1.48

960

Ball Joint

506152753

$54.99

970

Washer

506152582

$4.55

980

Elastic Stop Nut M10

232500416

$1.90

1000

Main Tube

506153026

$189.99

1010

Upper Half Housing

506152219

$1.79

1012

Lower Half Housing

506153048

$6.92

1014

Upper Vibration Ring

506152292

$0.74

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506153249

$12.99

1021

Hex. Flange Screw M6 x 75

250001114

$4.44

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1030

Housing Bushing

506153249

$12.99

1031

Hex. Flange Screw M6 x 75

250001114

$4.44

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506153248

$12.99

1051

Hex. Flange Screw M8 X 70

207687044

$7.41

1052

Hex. Elastic Flange Nut M8

233281416

$1.48

1053

Stopper Plate

506152938

$12.99

1100

Cap

506153294

$26.99

1110

Pop Rivet 3/16"

293150008

$0.50

1250

Tie Rod Ass'y | Includes 1250 to 1250c

506153302

$86.99

1250a

LH Threaded Ball Joint

506152344

$41.49

1250b

RH Threaded Ball Joint

506152684

$44.49

1250c

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
