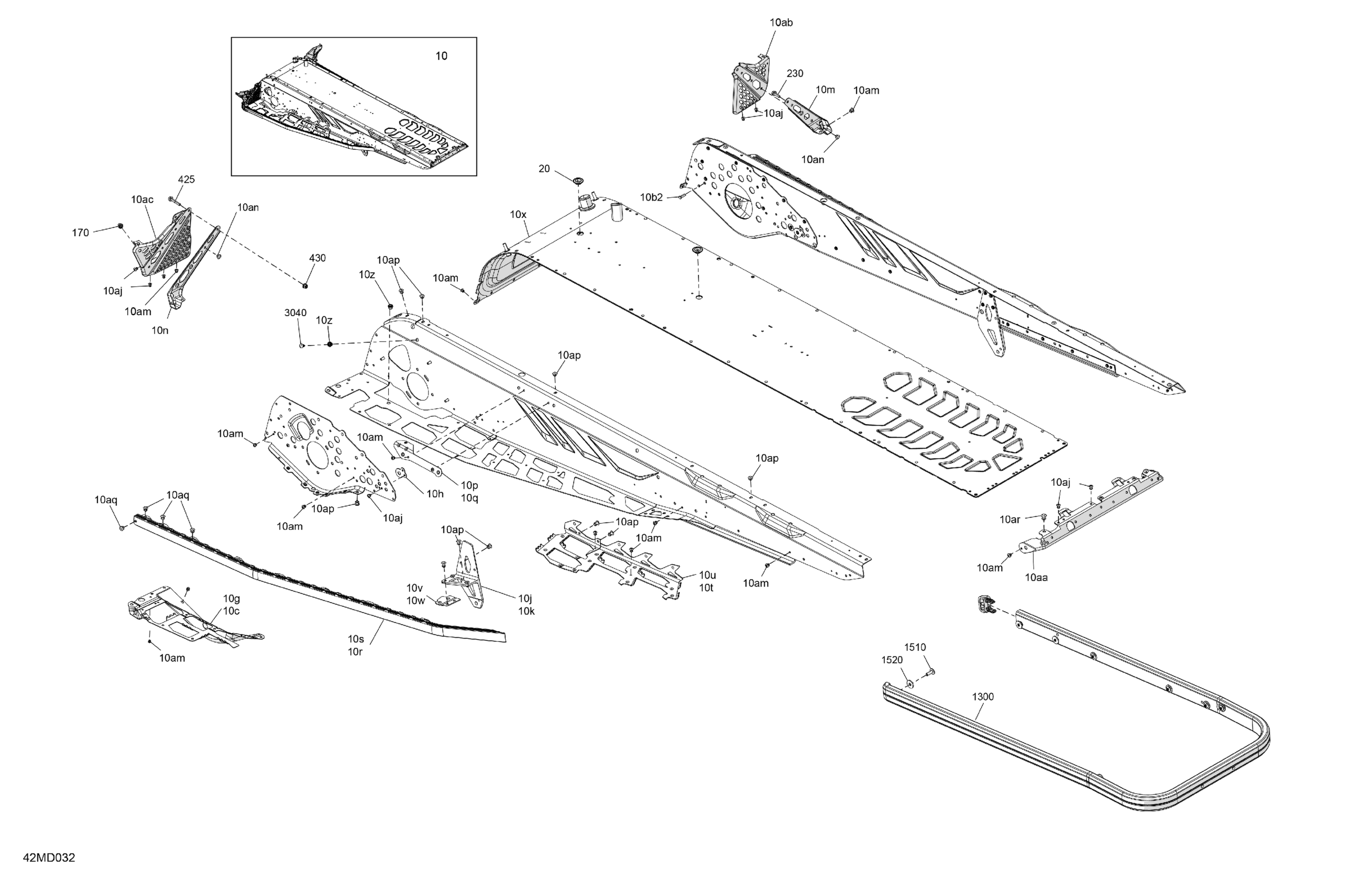

Ski-Doo Europe - BACKCOUNTRY 600 EFI - SPORT - UBRC - Neo Yellow - 146X16X2.0P Track, 2024 Frame - System - Rear Section Diagram

Full Moon, Chassis Tunnel Module 146 | Includes 10 to 10ar

415130763

Unavailable

Clinch Stud M6 X 20

250300027

$1.87

RH Footrest Reinforcement

518332578

$79.07

LH Footrest Reinforcement

518332577

$79.07

Reinforcement Plate

518326647

$4.21

LH Rear Suspension Support

518334390

$41.76

RH Rear Suspension Support

518334391

$93.25

Stirrup Reinforcement

518334507

$17.88

Deep Black, LH Chassis Reinforcement

518332924

$17.88

LH Under Chassis Reinforcement

518331744

$15.64

RH Under Chassis Reinforcement

518331745

$16.39

RH Roller

518328451

$175.34

LH Roller

518328452

$175.34

Central Rear Tunnel Reinforcement

518334842

$32.06

LH Central Reinforcement Tunnel

518334843

$32.06

LH Reinforcement Plate

518329088

$2.99

RH Reinforcement Plate

518329089

$4.09

Radiator Tunnel 146

518334489

$658.93

Clinch Nut M6 Hexsert

605636003

$4.00

Rear Cap

518328990

$20.12

RH Footrest

518333006

$37.28

LH Footrest

518333858

$37.28

Avex Rivet

390909100

$0.28

Avex Rivet

390909200

$0.28

Rivet Ornit 6,5 X 10.5

293150264

$1.88

Rivet Ornit 6,5 X 12.5

293150265

$1.88

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Black, Plug

293730052

$6.18

Insert M5 - 0.8

293450267

$4.09

Hex. Flange Screw M6 X 20

207562056

$2.00

Hex. Flange Screw M6 X 20

207562056

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Rear Bumper 146

518329553

$160.42

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27

Dart

293730079

$1.87
