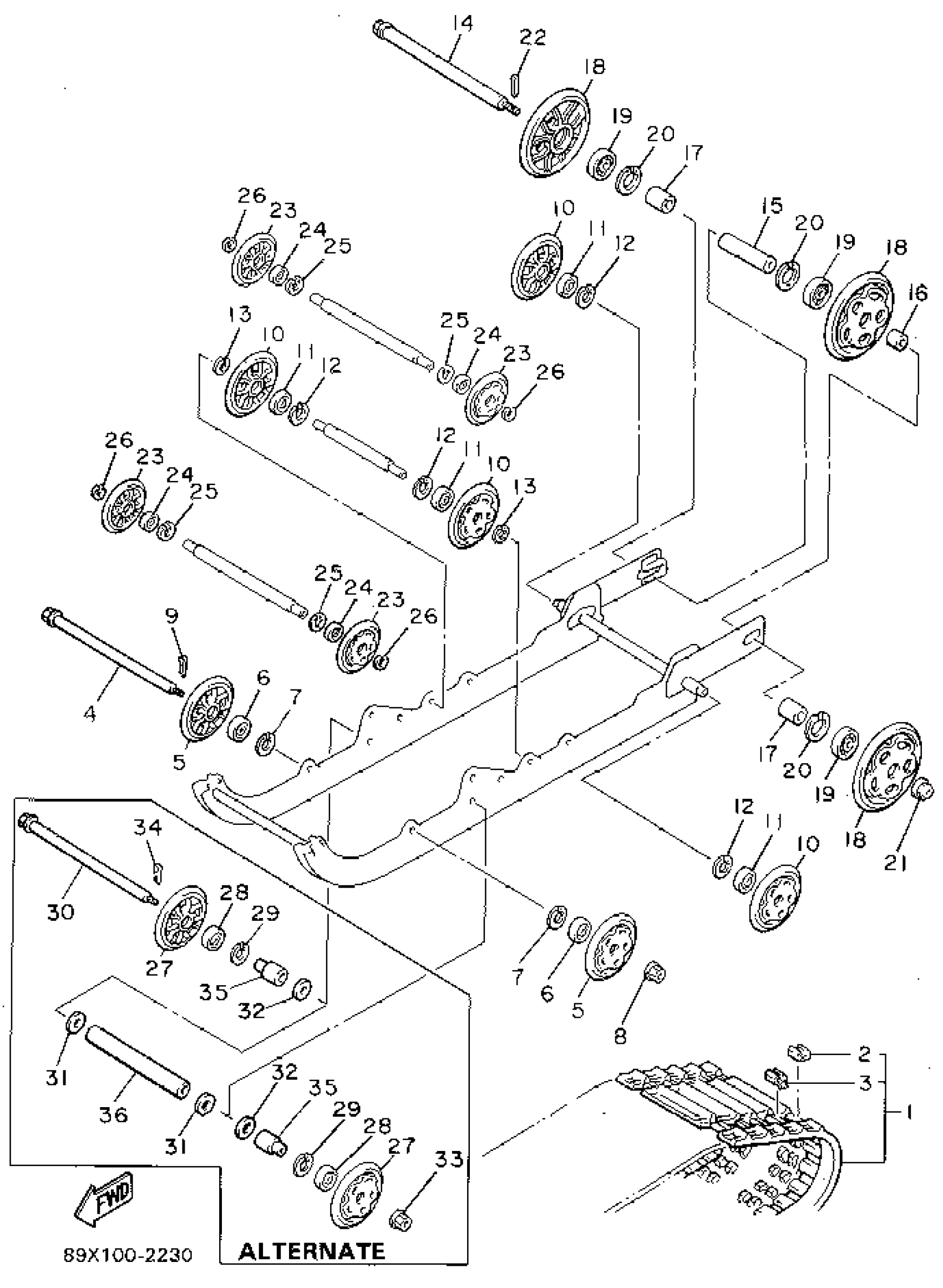

Yamaha ET410TRV (ENTICER II LT) 1995 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8BH-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

4

SHAFT 5 (80X-47487-00-00)

90891-50061-00

Unavailable

5

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

6

BEARING(8AB)

93306-00444-00

$34.26

7

CIRCLIP(5U8)

99009-42500-00

$6.32

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.49

9

PIN, COTTER

91490-30030-00

$6.88

10

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

11

BEARING(8AB)

93306-00444-00

$34.26

12

CIRCLIP(5U8)

99009-42500-00

$6.32

13

CIRCLIP(1AR)

99009-20400-00

$5.75

14

REAR AXLE COMP.

8L8-47520-02-00

$82.30

15

COLLAR

90387-202X4-00

Unavailable

16

COLLAR

90387-202X5-00

Unavailable

17

COLLAR(88Y)

90387-204X2-00

Unavailable

18

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

19

BEARING(8AE)

93306-20469-00

Unavailable

20

CIRCLIP(48Y)

99009-47500-00

Unavailable

21

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.49

22

PIN, COTTER

91490-30030-00

$6.88

23

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

24

BEARING(8AB)

93306-00444-00

$34.26

25

CIRCLIP(5U8)

99009-42500-00

$6.32

26

CIRCLIP(1AR)

99009-20400-00

$5.75

27

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

28

BEARING(8AB)

93306-00444-00

$34.26

29

CIRCLIP(5U8)

99009-42500-00

$6.32

30

SHAFT 5

82M-47487-00-00

Unavailable

31

WASHER, PLATE

90201-164P0-00

Unavailable

32

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

33

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.49

34

PIN, COTTER

91490-30030-00

$6.88

35

COLLAR

90387-166M8-00

Unavailable

36

COLLAR

90387-160M7-00

Unavailable
