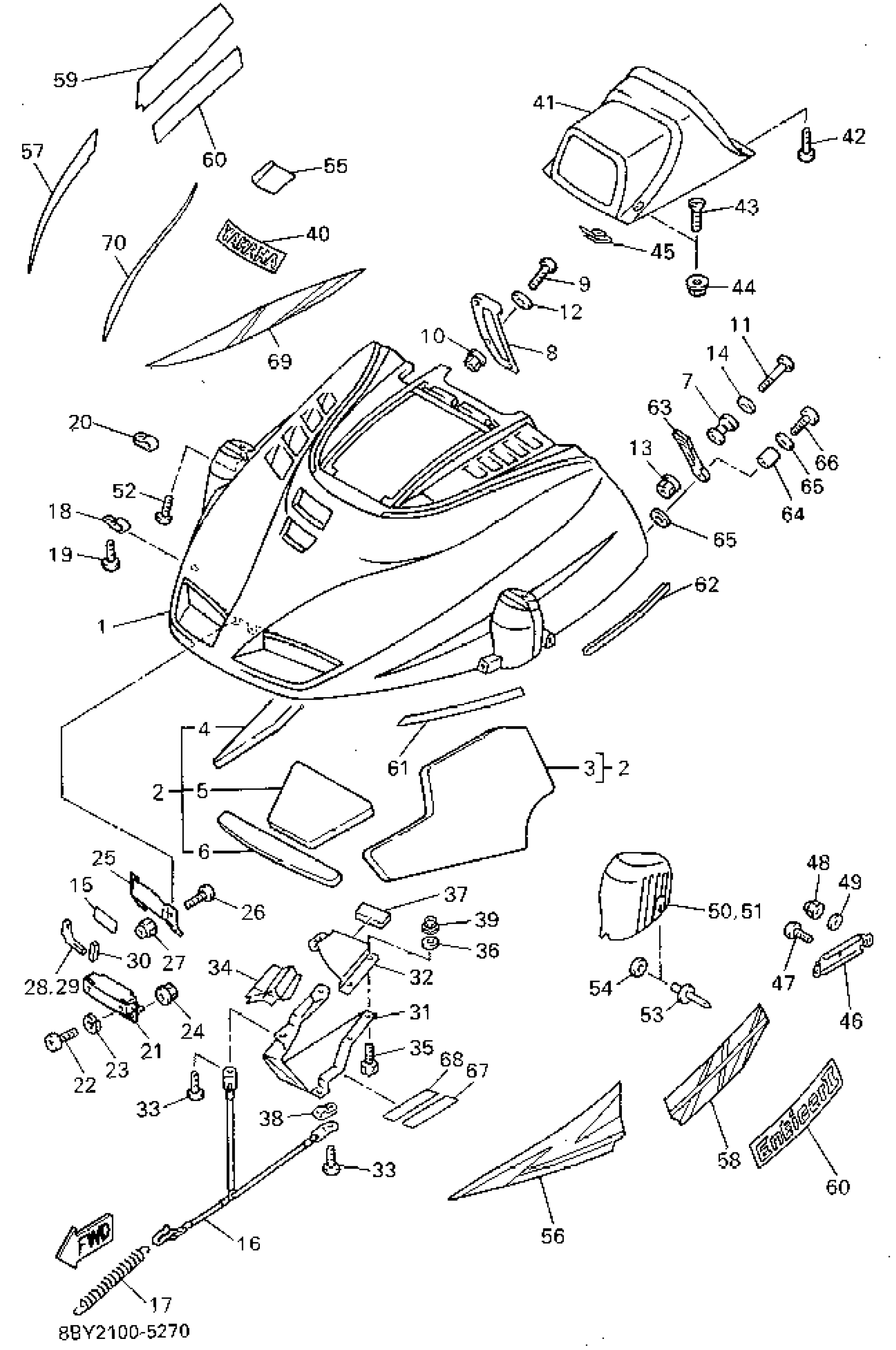

Yamaha ET410TRV (ENTICER II LT) 1995 SHROUD Diagram
#
1
SHROUD ASY
8BY-77111-00-00
Unavailable
2
LINING SET
8BY-W7726-01-00
Unavailable
3
. LINING, SHROUD 2
89X-77262-00-00
Unavailable
4
LINING, SHROUD 3
89X-77263-00-00
Unavailable
5
. LINING, SHROUD 1
88R-77261-00-00
Unavailable
6
. LINING, SHROUD 4
89X-77264-00-00
Unavailable
7
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
8
PROTECTOR 5
89X-77555-00-00
Unavailable
9
SCREW, BINDING
98907-06014-00
$7.99
10
NUT, FLANGE(7NB)
95780-06500-00
$2.60
11
SCREW, BINDING
98907-06035-00
$9.49
12
WASHER PLATE 626441880000
90202-06007-00
$4.15
13
NUT, FLANGE(7NB)
95780-06500-00
$2.60
14
WASHER, PLATE 8221447500
90201-06057-00
$5.60
15
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
16
STOPPER,SHROUD
89X-77118-00-00
Unavailable
17
CLAMP, ROD
80L-77159-00-00
Unavailable
18
CLAMP
90465-20145-00
Unavailable
19
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
20
CLAMP(83R)
90461-08113-00
Unavailable
21
HINGE ASSY
89X-77140-00-00
Unavailable
22
SCREW, BINDING
98907-06020-00
Unavailable
23
WASHER PLATE 626441880000
90202-06007-00
$4.15
24
NUT, FLANGE(7NB)
95780-06500-00
$2.60
25
PLATE 1
89X-77185-00-00
Unavailable
26
SCREW, BIND (J17)
98980-06020-00
Unavailable
27
NUT, U FLANGE
95604-06200-00
Unavailable
28
TRIM 1
89X-77165-00-00
Unavailable
29
TRIM 2
89X-77166-00-00
Unavailable
30
TRIM 3
89X-77167-00-00
Unavailable
31
DUCT
89X-77194-00-00
Unavailable
32
GUIDE 1
89X-77123-00-00
Unavailable
33
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
34
PROTECTOR 3
89X-77553-00-00
Unavailable
35
BOLT(4TW)
97017-05016-00
Unavailable
36
WASHER PLATE 829771780000
90201-05033-00
Unavailable
37
LINING, SHROUD 5
89X-77265-00-00
Unavailable
38
CLAMP(83R)
90461-08113-00
Unavailable
39
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
40
EMBLEM, YAMAHA
99246-00120-00
Unavailable
41
BODY, HEADLIGHT
89X-84311-00-00
Unavailable
42
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
43
SCREW, FLAT
98707-05016-00
Unavailable
44
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
45
NUT, SPRING(8AJ)
90183-05068-00
Unavailable
46
PLATE 2
89X-77186-00-00
Unavailable
47
SCREW, BINDING
98907-05008-00
Unavailable
48
NUT, CAP
95307-05800-00
Unavailable
49
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
50
HOOD 1
89X-77121-00-00
Unavailable
51
HOOD 2
89X-77122-00-00
Unavailable
52
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
53
RIVET, BLIND
90267-48018-00
Unavailable
54
WASHER, PLAIN (3GDF)
90201-051K1-00
Unavailable
55
LABEL, WARNING 3
88T-77763-10-00
Unavailable
56
EMBLEM 3
8BY-77353-10-00
Unavailable
57
EMBLEM 8
8BY-77354-10-00
Unavailable
58
EMBLEM 5
8BY-77355-10-00
Unavailable
59
EMBLEM 6
8BY-77356-10-00
Unavailable
60
EMBLEM 1
8BY-77141-10-00
Unavailable
61
TAPE 1
89X-7717E-00-00
Unavailable
62
TRIM 4
89X-77168-00-00
Unavailable
63
BODY, LATCH 1
8V0-77171-00-00
Unavailable
64
COLLAR (420)
90387-06241-00
Unavailable
65
WASHER, PLATE 8221447500
90201-06057-00
$5.60
66
SCREW, BINDING
98907-06030-00
Unavailable
67
LABEL 1
89X-47578-00-00
Unavailable
68
LABEL, CAUTION
89X-1417E-00-00
Unavailable
69
EMBLEM 7
8BY-77357-10-00
Unavailable
70
EMBLEM 8
8BY-77358-10-00
Unavailable
