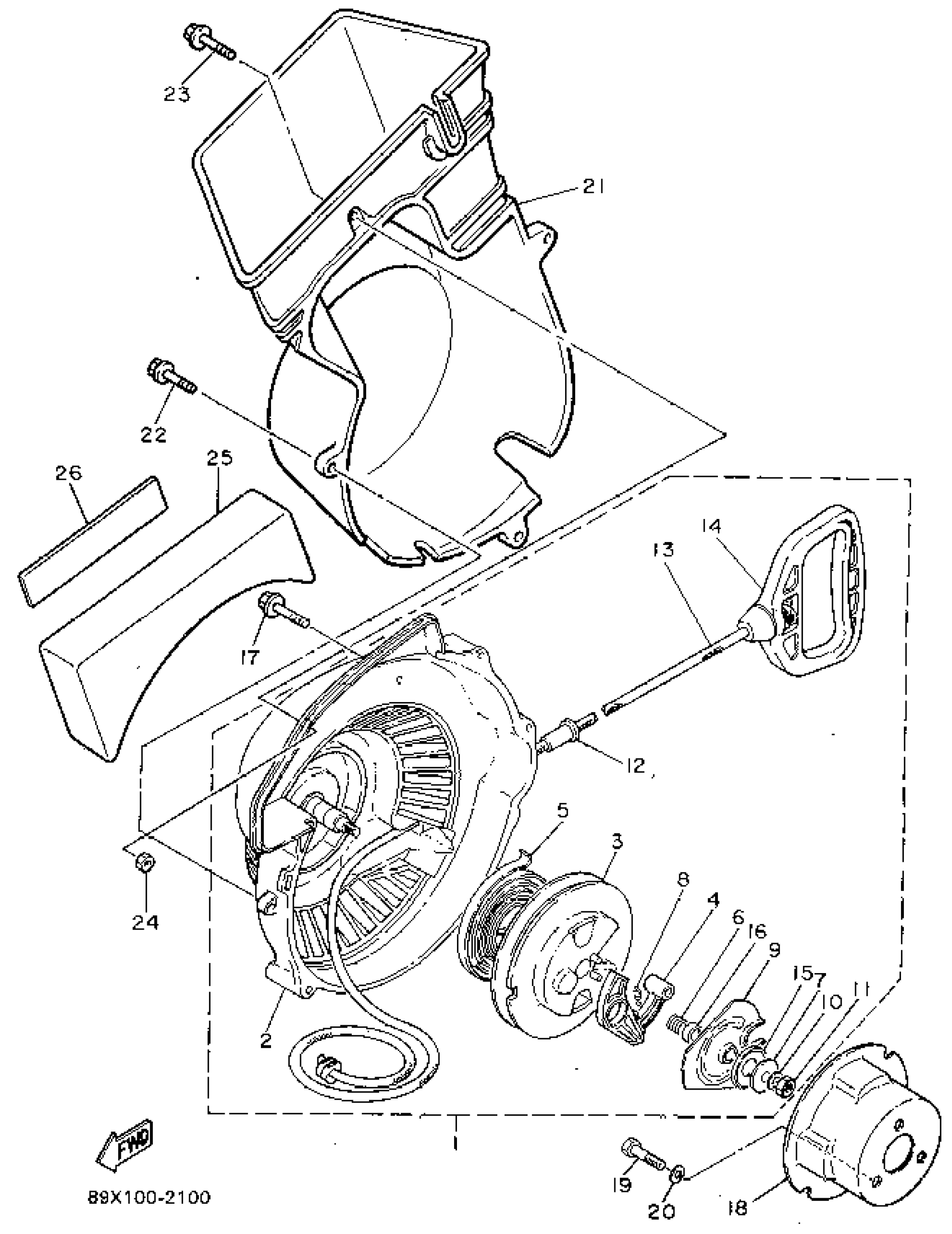

Yamaha ET410TRU (ENTICER II LT) 1994 STARTER Diagram
#
Description
Price
1
STARTER ASSY
85L-15710-00-00
Unavailable
2
. CASE, STARTER
8G8-15711-01-00
Unavailable
3
DRUM, SEAVE
8F3-15714-01-00
$48.99
4
PAWL, DRIVE
8F3-15741-01-00
$28.99
5
SPRING, STARTER
8F3-15713-01-00
$48.99
6
SPRING, DRIVE PLATE
8F3-15715-00-00
$9.99
7
WASHER, THRUST
8F3-15739-01-00
$11.99
8
SPRING, RETURN
8F3-15734-00-00
$5.49
9
PLATE, DRIVE
8F3-15716-03-00
$29.99
10
WASHER, SPRING
92995-06100-00
Unavailable
11
NUT(650)
95380-06700-00
$8.49
12
GUIDE, ROPE
8F3-15758-00-00
$20.99
13
WIRE, STARTER (BRAIDED)
89A-15751-00-00
$33.99
14
HANDLE, STARTER
8F3-15755-00-00
$29.99
15
WASHER, THRUST
8G5-15739-00-00
$9.49
16
COLLOR
82M-15779-00-00
Unavailable
17
BOLT, FLANGE
95817-06045-00
Unavailable
18
PULLEY, STARTER
81L-15723-00-00
Unavailable
19
BOLT, HEXAGON
97017-08016-00
Unavailable
20
WASHER(JN5)
92907-08100-00
Unavailable
21
COVER
85L-15779-00-00
Unavailable
22
BOLT, FLANGE
95817-06030-00
Unavailable
23
BOLT, FLANGE
95817-06030-00
Unavailable
24
NUT
90179-06447-00
Unavailable
25
DEFLECTOR 1
89X-12631-00-00
Unavailable
26
PLATE
89X-12681-00-00
Unavailable
