SECONDARY SHEAVE

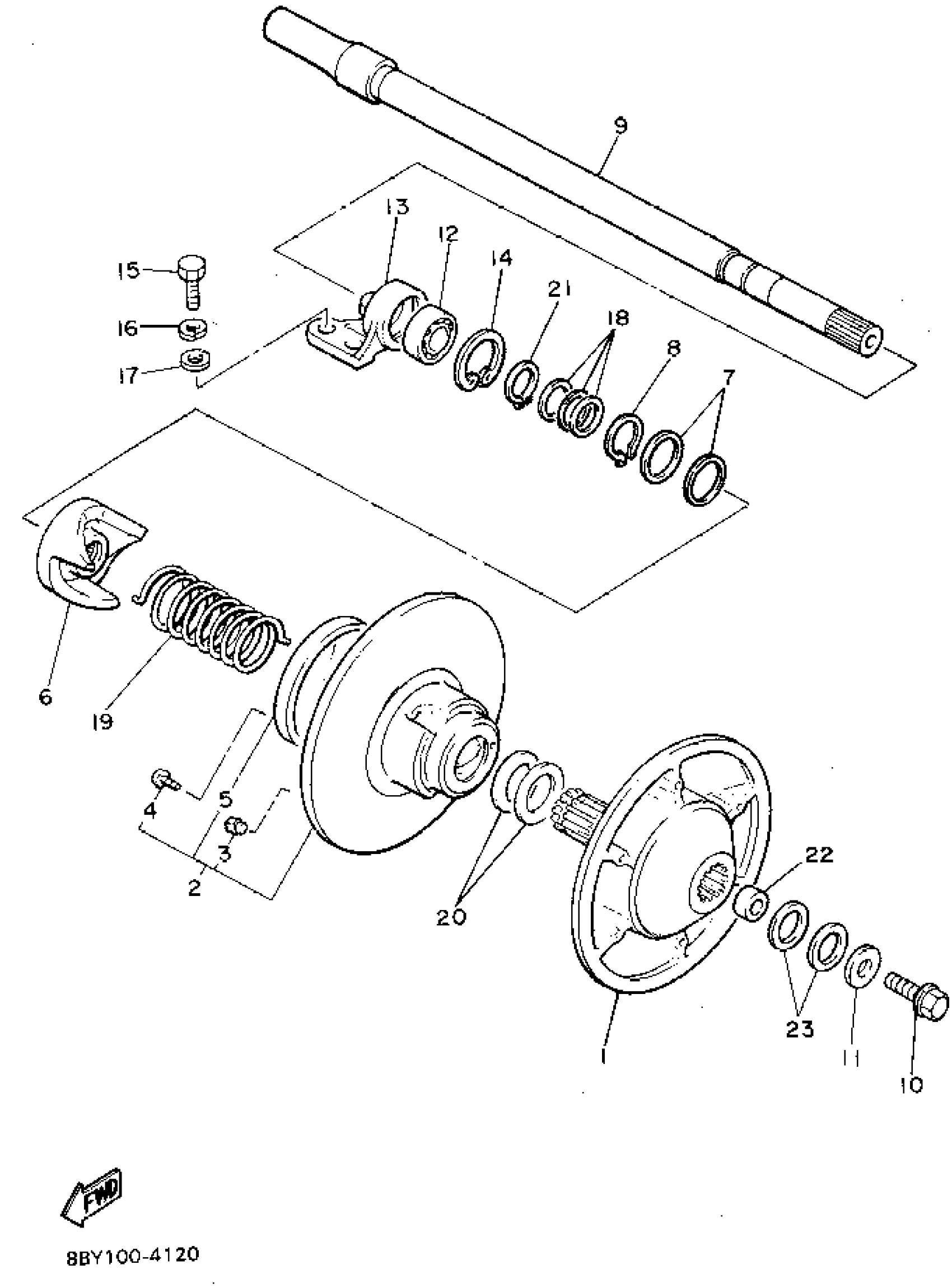

Yamaha ET410TRU (ENTICER II LT) 1994 SECONDARY SHEAVE Diagram
#
Description
Price
1
SECONDARY FIXED SHEAVE COMP.
89N-17660-00-00
Unavailable
2
SECONDARY SLIDING SHEAVE
81H-17670-00-00
Unavailable
3
SHOE RAMP
8X6-17688-00-00
$8.49
4
SCREW, BINDING
98907-06016-00
$9.49
5
BUSH, BIMETAL FORMED (90384-90081-00)
90380-90117-00
Unavailable
6
SEAT, SECONDARY SPRING
88R-17684-03-00
Unavailable
7
WASHER, CLAW(88R)
90214-29060-00
$7.49
8
CIRCLIP(86F)
93440-34170-00
$8.49
9
SHAFT, SECONDARY
88T-17680-01-00
Unavailable
10
BOLT, WASHER BASED
90105-14175-00
Unavailable
11
WASHER, PLATE
90201-140A6-00
Unavailable
12
BEARING(83R)
93306-20582-00
$58.99
13
HOUSING, BEARING
85L-47631-00-00
Unavailable
14
CIRCLIP(26H)
99009-52500-00
$12.49
15
BOLT,HEXAGON
97027-08022-00
Unavailable
16
WASHER(JN5)
92907-08100-00
Unavailable
17
.. WASHER, PLATE
92990-08600-00
Unavailable
18
WASHER, PLATE (8R6)
90201-252F1-00
Unavailable
18
WASHER, PLATE (888)
90201-25526-00
Unavailable
18
WASHER, PLATE (888)
90201-25527-00
Unavailable
19
SPRING, TORSION (8U7)
90508-50571-00
Unavailable
20
WASHER, PLATE (8U9)
90201-345G2-00
Unavailable
21
CIRCLIP (256)
93410-25017-00
Unavailable
22
COLLAR
90387-147A8-00
Unavailable
23
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
23
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
