Description

Price

1

TANK, OIL

85L-21751-03-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

HOSE

90446-09355-00

Unavailable

5

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

6

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

7

HOSE

91A30-07036-00

Unavailable

8

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

9

SPRG., COMPRESSION (8BY1)

90501-083J9-00

Unavailable

10

PIPE, JOINT

8H8-24376-00-00

Unavailable

11

PIPE, JOINT

801-24376-00-00

Unavailable

12

CLIP (8A1)

90467-09026-00

$3.28

13

CLIP

90467-11028-00

Unavailable

14

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

15

BOLT, HEXAGON

97017-06020-00

$4.06

16

WASHER, SPRING

92995-06100-00

Unavailable

17

COLLAR (8G8)

90387-06681-00

Unavailable

18

BRACKET, OIL TANK 2

89X-2193F-00-00

Unavailable

19

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

20

BOLT, FLANGE

95817-06016-00

Unavailable

21

ROLLER, WIRE

89X-15752-00-00

Unavailable

22

COLLAR(650)

90387-06504-00

Unavailable

23

PIN

90249-06222-00

Unavailable

24

CIRCLIP (EU0)

99080-04600-00

Unavailable

25

GUIDE, ROPE

89X-15758-00-00

Unavailable

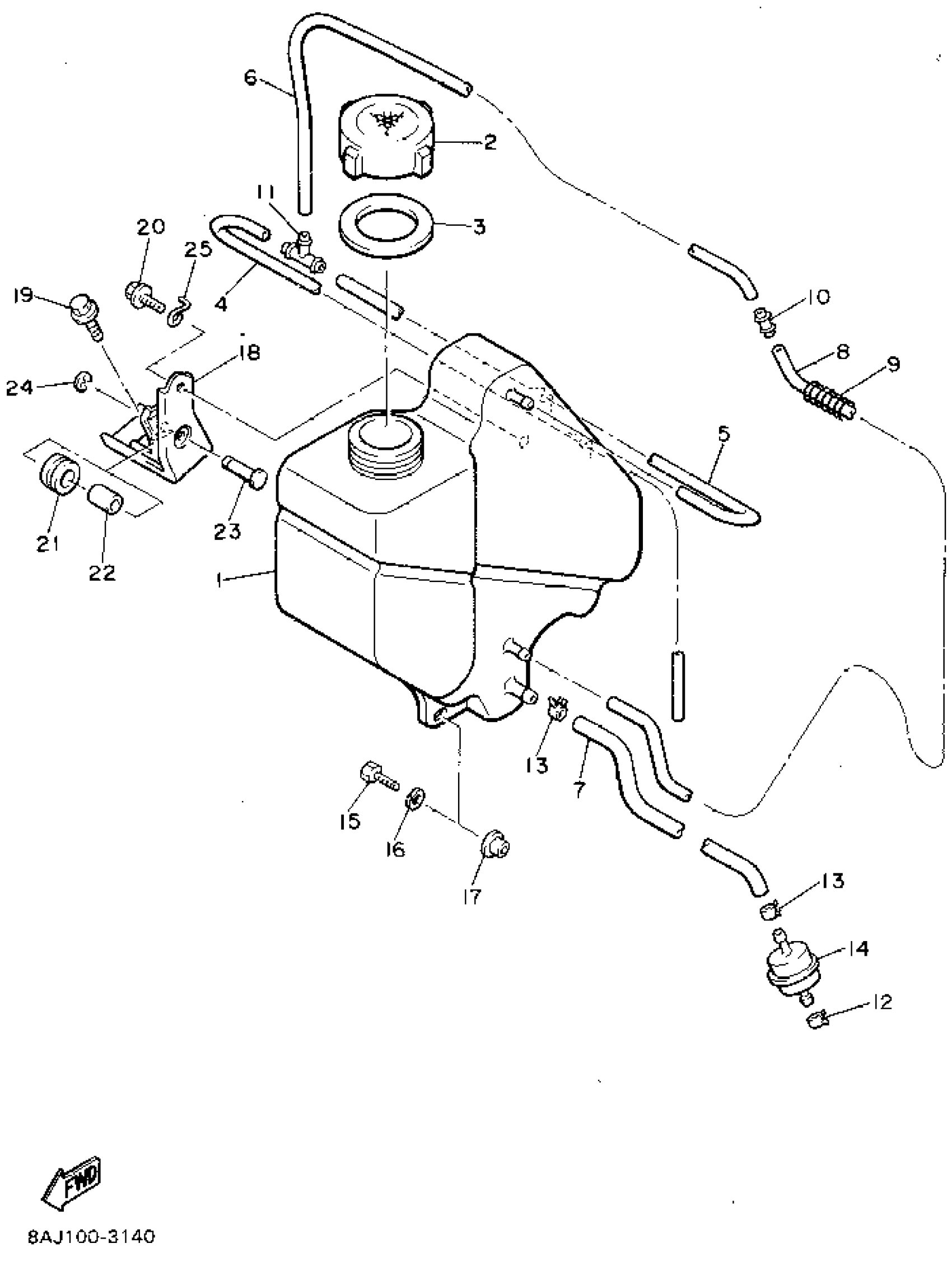

Yamaha ET410TRU (ENTICER II LT) 1994 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

HOSE

TUBE, FLEXIBLE VINYL(8AK)

TUBE,FLEXIBLE VINYL(85R)

HOSE

TUBE, FLEXIBLE VINYL(8AT)

SPRG., COMPRESSION (8BY1)

PIPE, JOINT

PIPE, JOINT

CLIP (8A1)

CLIP

HOUSING STRAINER ASSY

BOLT, HEXAGON

WASHER, SPRING

COLLAR (8G8)

BRACKET, OIL TANK 2

BOLT, FLANGE(JN5)

BOLT, FLANGE

ROLLER, WIRE

COLLAR(650)

PIN

CIRCLIP (EU0)

GUIDE, ROPE
