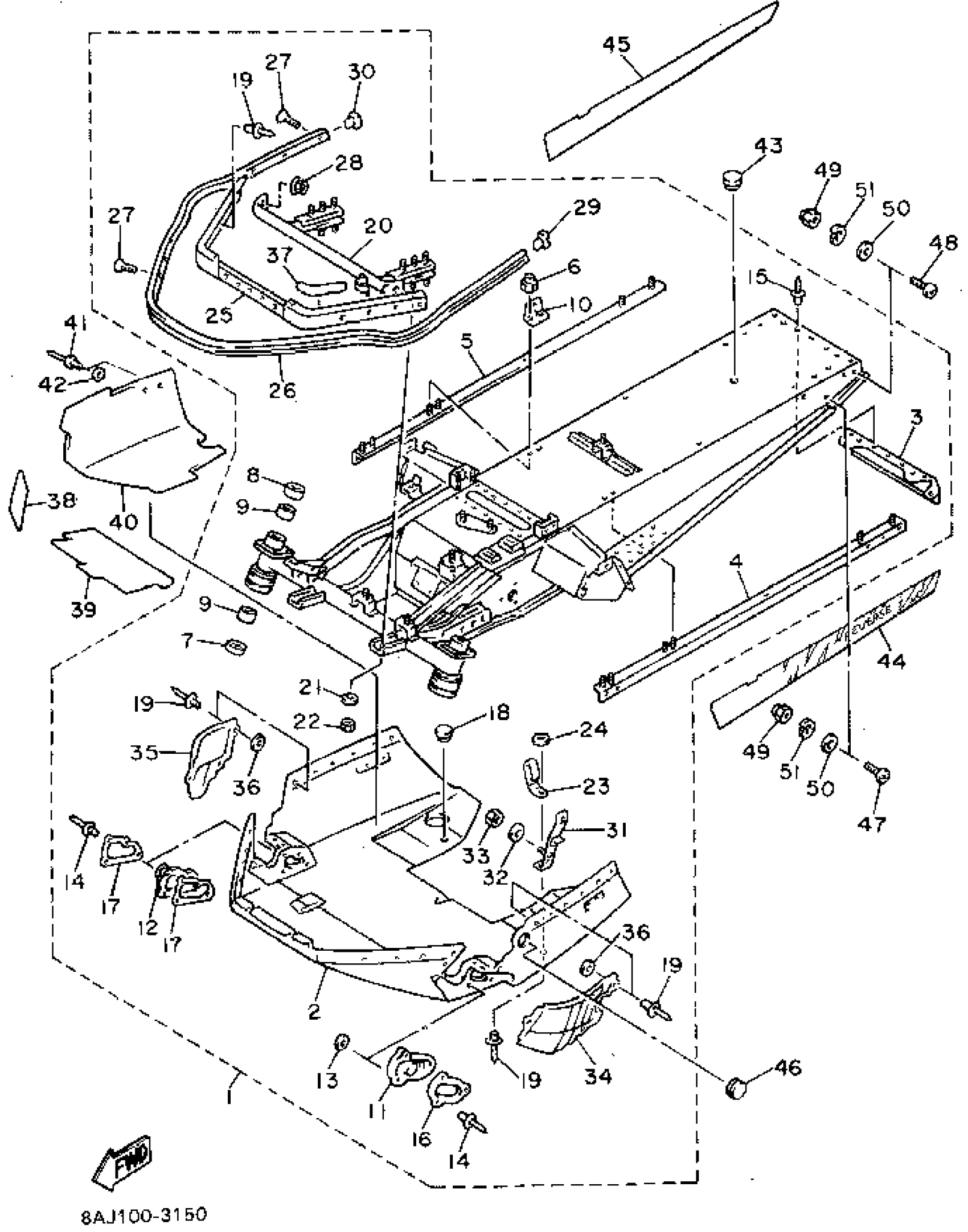

Yamaha ET410TRU (ENTICER II LT) 1994 FRAME Diagram
#
1
FRAME COMP.
89Y-21910-00-00
Unavailable
2
. PANEL, SUB FRAME 1
89X-21912-00-00
Unavailable
3
. REINEFORCEMENT, FRAME REAR 1
8X0-21923-00-00
Unavailable
4
. PATCH 4
89X-21964-00-00
Unavailable
5
. PATCH 5
89X-21965-00-00
Unavailable
6
NUT, NYLON
95707-06300-00
$3.50
7
OIL SEAL (8M6)
93103-36117-00
$21.99
8
OIL SEAL (8M6)
93102-36232-00
$11.49
9
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
10
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
11
COVER 1
8M6-2198F-00-00
$31.99
12
. COVER 2
80L-2198G-00-00
Unavailable
13
WASHER, PLATE
90201-04027-00
$3.02
14
RIVET, BLIND
90267-40029-00
$8.49
15
RIVET
90269-04019-00
Unavailable
16
SPACER
8M6-21998-00-00
Unavailable
17
. WASHER 2
80L-77526-00-00
Unavailable
18
SPACER
80F-21998-00-00
Unavailable
19
RIVET, BLIND
90267-48018-00
Unavailable
20
. BUMPER, FRONT 2
89X-77512-00-00
Unavailable
21
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
22
NUT, NYLON
95717-08300-00
Unavailable
23
CLAMP(51Y)
90465-08277-00
Unavailable
24
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
25
. PLATE, BACK UP 1
89X-77153-00-00
Unavailable
26
BUMPER, FRONT 1
89X-77511-A0-00
Unavailable
27
SCREW, FLAT HEAD(JH8)
98707-08035-00
Unavailable
28
NUT, FLANGE
95704-08500-00
Unavailable
29
. END, BUMPER
89X-77523-00-00
Unavailable
30
. END, BUMPER
89X-77524-00-00
Unavailable
31
. STAY, BELT
89X-77338-00-00
Unavailable
32
WASHER, PLATE (214-27417-00)
90201-06042-00
Unavailable
33
NUT(6TA)
95317-06600-00
Unavailable
34
. COVER 1
89X-2198F-00-00
Unavailable
35
. COVER 2
89X-2198G-00-00
Unavailable
36
WASHER, PLATE
90201-04027-00
$3.02
37
. PROTECTOR, FRAME
89X-21978-00-00
Unavailable
38
SHIELD, NOISE
89X-2199F-00-00
Unavailable
39
SHIELD, HEAT
89X-2199H-00-00
Unavailable
40
SHIELD, NOISE 2
89X-2199J-00-00
Unavailable
41
RIVET, BLIND
90267-48018-00
Unavailable
42
WASHER, PLATE
90201-04027-00
$3.02
43
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
44
EMBLEM 1
8BY-77351-00-00
Unavailable
45
EMBLEM 2
8BY-77352-00-00
Unavailable
46
PLUG (8H8)
90338-44093-00
Unavailable
47
SCREW,BINDING
98907-08014-00
Unavailable
48
SCREW, BINDING
98907-08016-00
Unavailable
49
NUT, CROWN
95303-08800-00
Unavailable
50
WASHER, PLAIN
92990-08200-00
Unavailable
51
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
