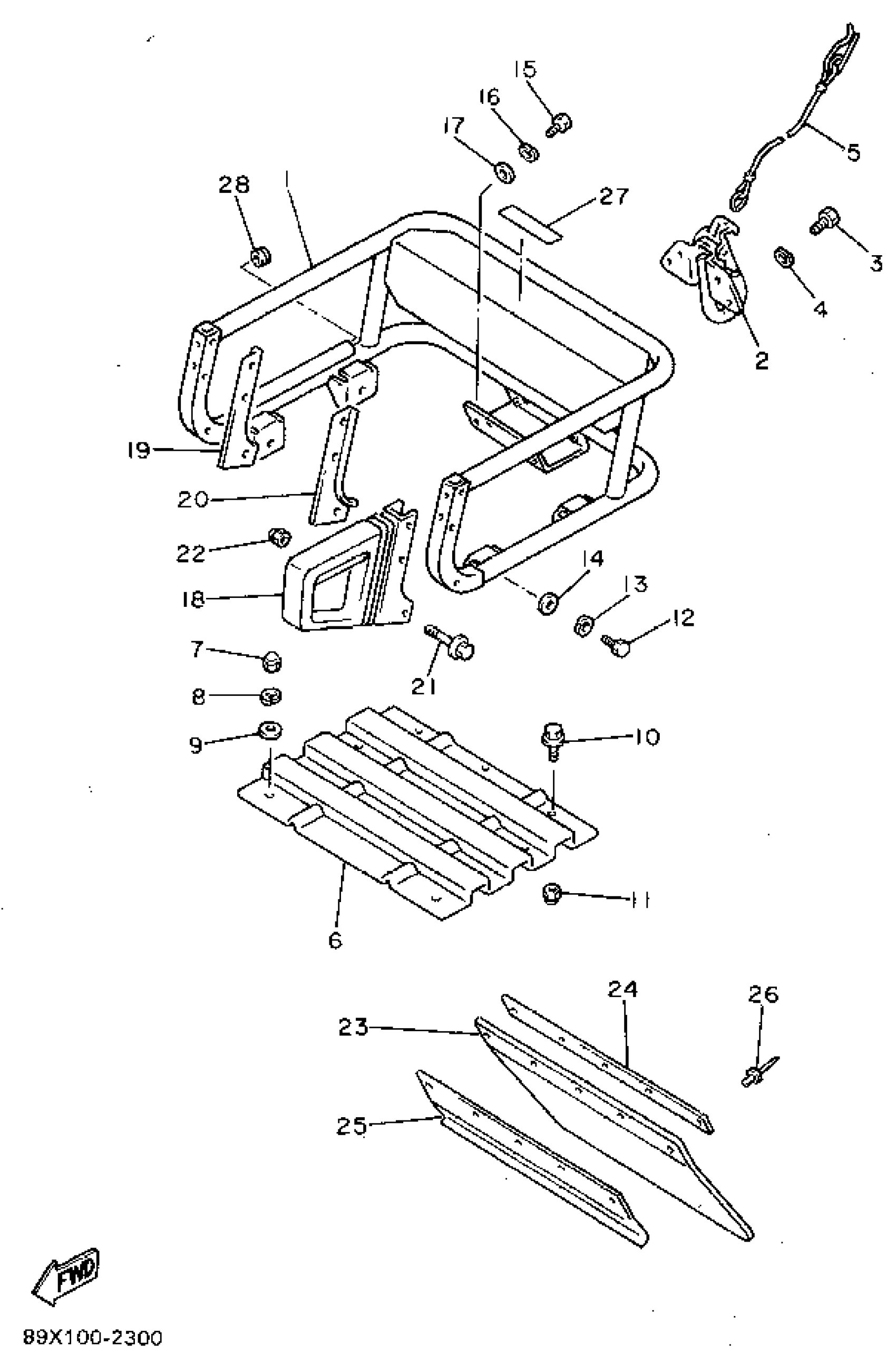

Yamaha ET410TRU (ENTICER II LT) 1994 BUMPER Diagram
#
Description
Price
1
BUMPER, REAR 1
89X-77541-00-00
Unavailable
2
BRACKET, HITCH 1
86D-77591-00-00
$85.99
3
BOLT, HEXAGON
97017-08020-00
$9.49
4
WASHER(JN5)
92907-08100-00
$8.49
5
PIN, HINGE
8U1-77157-00-00
$16.99
6
PROTECTOR 4
89X-77554-00-00
Unavailable
7
NUT, CAP
95307-08800-00
$7.49
8
WASHER(JN5)
92907-08100-00
$8.49
9
WASHER(6TA)
92907-08600-00
$3.03
10
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
11
NUT, NYLON
95717-08300-00
$2.70
12
BOLT, HEXAGON
97017-08016-00
$8.49
13
WASHER(JN5)
92907-08100-00
$8.49
14
WASHER(6TA)
92907-08600-00
$3.03
15
BOLT, HEXAGON
97027-08018-00
Unavailable
16
WASHER(JN5)
92907-08100-00
$8.49
17
WASHER(6TA)
92907-08600-00
$3.03
18
GRIP, ASSIST 1
8X0-77571-00-00
Unavailable
19
WASHER 1
8X0-77525-00-00
Unavailable
20
WASHER 2
8X0-77526-00-00
Unavailable
21
BOLT, FLANGE
95817-08040-00
Unavailable
22
NUT, CROWN(82U)
90176-08063-00
Unavailable
23
FLAP
88K-77595-20-00
Unavailable
24
STOPPER, FLAP
89X-77596-00-00
Unavailable
25
PROTECTOR 6
89X-77556-00-00
Unavailable
26
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
27
EMBLEM
3GX-24897-00-00
Unavailable
28
GROMMET (8L1)
90480-15268-00
Unavailable
