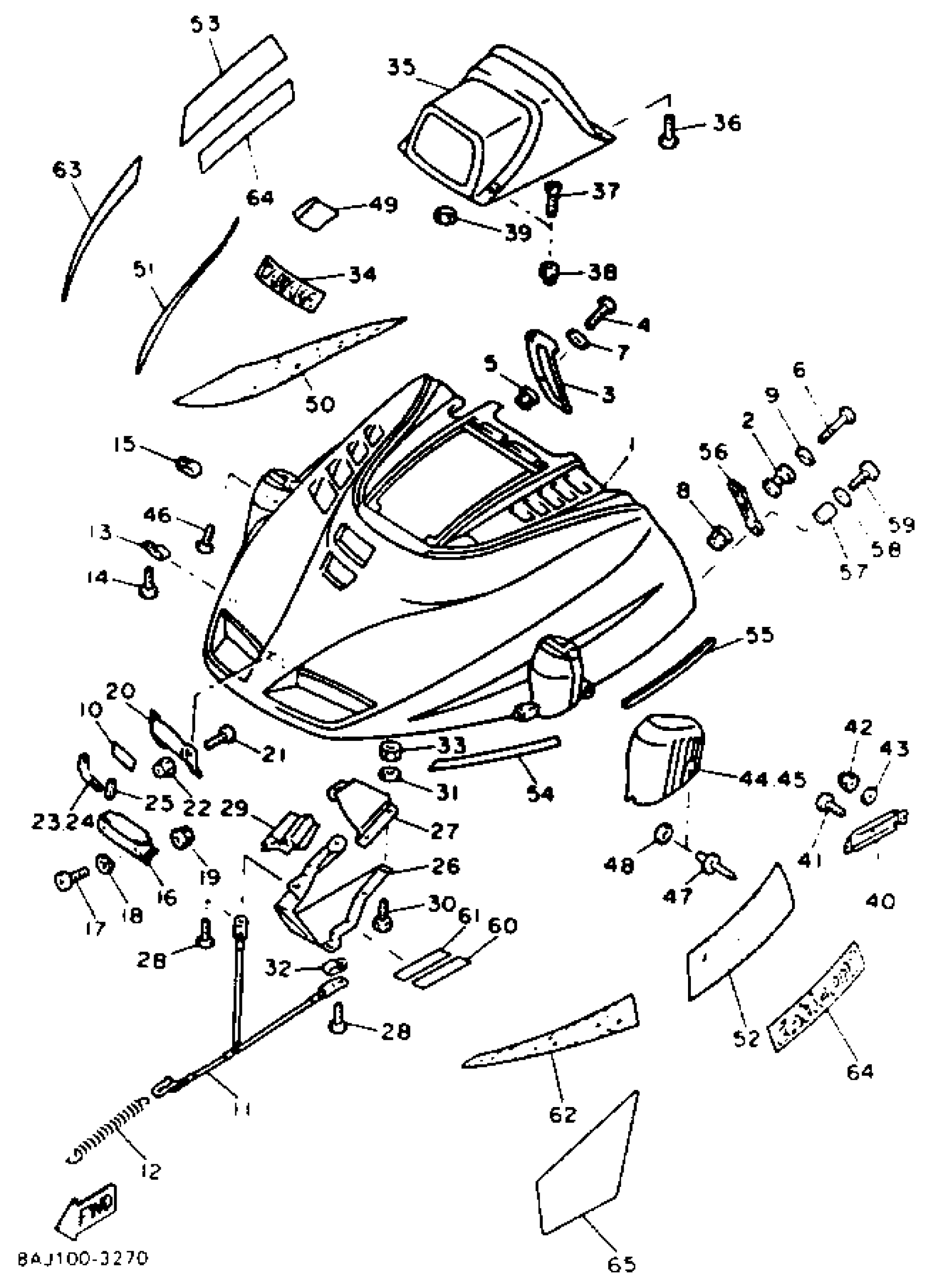

Yamaha ET410TRT (ENTICER II LT) 1993 SHROUD Diagram
#
1
SHROUD
8AJ-77111-00-00
Unavailable
2
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
3
PROTECTOR 5
89X-77555-00-00
Unavailable
4
SCREW, BINDING
98907-06014-00
$7.99
5
NUT, FLANGE(7NB)
95780-06500-00
$2.60
6
SCREW, BINDING
98907-06035-00
$9.49
7
WASHER PLATE 626441880000
90202-06007-00
$4.15
8
NUT, FLANGE(7NB)
95780-06500-00
$2.60
9
WASHER, PLATE 8221447500
90201-06057-00
$5.60
10
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
11
STOPPER,SHROUD
89X-77118-00-00
Unavailable
12
CLAMP, ROD
80L-77159-00-00
Unavailable
13
CLAMP
90465-20145-00
Unavailable
14
SCREW, TRUSS TAP.
97707-50014-00
$8.49
15
CLAMP(83R)
90461-08113-00
Unavailable
16
HINGE ASSY
89X-77140-00-00
Unavailable
17
SCREW, BINDING
98907-06020-00
Unavailable
18
WASHER PLATE 626441880000
90202-06007-00
$4.15
19
NUT, FLANGE(7NB)
95780-06500-00
$2.60
20
PLATE 1
89X-77185-00-00
Unavailable
21
SCREW, BIND (J17)
98980-06020-00
Unavailable
22
NUT, U FLANGE
95604-06200-00
Unavailable
23
TRIM 1
89X-77165-00-00
Unavailable
24
TRIM 2
89X-77166-00-00
Unavailable
25
TRIM 3
89X-77167-00-00
Unavailable
26
DUCT
89X-77194-00-00
Unavailable
27
GUIDE 1
89X-77123-00-00
Unavailable
28
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
29
PROTECTOR 3
89X-77553-00-00
Unavailable
30
BOLT(4TW)
97017-05016-00
Unavailable
31
WASHER PLATE 829771780000
90201-05033-00
Unavailable
32
CLAMP(83R)
90461-08113-00
Unavailable
33
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
34
EMBLEM, YAMAHA
99246-00100-00
Unavailable
35
BODY, HEADLIGHT
89X-84311-00-00
Unavailable
36
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
37
SCREW, FLAT
98707-05016-00
Unavailable
38
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
39
NUT, SPRING(8AJ)
90183-05068-00
Unavailable
40
PLATE 2
89X-77186-00-00
Unavailable
41
SCREW, BINDING
98907-05008-00
Unavailable
42
NUT, CAP
95307-05800-00
Unavailable
43
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
44
HOOD 1
89X-77121-00-00
Unavailable
45
HOOD 2
89X-77122-00-00
Unavailable
46
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
47
RIVET, BLIND
90267-48018-00
Unavailable
48
WASHER, PLAIN (3GDF)
90201-051K1-00
Unavailable
49
LABEL, WARNING 3
88T-77763-00-00
Unavailable
50
EMBLEM 7
8AJ-77357-00-00
Unavailable
51
EMBLEM 8
8AJ-77358-00-00
Unavailable
52
EMBLEM 5
8AJ-77355-00-00
Unavailable
53
EMBLEM 6
8AJ-77356-00-00
Unavailable
54
TAPE 1
89X-7717E-00-00
Unavailable
55
TRIM 4
89X-77168-00-00
Unavailable
56
BODY, LATCH 1
8V0-77171-00-00
Unavailable
57
COLLAR (420)
90387-06241-00
Unavailable
58
WASHER, PLATE 8221447500
90201-06057-00
$5.60
59
SCREW, BINDING
98907-06030-00
Unavailable
60
LABEL 1
89X-47578-00-00
Unavailable
61
LABEL, CAUTION
89X-1417E-00-00
Unavailable
62
EMBLEM 3
8AJ-77353-00-00
Unavailable
63
EMBLEM 4
8AJ-77354-00-00
Unavailable
64
EMBLEM 1
8AJ-77141-00-00
Unavailable
65
LINING, SHROUD 3
89X-77263-00-00
Unavailable
