Description

Price

1

SECONDARY FIXED SHEAVE COMP.

89N-17660-00-00

Unavailable

2

SECONDARY SLIDING SHEAVE

81H-17670-00-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SCREW, BINDING

98907-06016-00

$9.49

5

BUSH, BIMETAL FORMED (90384-90081-00)

90380-90117-00

Unavailable

6

SEAT, SECONDARY SPRING

88R-17684-03-00

Unavailable

6

SEAT, SECONDARY SPRING

89N-17684-01-00

Unavailable

7

WASHER, CLAW(88R)

90214-29060-00

$7.49

8

CIRCLIP(86F)

93440-34170-00

$8.49

9

SHAFT, SECONDARY

89X-17680-00-00

Unavailable

10

BOLT, FLANGE

95817-10020-00

$8.49

11

WASHER, PLATE(42X)

90201-105H3-00

$7.49

12

BEARING(83R)

93306-20582-00

$58.99

13

HOUSING, BEARING

85L-47631-00-00

Unavailable

14

CIRCLIP(26H)

99009-52500-00

$12.49

15

BOLT,HEXAGON

97027-08022-00

Unavailable

16

WASHER(JN5)

92907-08100-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

Unavailable

18

WASHER, PLATE (888)

90201-25527-00

Unavailable

19

SPRING, TORSION (8U7)

90508-50571-00

Unavailable

20

WASHER, PLATE (8U9)

90201-345G2-00

Unavailable

21

CIRCLIP (256)

93410-25017-00

Unavailable

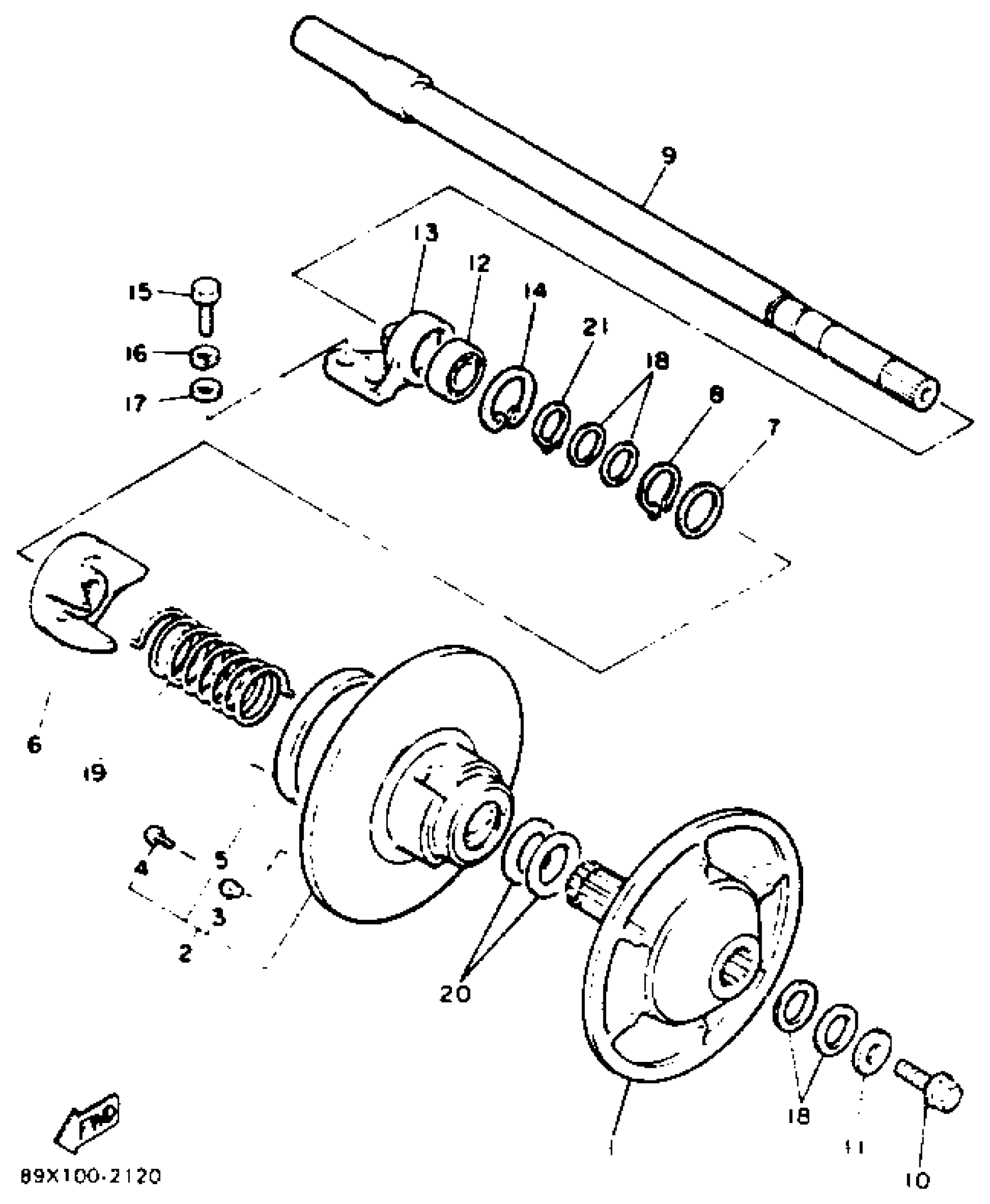

Yamaha ET410TRT (ENTICER II LT) 1993 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SECONDARY SLIDING SHEAVE

SHOE RAMP

SCREW, BINDING

BUSH, BIMETAL FORMED (90384-90081-00)

SEAT, SECONDARY SPRING

SEAT, SECONDARY SPRING

WASHER, CLAW(88R)

CIRCLIP(86F)

SHAFT, SECONDARY

BOLT, FLANGE

WASHER, PLATE(42X)

BEARING(83R)

HOUSING, BEARING

CIRCLIP(26H)

BOLT,HEXAGON

WASHER(JN5)

.. WASHER, PLATE

WASHER, PLATE (888)

SPRING, TORSION (8U7)

WASHER, PLATE (8U9)

CIRCLIP (256)
