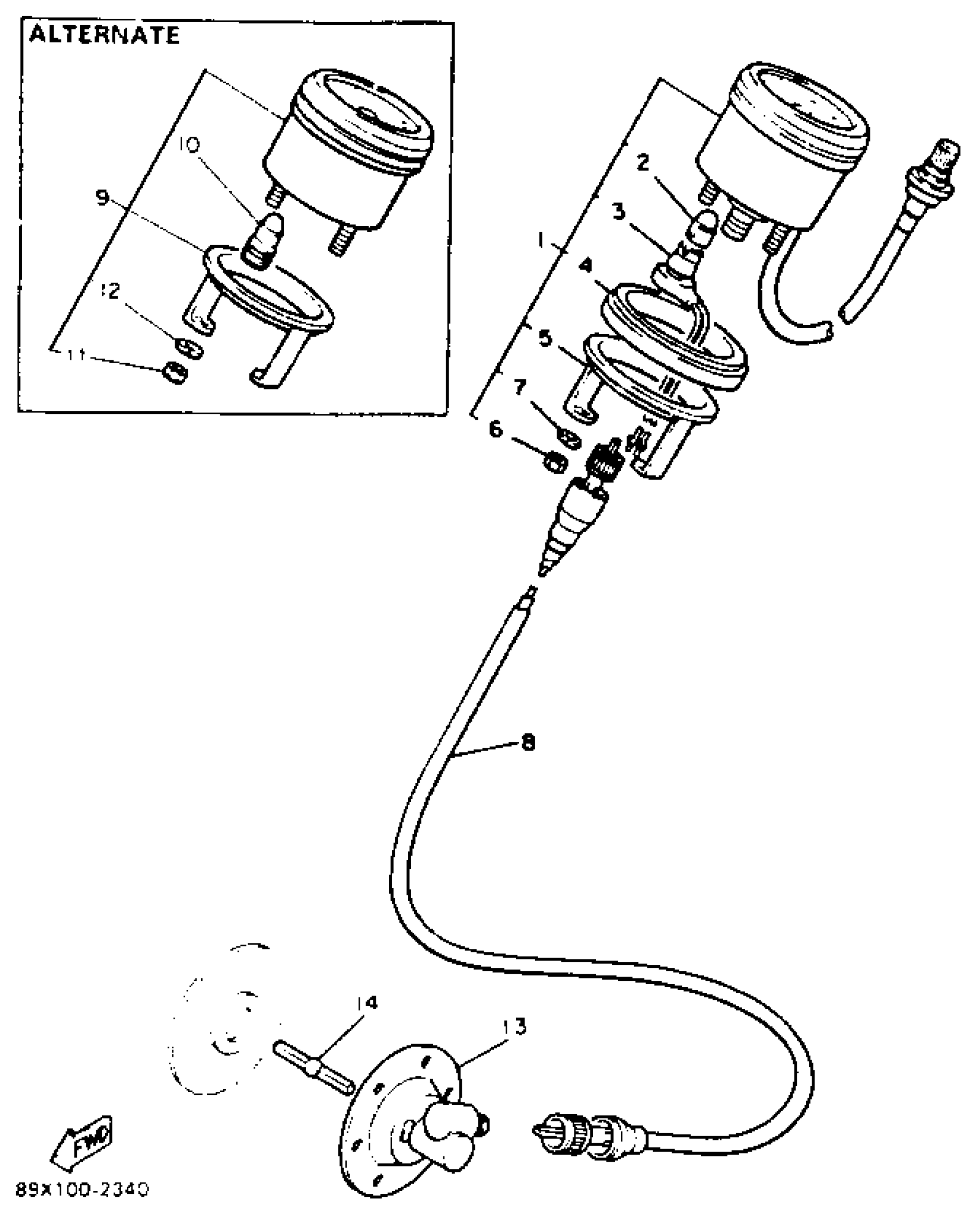

Yamaha ET410TRT (ENTICER II LT) 1993 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY (MILE/H)

88T-83510-40-00

Unavailable

2

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.64

3

SOCKET CORD ASSY

5E2-83509-20-00

$24.52

4

DAMPER

88T-83523-00-00

Unavailable

5

. BRACKET, METER

8G6-83519-00-00

Unavailable

6

NUT, HEXAGON (663)

95380-05600-00

$6.08

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

SPEEDOMETER CABLE ASSY

89A-83550-00-00

Unavailable

9

TACHOMETER ASSY

85L-83540-00-00

$327.95

10

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.64

11

NUT, HEXAGON (663)

95380-05600-00

$6.08

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

METER GEAR HOUSING COMP

8Y1-47700-00-00

$63.47

14

JOINT

8K4-47715-00-00

$4.29
