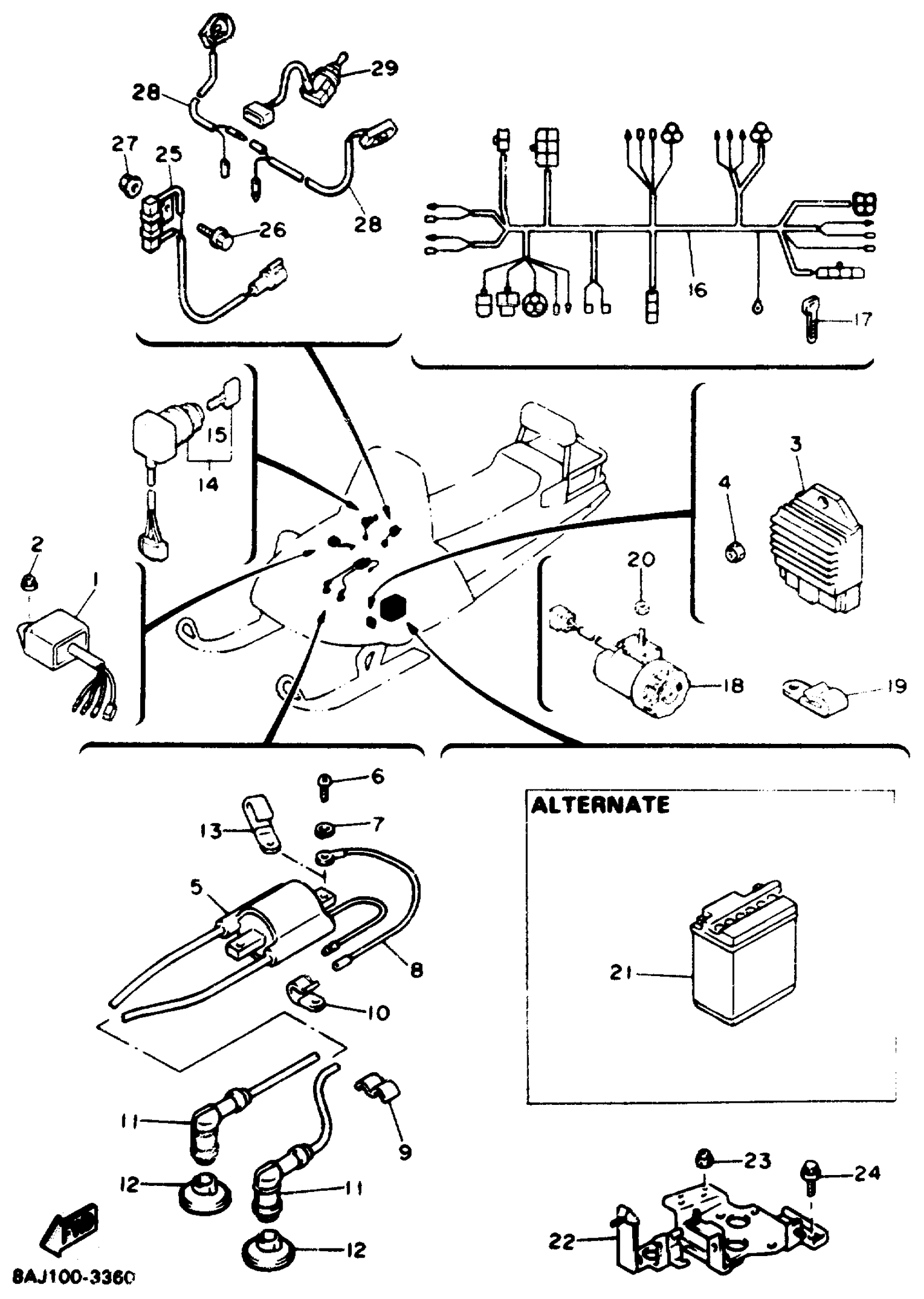

Yamaha ET410TRT (ENTICER II LT) 1993 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

89X-85540-00-00

Unavailable

2

NUT, FLANGE(4MV)

95707-06500-00

$1.23

3

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

4

NUT, NYLON

95707-06300-00

$3.50

5

IGNITION COIL ASSY

85T-82310-06-00

$79.99

6

SCREW PAN HEAD

98580-06020-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

9

CLAMP, CORD

861-82361-00-00

Unavailable

10

CLAMP

90465-08028-00

Unavailable

11

PLUG CAP ASSY

85G-82370-20-00

$34.99

12

SEAL

8G5-82372-00-00

$5.60

13

CLAMP(51Y)

90465-08277-00

Unavailable

14

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

15

CAP, KEY

526-82579-00-00

$7.99

16

WIRE HARNESS ASSEMBLY

89X-82590-10-00

Unavailable

17

BAND

341-26397-01-00

Unavailable

18

BUZZER

87L-83383-00-00

Unavailable

19

CLAMP(4MX)

90465-06376-00

Unavailable

20

NUT, U FLANGE

95604-06200-00

Unavailable

21

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

22

BRACKET, BATTERY

89X-2199G-00-00

Unavailable

23

NUT, U FLANGE

95604-06200-00

Unavailable

24

BOLT, FLANGE

95812-06010-00

Unavailable

25

RESISTOR ASSEMBLY

88T-85370-00-00

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

28

WIRE, SUB-LEAD

80X-82318-00-00

Unavailable

29

SWITCH

88H-82917-00-00

Unavailable
