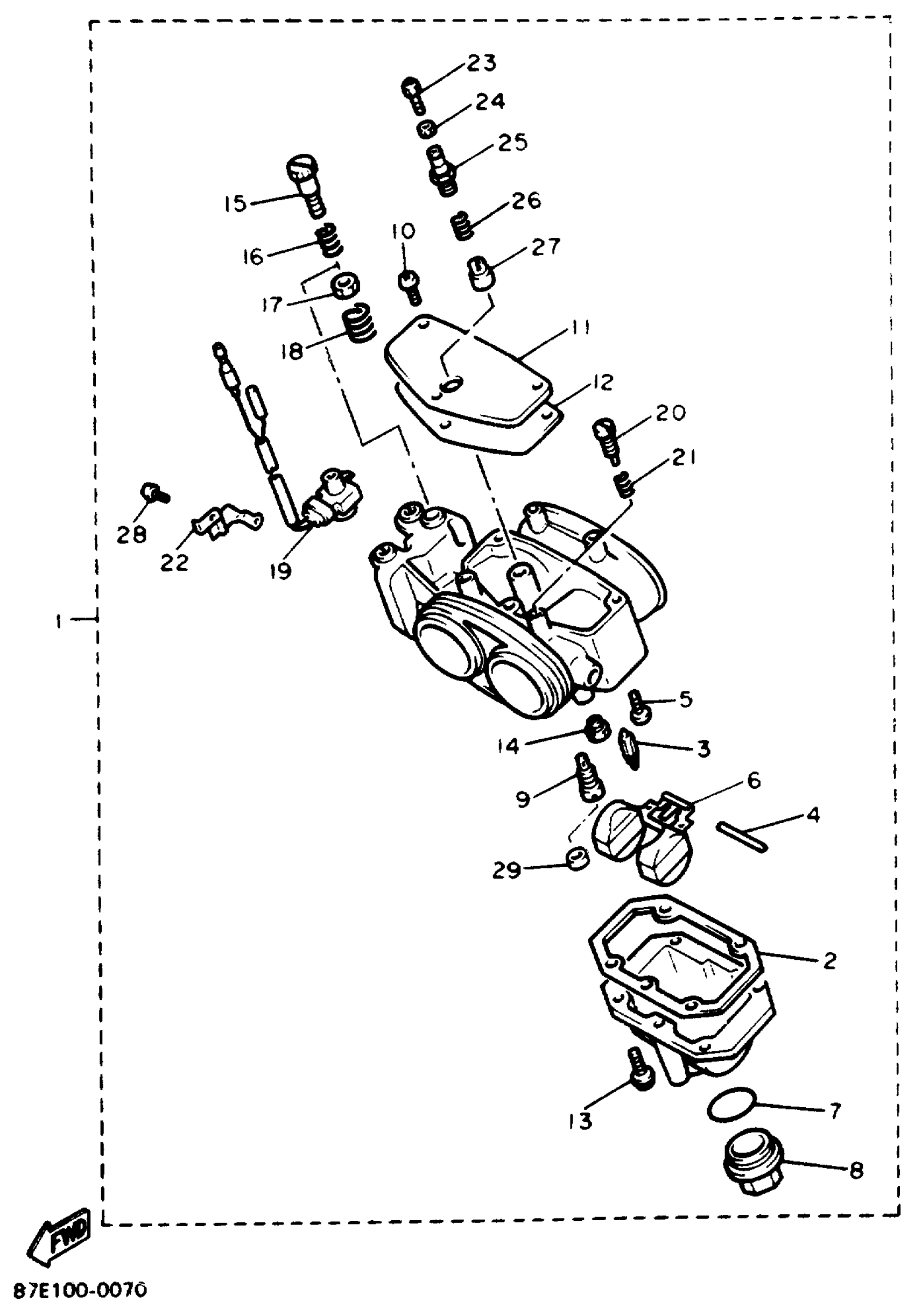

Yamaha ET410TRT (ENTICER II LT) 1993 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
89X-14301-00-00
Unavailable
2
GASKET, FLOAT CHBR
85L-14384-01-00
Unavailable
3
VALVE, NEEDLE
85L-14392-00-00
$44.99
4
. PIN, FLOAT
6E5-14386-01-00
Unavailable
5
SCREW, BIND(6L2)
98980-04006-00
Unavailable
6
. FLOAT
87D-14385-00-00
Unavailable
7
O-RING
85L-14147-00-00
$14.49
8
. PLUG, DRAIN
85L-14191-00-00
Unavailable
9
. JET, PILOT ( 78)
85L-14342-39-00
Unavailable
9
. JET, PILOT ( 80)
85L-14342-40-00
Unavailable
10
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
11
. COVER, MIXING
85L-14157-00-00
Unavailable
12
. WASHER
85L-14227-00-00
Unavailable
13
SCREW, PAN HEAD
98517-04016-00
$8.49
14
. JET, MAIN (148)
288-14329-74-00
Unavailable
14
JET, MAIN
288-14329-75-00
Unavailable
14
. JET, MAIN (154)
288-14329-77-00
Unavailable
14
JET,MAIN #156
288-14329-78-00
Unavailable
14
. JET, MAIN (158)
288-14329-79-00
Unavailable
14
. JET, MAIN (162)
288-14329-81-00
Unavailable
14
. JET, MAIN (164)
288-14329-82-00
Unavailable
14
. JET, MAIN (166)
288-14329-83-00
Unavailable
14
JET, MAIN #152
288-14343-76-00
Unavailable
14
JET, MAIN (# 160)
288-14343-80-00
Unavailable
15
. SCREW, THROTTLE
85L-14321-00-00
Unavailable
16
. SPRING, THROTTLE STOP
85L-14333-00-00
Unavailable
17
. NUT
85L-14358-00-00
Unavailable
18
. SPRING, THROTTLE STOP
85L-14133-00-00
Unavailable
19
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
20
. SCREW, AIR ADJUSTING
85L-14323-00-00
Unavailable
21
. SPRING, AIR ADJUSTING
85L-14334-00-00
Unavailable
22
. PLATE
85L-14146-00-00
Unavailable
23
. SCREW, CABLE ADJUSTING
288-14124-00-00
Unavailable
24
NUT, CABLE ADJUSTING
85L-14161-00-00
Unavailable
25
. CAP, PLUNGER
85L-14374-00-00
Unavailable
26
SPRING, PLUNGER
85L-14335-01-00
Unavailable
27
. PLUNGER, STARTER
87D-14371-00-00
Unavailable
28
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
29
PLUG
50M-14355-01-00
Unavailable
