Description

Price

1

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

2

ARMATURE ASSY

8Y3-81850-50-00

Unavailable

3

CLUTCH, OVER RUN

84N-81832-51-00

Unavailable

4

BRUSH 1

73A-81811-01-00

Unavailable

5

. GROMMET

73A-81829-50-00

Unavailable

6

. O-RING

73A-81847-00-00

Unavailable

7

NUT

4H7-81872-00-00

Unavailable

8

. GROMMET

73A-81829-00-00

Unavailable

9

BRUSH HOLDER ASSY

8L6-81840-51-00

$82.99

10

BRUSH 2

84N-81812-00-00

$13.49

11

SPRING, BRUSH

8L6-81813-50-00

Unavailable

12

O-RING

4H7-81844-00-00

Unavailable

13

RING

8L6-81834-50-00

$2.60

14

BOLT

84N-81826-00-00

$15.49

15

O-RING

8L6-81847-50-00

$3.28

16

SPRING, LEVER

8L6-81836-50-00

Unavailable

17

WASHER 1

4H7-81843-50-00

Unavailable

18

WASHER

8L6-81835-50-00

Unavailable

19

RING, STOP

8L6-81833-50-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

BOLT(6TC)

97027-08050-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

. WIRE HARNESS

89X-82105-00-00

Unavailable

25

NUT, NYLON

95717-08300-00

Unavailable

26

INDICAT0R 1

8V0-77741-20-00

Unavailable

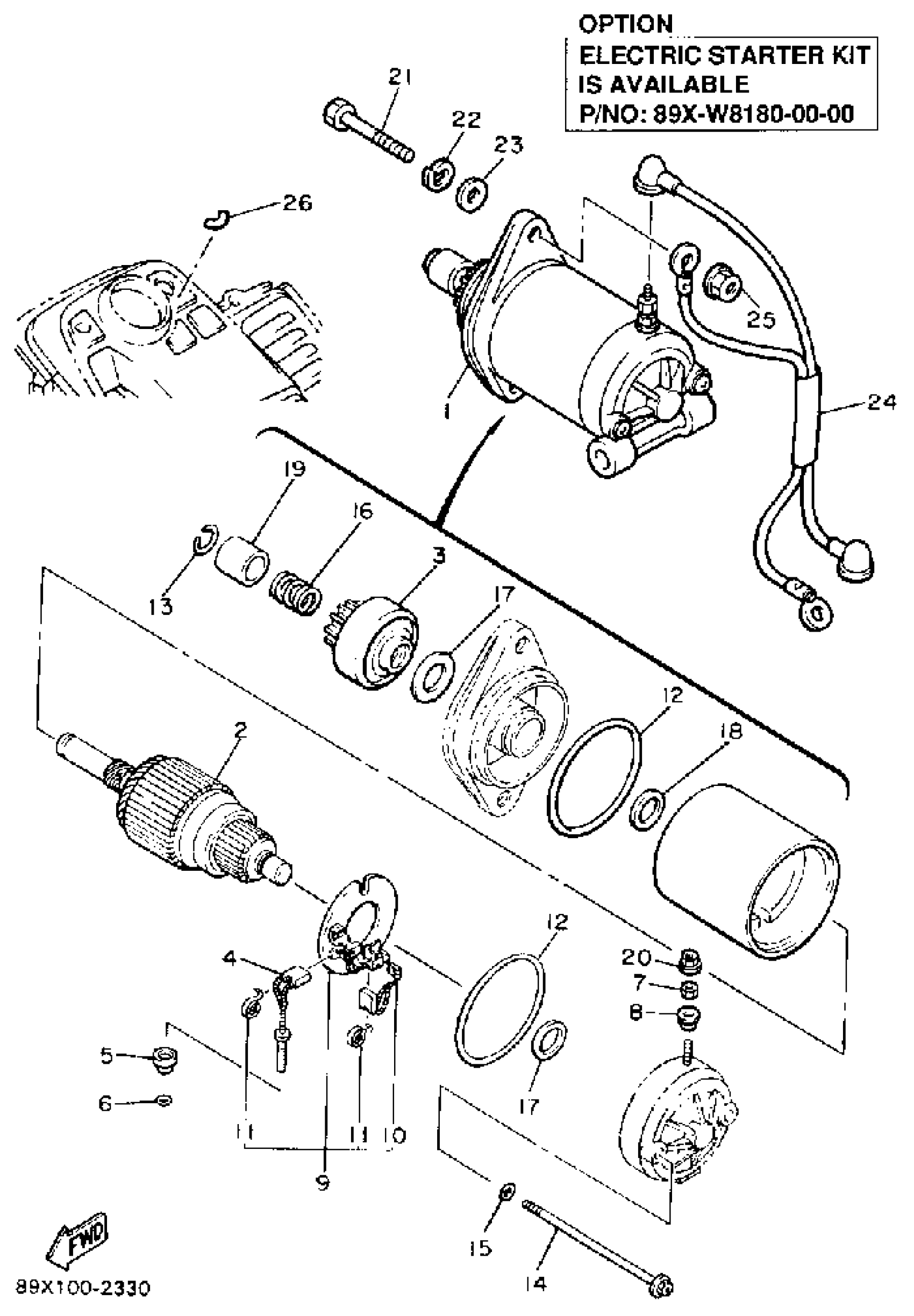

Yamaha ET410TRS (ENTICER II LT) 1992 STARTING MOTOR Diagram

STARTING MOTOR ASSY

ARMATURE ASSY

CLUTCH, OVER RUN

BRUSH 1

. GROMMET

. O-RING

NUT

. GROMMET

BRUSH HOLDER ASSY

BRUSH 2

SPRING, BRUSH

O-RING

RING

BOLT

O-RING

SPRING, LEVER

WASHER 1

WASHER

RING, STOP

NUT, HEXAGON

BOLT(6TC)

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

. WIRE HARNESS

NUT, NYLON

INDICAT0R 1
