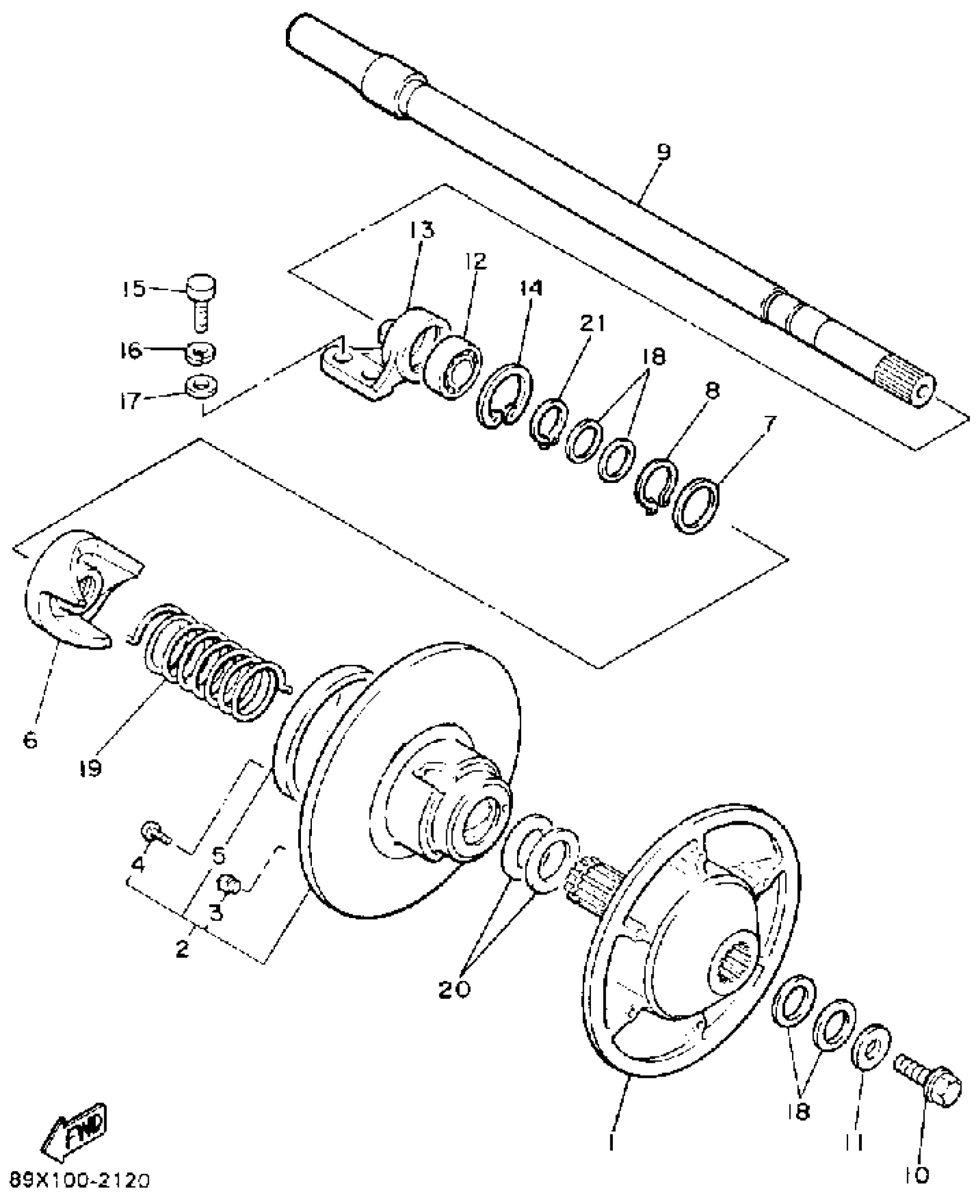

Yamaha ET410TRS (ENTICER II LT) 1992 SECONDARY SHEAVE Diagram

#

Description
Price

6

SEAT, SECONDARY SPRING

89N-17684-01-00

Unavailable

7

WASHER, CLAW(88R)

90214-29060-00

$5.53

8

CIRCLIP(86F)

93440-34170-00

$6.53

9

SHAFT, SECONDARY

89X-17680-00-00

Unavailable

10

BOLT, FLANGE

95817-10020-00

$6.08

11

WASHER, PLATE(42X)

90201-105H3-00

$5.41

12

BEARING(83R)

93306-20582-00

$47.04

13

HOUSING, BEARING

85L-47631-00-00

Unavailable

14

CIRCLIP(26H)

99009-52500-00

$10.23

15

BOLT,HEXAGON

97027-08022-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

17

.. WASHER, PLATE

92990-08600-00

$2.18

18

WASHER, PLATE (888)

90201-25527-00

$7.25

19

SPRING, TORSION (8U7)

90508-50571-00

$9.22

20

WASHER, PLATE (8U9)

90201-345G2-00

$10.20

21

CIRCLIP (256)

93410-25017-00

Unavailable
