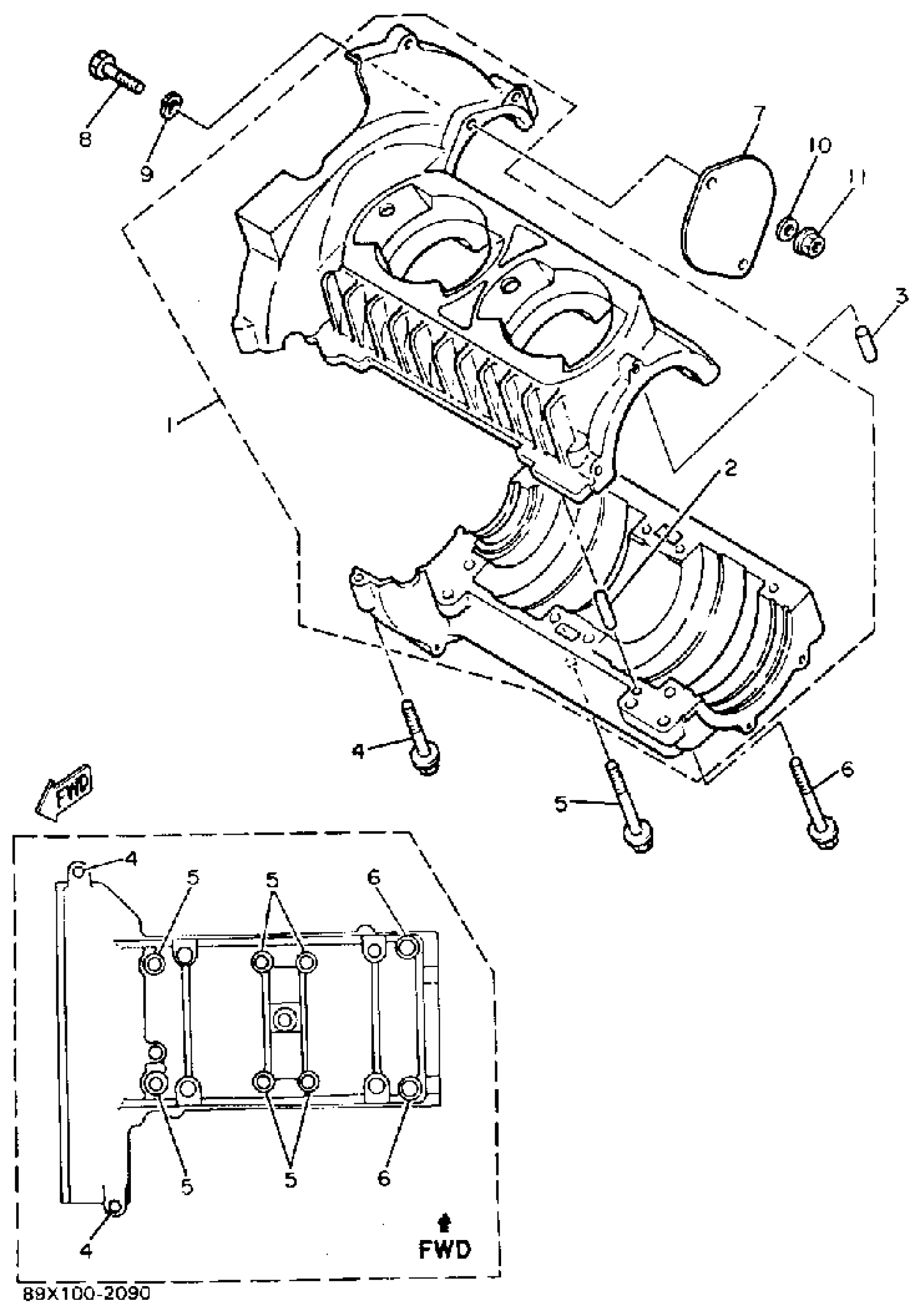

Yamaha ET410TRS (ENTICER II LT) 1992 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

89X-15100-00-00

Unavailable

2

PIN, DOWEL (8G8)

93605-10108-00

$5.71

3

PIN (2H7)

93603-10049-00

Unavailable

4

BOLT, FLANGE

95817-08040-00

$5.35

5

BOLT, FLANGE

95817-08060-00

$3.11

6

BOLT, FLANGE(JN5)

95817-08070-00

$2.74

7

PLATE

8K4-12633-00-00

Unavailable

8

BOLT

97017-08035-00

Unavailable

9

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

10

.. WASHER, PLATE

92990-08600-00

$2.18

11

NUT, FLANGE

95704-08500-00

$6.09
