- ET410TRF 8BY8 2001
TRACK SUSPENSION 1

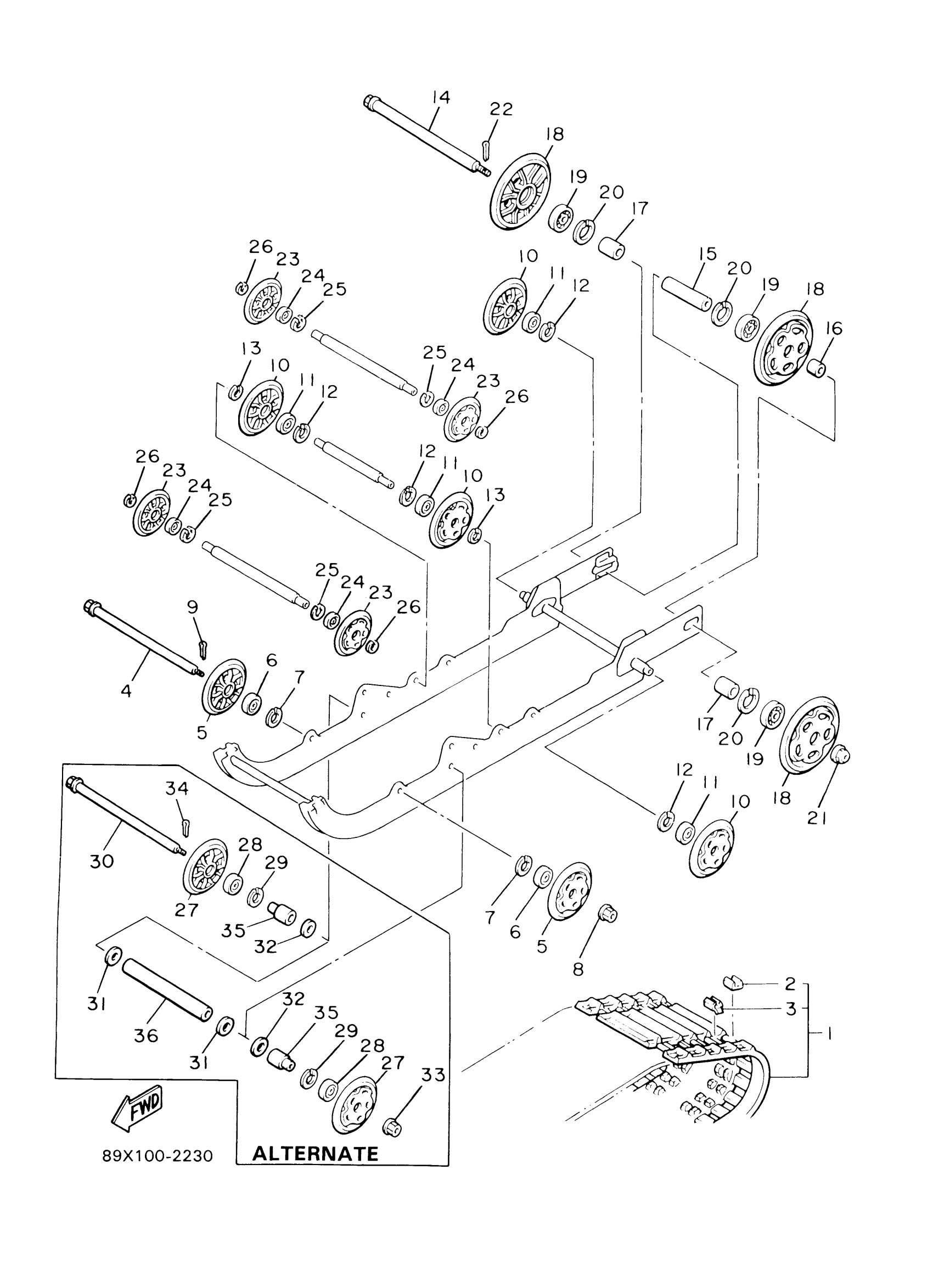

Yamaha ET410TRF 8BY8 2001 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASY
8BN-47110-10-00
Unavailable
2
PLATE, REINFORCEMENT
8CR-47113-00-00
$9.99
3
METAL, SLIDE
8CR-47115-00-00
$7.99
4
SHAFT 5 (80X-47487-00-00)
90891-50061-00
Unavailable
5
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
6
BEARING(8AB)
93306-00444-00
$41.99
7
CIRCLIP(5U8)
99009-42500-00
$8.49
8
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
9
PIN, COTTER
91401-30025-00
$8.49
10
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
11
BEARING(8AB)
93306-00444-00
$41.99
12
CIRCLIP(5U8)
99009-42500-00
$8.49
13
CIRCLIP(1AR)
99009-20400-00
$8.49
14
REAR AXLE COMP.
8L8-47520-02-00
$89.99
15
COLLAR
90387-202X4-00
Unavailable
16
COLLAR
90387-202X5-00
Unavailable
17
COLLAR(88Y)
90387-204X2-00
Unavailable
18
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
19
BEARING(8AE)
93306-20469-00
Unavailable
20
CIRCLIP(48Y)
99009-47500-00
Unavailable
21
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
22
PIN, COTTER
91401-30025-00
$8.49
23
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
24
BEARING(8AB)
93306-00444-00
$41.99
25
CIRCLIP(5U8)
99009-42500-00
$8.49
26
CIRCLIP(1AR)
99009-20400-00
$8.49
27
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
28
BEARING(8AB)
93306-00444-00
$41.99
29
CIRCLIP(5U8)
99009-42500-00
$8.49
30
SHAFT 5
82M-47487-00-00
Unavailable
31
WASHER, PLATE
90201-164P0-00
Unavailable
32
WASHER, PLATE(33Y)
90201-164H4-00
Unavailable
33
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
34
PIN, COTTER
91401-30025-00
$8.49
35
COLLAR
90387-166M8-00
Unavailable
36
COLLAR
90387-160M7-00
Unavailable
