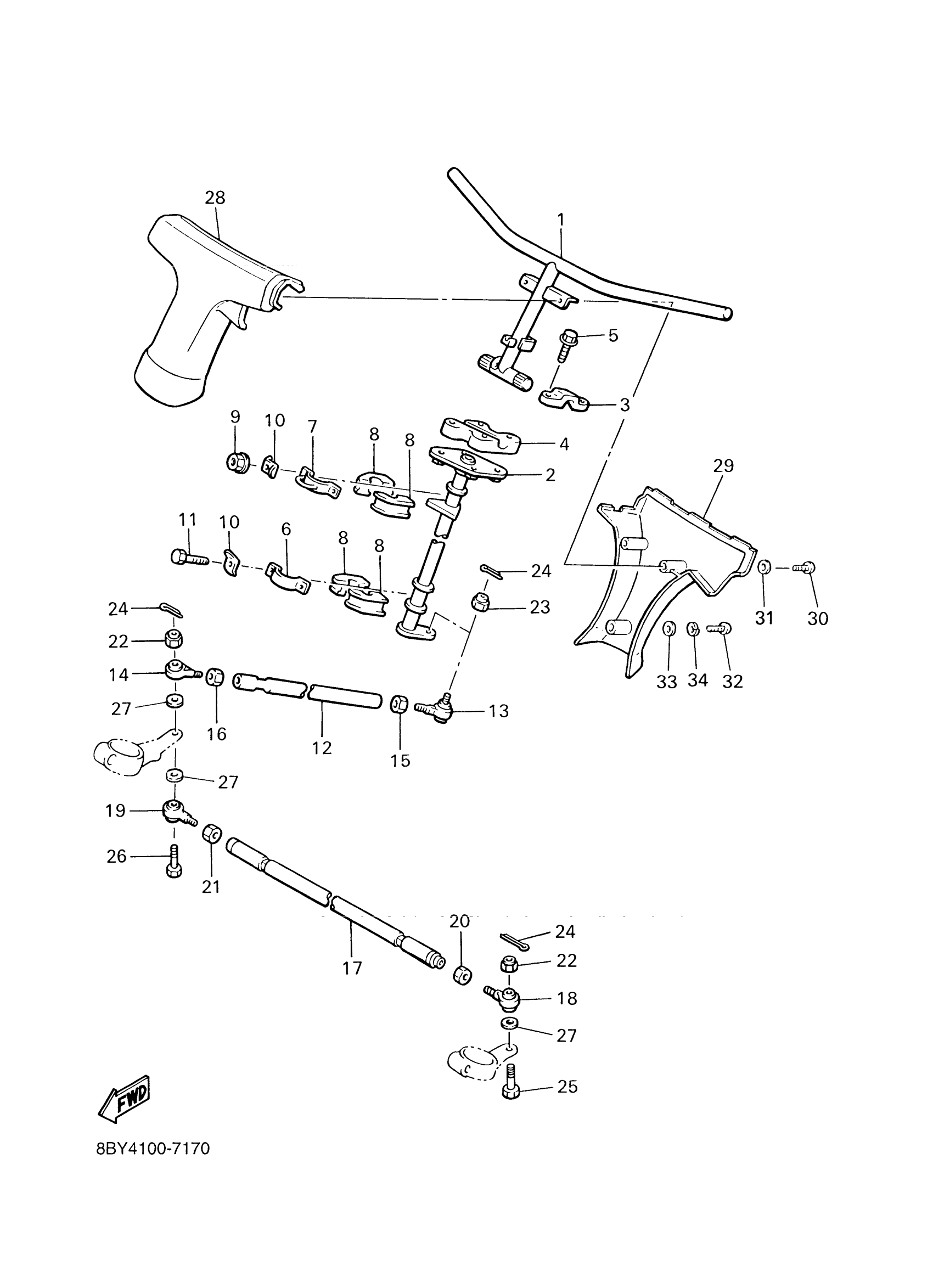

Yamaha ET410TRF 8BY8 2001 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

85N-23811-00-00

Unavailable

2

COLUMN, STEERING 2

89X-23813-01-00

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

HANDLE, HOLDER

164-23441-01-98

Unavailable

5

BOLT, FLANGE

95817-08055-00

$4.21

6

BRACKET, STEERING LOWER

84M-23868-00-00

Unavailable

7

HOLDER, BEARING

84M-23872-00-00

Unavailable

8

BEARING, STEERING

8F3-23812-00-00

Unavailable

9

NUT, NYLON

95717-08300-00

$2.70

10

WASHER, LOCK 1

8AC-23894-01-00

$4.78

11

BOLT, HEXAGON

97017-08020-00

$9.49

12

ROD,STEERING RELAY

87F-23821-00-00

Unavailable

13

JOINT, UNIVERSAL 1

86X-23841-00-00

$59.99

14

JOINT, UNIVERSAL 3

87S-23847-01-00

$50.99

15

NUT (3WP1)

95317-10700-00

$8.49

16

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

17

ROD,TIE

89X-23831-00-00

Unavailable

18

JOINT, UNIVERSAL 2

87S-23845-01-00

Unavailable

19

JOINT, UNIVERSAL 3

87S-23847-01-00

$50.99

20

NUT (3WP1)

95317-10700-00

$8.49

21

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

22

NUT, NYLON

95707-10300-00

Unavailable

23

NUT, SELF-LOCKING (8J8)

90185-10085-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

BOLT, PIN HOLE (8M6)

90102-10044-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD(85L)

90110-10173-00

Unavailable

27

WASHER PLATE (3L6)

90201-08759-00

Unavailable

28

PAD, STEERING

8W9-23815-00-00

Unavailable

29

PAD,STEERING

88E-23817-00-00

Unavailable

30

SCREW, PAN HEAD

98517-05030-00

Unavailable

31

WASHER(1RW)

92907-05600-00

Unavailable

32

GASKET, EXHAUST

98507-05008-00

Unavailable

33

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

34

WASHER(3SX)

92907-05100-00

Unavailable
