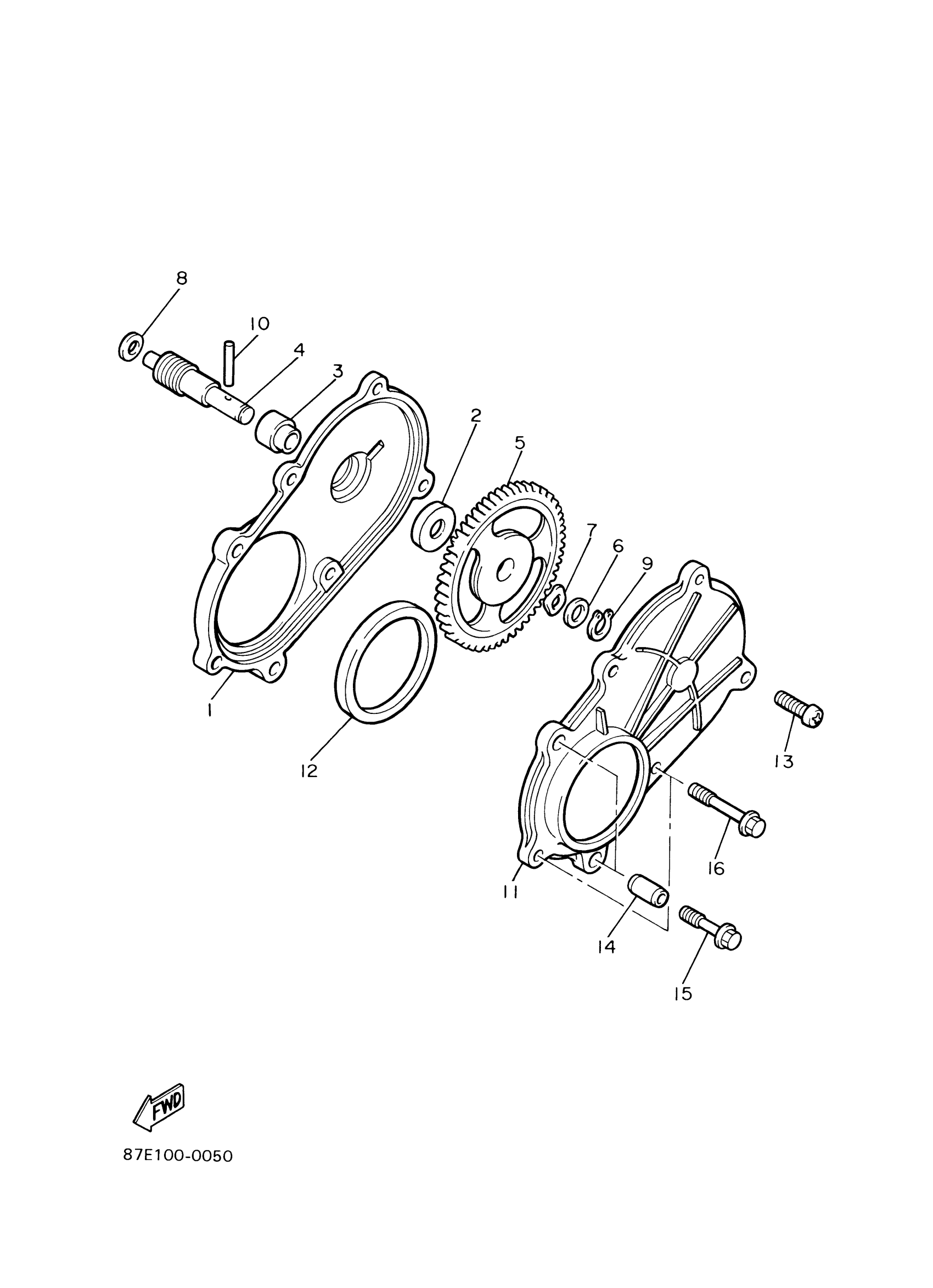

Yamaha ET410TRF 8BY8 2001 PUMP DRIVE GEAR Diagram

#

Description
Price

1

COVER, OIL PUMP

85L-15416-00-00

Unavailable

2

OIL SEAL (J10)

93101-10090-00

$8.49

3

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

4

SHAFT, WORM

85L-13175-00-00

Unavailable

5

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

6

PLATE, CAM THRUST

137-13148-00-00

Unavailable

7

WASHER, WAVE (137)

90206-11016-00

Unavailable

8

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

9

CIRCLIP(10W)

99009-10400-00

$4.73

10

PIN,DOWEL (137)

93603-22028-00

$3.76

11

COVER, OIL PUMP 2

85L-15426-02-00

Unavailable

12

OIL SEAL (8V0)

93104-52079-00

$14.99

13

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

14

PIN, DOWEL(8AH)

91808-22019-00

$9.49

15

BOLT, FLANGE

95817-06035-00

$7.49

16

BOLT, FLANGE

95817-06025-00

Unavailable
