Description

Price

1

ROTOR ASSY

85N-85550-00-00

Unavailable

2

BASE ASSY

8BE-85560-00-00

Unavailable

3

COIL, CHARGE

81L-85520-M0-00

Unavailable

4

COIL, LIGHTING 2

81L-81314-M0-00

Unavailable

5

COIL, LIGHTING 1

81L-81313-M0-00

$66.99

6

PULSER ASSY

8R4-85580-M0-00

Unavailable

7

SCREW, WITH WASHER(81E)

90159-05129-00

$2.34

8

SCREW, WITH WASHER(81E)

90159-05130-00

$1.11

9

SCREW, PAN HEAD

98517-04012-00

$3.88

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PAN HEAD(JG1)

98507-04008-00

$2.14

12

COLLAR (1T2)

90387-07598-00

$5.60

13

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

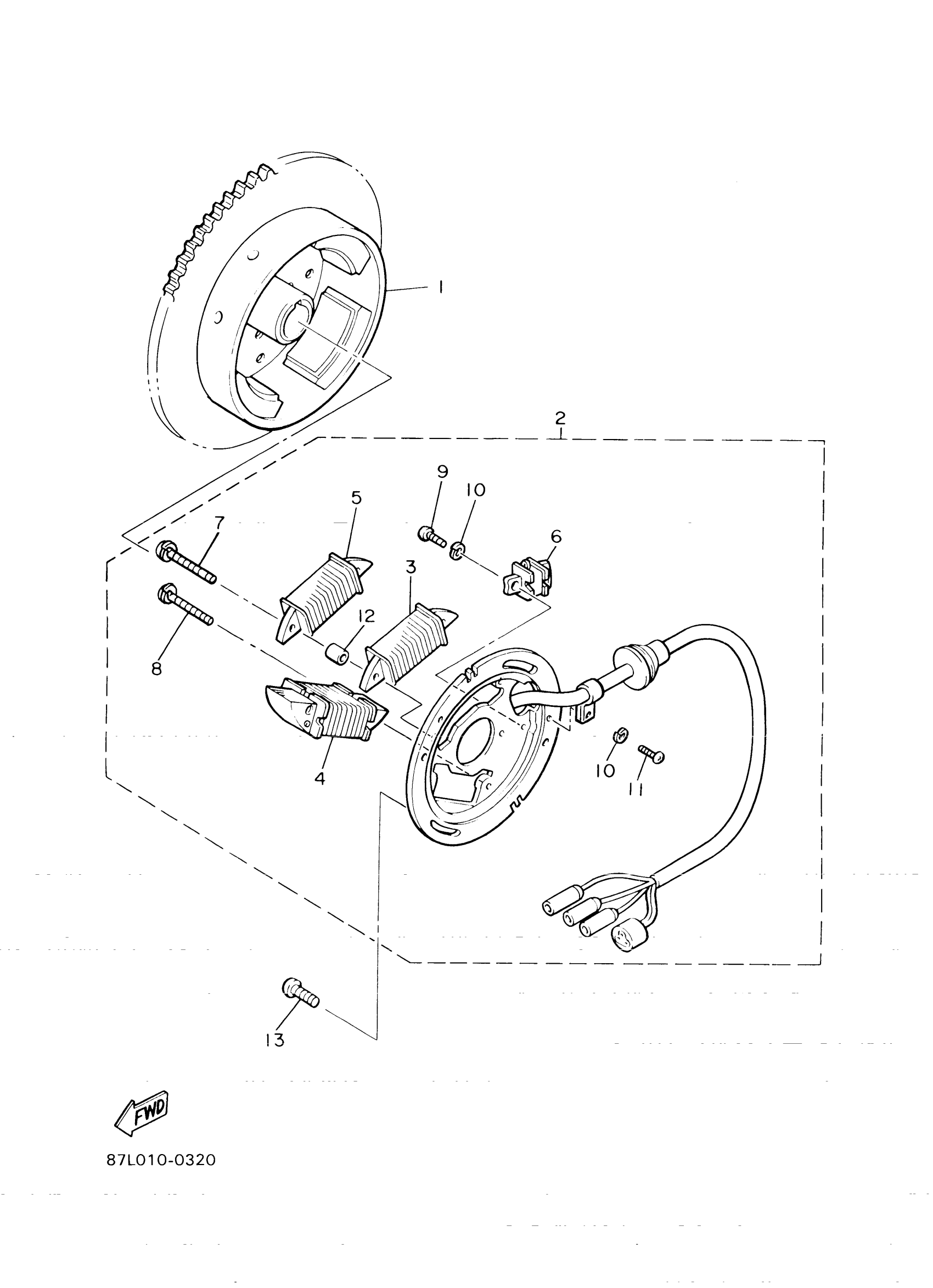

Yamaha ET410TRF 8BY8 2001 GENERATOR Diagram

ROTOR ASSY

BASE ASSY

COIL, CHARGE

COIL, LIGHTING 2

COIL, LIGHTING 1

PULSER ASSY

SCREW, WITH WASHER(81E)

SCREW, WITH WASHER(81E)

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD(JG1)

COLLAR (1T2)

SCREW, PAN HEAD(3TJ)
